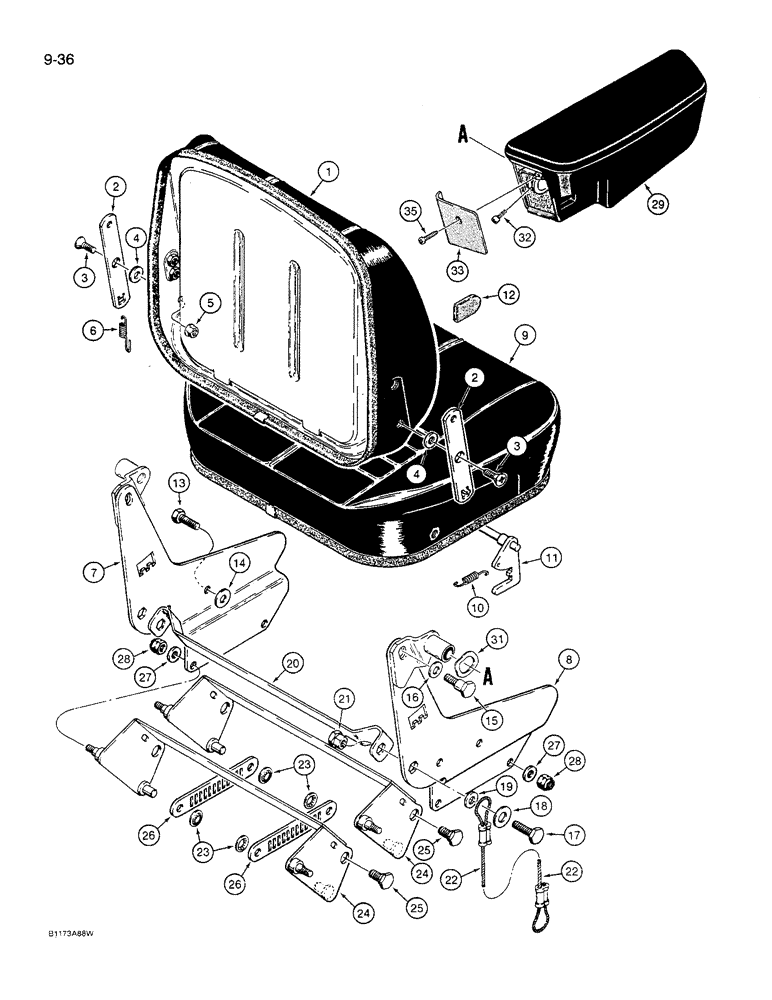

Запчасти Case 621 (9-36) - SUSPENSION SEATS (09) - CHASSIS/ATTACHMENTS

1954778C1

SEAT ASSY.

SEAT ASSEMBLY - suspension, vinyl, cab or canopy models, also includes parts on Figures 9-38 and 9-40

1шт.

97150C1

SEAT ASSY.

SEAT ASSEMBLY - suspension, cloth, cab models, also includes parts on Figures 9-38 and 9-40

1шт.

N9208

CUSHION ASSY.

CUSHION ASSEMBLY - seat back, vinyl, used with 1954778C1 seat assembly, Includes: Ref. 1 - 5

1шт.

N9203

CUSHION

ASSEMBLY - seat back, cloth, used with 97150C1 seat assembly, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - seat back

1шт.

2

N8679

LINK

- seat back

2шт.

3

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

- machine, flat head slotted, 3/8 NC x 1 inch

2шт.

4

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch

2шт.

5

131-1352

LOCK NUT,Flg, 3/8"-16

NUT - hex flange, self-locking, 3/8 inch NC

2шт.

6

N8680

SPRING

- seat back link

2шт.

7

NSS

NOT SOLD SEPARAT

BRACKET - seat, left-hand

1шт.

8

NSS

NOT SOLD SEPARAT

BRACKET - seat, right-hand

1шт.

9

N9202

CUSHION

- seat bottom, cloth

1шт.

9

N9207

CUSHION

- seat bottom, vinyl

1шт.

10

D82869

SPRING

- tilt shaft

2шт.

11

D82868

SHAFT

- seat tilt

1шт.

12

A47347

CAP

AND DECAL - tilt lever

1шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

14

A45110

WASHER

- special

2шт.

15

N14251

BOLT

- special, back tilt

2шт.

16

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

17

D82872

BOLT

- special

2шт.

18

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-1/32 x 3/32 inch

2шт.

19

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

20

D82871

BAR

- spacer

1шт.

21

D82873

SPECIAL NUT

- hex, special

2шт.

22

D82874

CABLE

- side brackets

2шт.

23

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

4шт.

24

N6857

LINK

BRACKET - tie

2шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

25

A45473

STEP BOLT

BOLT - special, tie bracket retaining

4шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

26

A47383

LINK

LEVER - adjusting

2шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

27

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch

4шт.

1977724C1

ARM

KIT - right-hand armrest, Includes Ref. 29, 31, 32, 33 and 35

1шт.

1977723C1

ARMREST ASSY.

KIT - left-hand armrest, Includes: Ref. 30, 31, 32, 34 and 35

1шт.

28

131-542

LOCK NUT,3/8"-16

NUT - light hex, self-locking, 3/8 inch NC

4шт.

29

N8536

ARMREST

- seat, right-hand

1шт.

Part of P/N 1977724C1 Right Hand Armrest Kit

1шт.

30

N8535

ARM

REST - seat, left-hand, not shown

1шт.

Part of P/N 1977723C1 Left Hand Armrest Kit

1шт.

31

A47352

WASHER

- wave, 1-1/8 inch ID

2шт.

Part of P/N 1977724C1 Right Hand Armrest Kit

1шт.

Part of P/N 1977723C1 Left Hand Armrest Kit

1шт.

32

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

Part of P/N 1977724C1 Right Hand Armrest Kit

1шт.

Part of P/N 1977723C1 Left Hand Armrest Kit

1шт.

33

A45584

COVER

PLATE - cover, right armrest

1шт.

Part of P/N 1977724C1 Right Hand Armrest Kit

1шт.

34

A45583

PLATE

- cover, left armrest, not shown

1шт.

Part of P/N 1977723C1 Left Hand Armrest Kit

1шт.

35

187-130

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW - self-tapping, flat slotted, No. 10-16 x 5/8 inch

2шт.

Part of P/N 1977724C1 Right Hand Armrest Kit

1шт.

Part of P/N 1977723C1 Left Hand Armrest Kit

1шт.

1977722C1

SUSPENSION BLOCK

KIT - seat suspension support, Includes: Ref. 24 - 26 on this figure and items on Figures 9-38 and 9-40

1шт.
