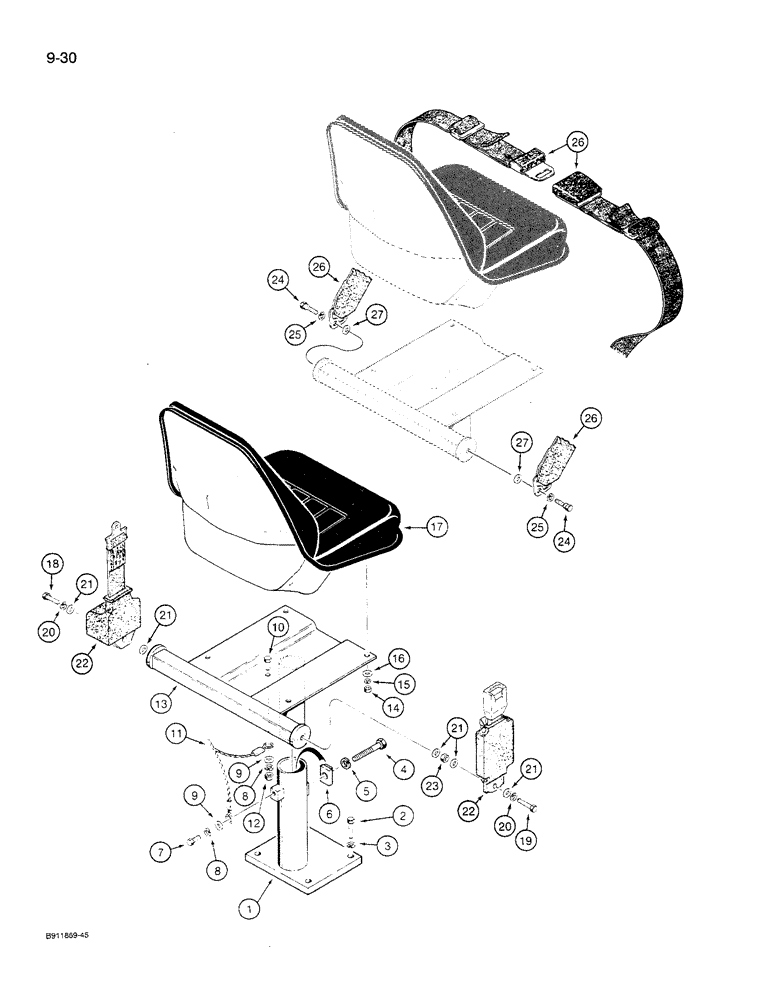

Запчасти Case 621 (9-30) - SEAT AND MOUNTING PARTS, STANDARD SEAT, SEAT MOUNTING (09) - CHASSIS/ATTACHMENTS

1

97395C1

SUPPORT

- seat, lower, mounting

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

seat mounting Hex, 3/8"-16 x 1 1/2", G5

4шт.

3

492-11038

LOCK WASHER,3/8"

seat mounting 3/8"

4шт.

4

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch, seat mounting

1шт.

5

492-21062

LOCK WASHER,5/8"

seat mounting 5/8"

1шт.

6

L59950

NUT

- special, seat mounting

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Seat mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

8

492-11038

LOCK WASHER,3/8"

seat mounting 3/8"

2шт.

9

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Seat mounting 3/8"

2шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Seat mounting

1шт.

11

L110228

CABLE

- galvanized steel, seat mounting

1шт.

12

425-106

NUT,3/8"-16, Cl 5

Seat mounting 3/8"-16, G5

1шт.

13

97394C2

SUPPORT

- seat, upper, seat mounting

1шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Seat mounting

4шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Seat mounting 5/16"

4шт.

16

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), Seat mounting 5/16"

4шт.

17

1971205C1

SEAT ASSY.

SEAT ASSEMBLY - standard, parts list Figure 9-34, mounting

1шт.

18

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

- hex, 7/16 NF x 1-1/4 inch, 2 inch (51 mm) wide retractable seat belt

1шт.

19

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch, 2 inch (51 mm) wide retractable seat belt

1шт.

20

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , 2 inch (51 mm) wide retractable seat belt 7/16"

2шт.

21

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x .083 inch, 2 inch (51 mm) wide retractable seat belt

5шт.

22

R58339

SAFETY BELT ,2.00" W

Retractable 2.00" W

1шт.

23

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF, 2 inch (51 mm) wide retractable seat belt

1шт.

18

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

- hex, 7/16 NF x 1-1/4 inch,3 inch (76 mm) wide retarctable seat belt

1шт.

19

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch, 3 inch (76 mm) wide retractable seat belt

1шт.

20

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , 3 inch (76 mm) wide retractable seat belt 7/16"

2шт.

21

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x .083 inch, 3 inch (76 mm) wide retractable seat belt

5шт.

22

R58418

SAFETY BELT ,3.00" W

Retractable, Optional 3.00" W

1шт.

23

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF, 3 inch (76 mm) wide retractable seat belt

1шт.

24

F42236

STEP BOLT

BOLT - shoulder, 7/16 NF X 1-1/4 inch, 3 inch (76 mm) wide non-retractable seat belt

2шт.

25

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , 3 inch (76 mm) wide no-retractable seat belt 7/16"

2шт.

26

D85816

SAFETY BELT

BELT - seat, non-retractable, 3 inch (76 mm) wide, optional, 3 inch (76 mm) wide non-retractable seat belt

1шт.

27

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch, 3 inch (76 mm) wide non-retractable seat belt

2шт.
