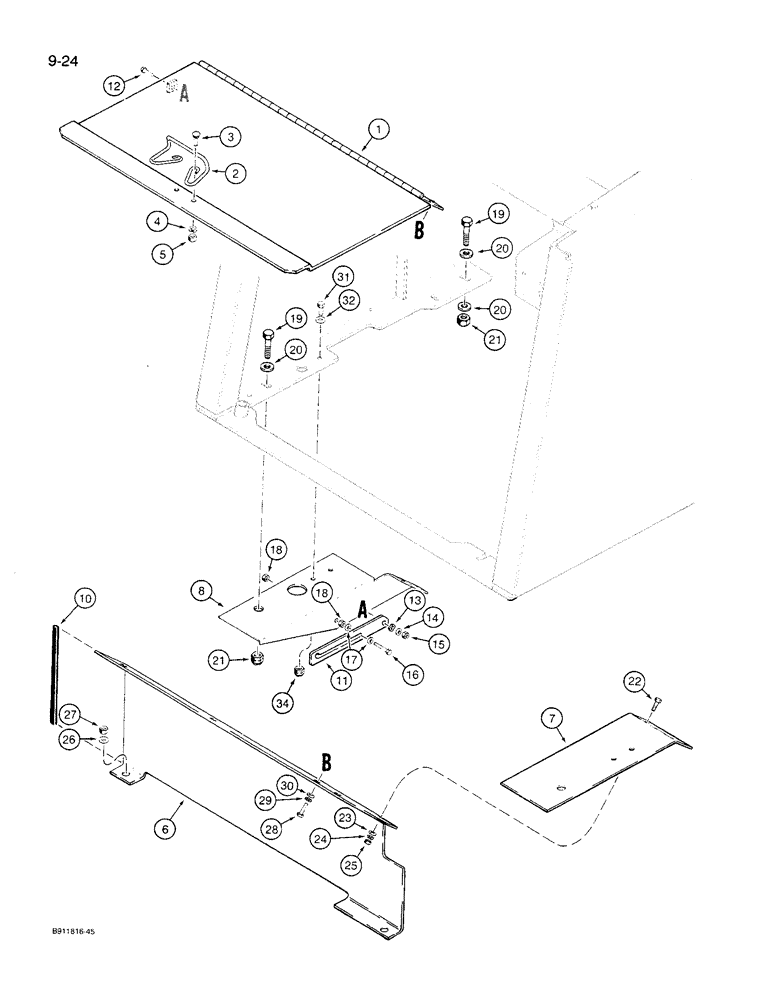

Запчасти Case 621 (9-24) - BATTERY COMPARTMENT COVERS (09) - CHASSIS/ATTACHMENTS

1

L127331

COVER ASSY

COVER - battery compartment

1шт.

2

L125636

HANDLE

- cover

1шт.

3

11-310

CARRIAGE BOLT,Short NK, 3/16"-24 x 5/8", G2, Full Thd

BOLT - carriage, No. 10 NC x 5/8 inch

2шт.

4

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

5

225-14110

NUT,#10-24

2шт.

6

L128101

BAFFLE ASSY.

BAFFLE - battery compartment

1шт.

7

L128192

PLATE

- support, cover, right-hand

1шт.

8

L128172

PLATE

- support, cover, left-hand

1шт.

10

L127454

LINING

TRIM - edge, 8-5/8 inch (220 mm) long, left-hand, cut from F64277 trim, see below

1шт.

11

L125491

LARGE PLATE

BRACKET - cover support

1шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

13

S69662

WASHER

- flat, special

1шт.

14

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

15

231-1445

NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC

1шт.

16

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

18

329-105

NUT,5/16"-18, G8

2шт.

19

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

20

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

8шт.

21

131-64

LOCK NUT,5/8"-11, GC

NUT - light hex, self-locking, 5/8 inch NC

4шт.

22

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

23

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

24

492-11038

LOCK WASHER,3/8"

2шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

27

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

2шт.

28

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

29

492-11038

LOCK WASHER,3/8"

3шт.

30

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

3шт.

31

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch, if used

2шт.

32

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), If used 5/16"

2шт.

34

231-1445

NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC, if used

2шт.

F64277

SEAL

TRIM - edge, 570 inch (14478 mm) long, use to make item 10

1шт.
