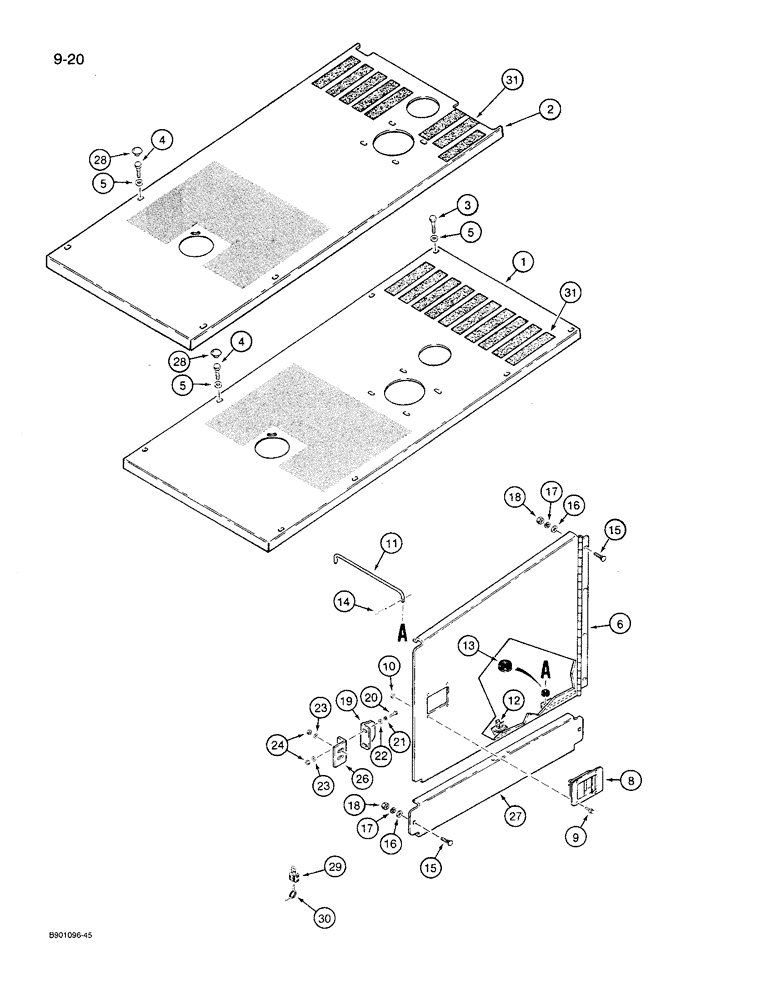

Запчасти Case 621 (9-20) - HOOD AND SIDE DOORS (09) - CHASSIS/ATTACHMENTS

1

L128266

TOP

HOOD - engine top, with perforations, models without air conditioning

1шт.

2

L128268

HOOD ASSY.

HOOD - engine top, with perforations, models with air conditioning

1шт.

3

113-2262

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - hex, 3/8 NC x 1-1/2 inch, full thread, models without air conditioning

2шт.

4

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

4-6шт.

5

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

4-8шт.

6

L127685

DOOR

- hood side, right-hand

1шт.

7

L127686

DOOR

- hood side, left-hand, not shown

1шт.

8

R56221

LATCH

HANDLE - door latching

2шт.

9

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

8шт.

10

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

8шт.

11

L128467

ROD

- door, open latching

2шт.

12

L128879

CLIP,ELECTRICAL

CLIP - rod stowage

2шт.

13

A75994

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

- rod pivot

2шт.

14

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

15

33-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT - carriage, 3/8 NC x 1-1/4 inch

12шт.

16

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

12шт.

17

492-11038

LOCK WASHER,3/8"

12шт.

18

425-106

NUT,3/8"-16, Cl 5

12шт.

19

L127958

LARGE PLATE

CATCH - lever, door

2шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

23

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

24

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

4шт.

26

L127957

SUPPORT

BRACKET - catch

2шт.

27

L128574

COVER

PANEL - lower

2шт.

28

353-413

PLUG,Dome, 1.187" hole, Nylon

- nylon, 1-3/16 inch

4-8шт.

29

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 30

2шт.

30

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

30

R29555

KEY

- for Master padlock only, if used

2шт.

31

D55216

PAD,2" x 9"

PAD - non-skid, upper hood, front

8-10шт.
