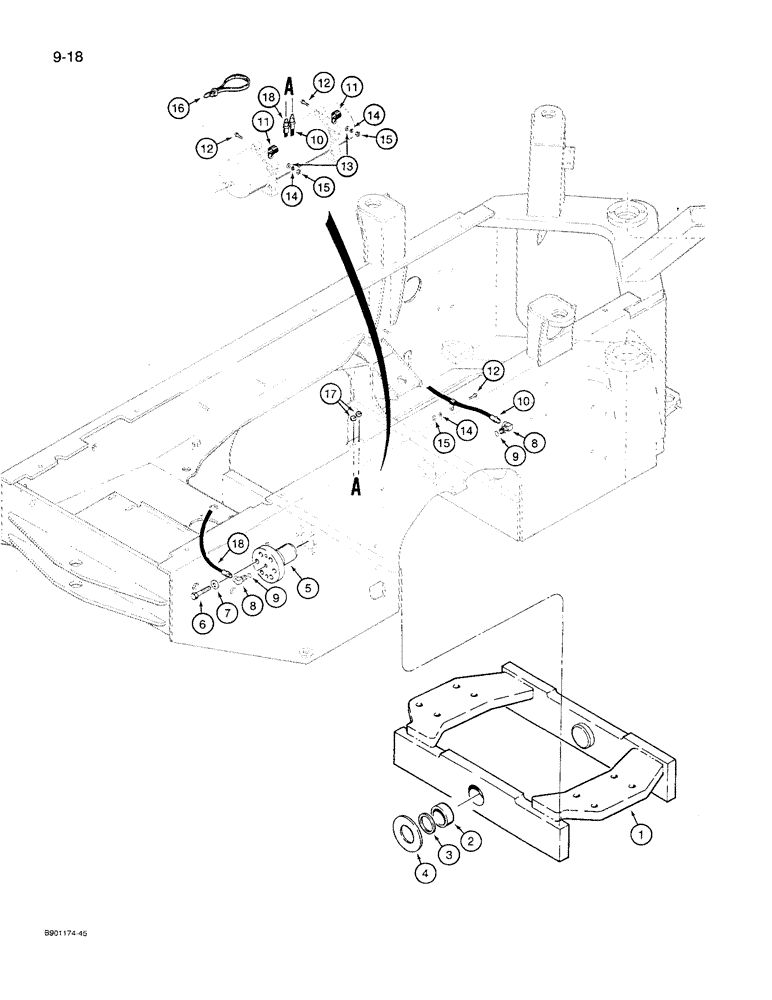

Запчасти Case 621 (9-18) - TRUNNION AND LUBRICATION LINES (09) - CHASSIS/ATTACHMENTS

L127243

LINKAGE YOKE

TRUNNION ASSEMBLY - rear frame

1шт.

1

NSS

NOT SOLD SEPARAT

TRUNNION - rear frame

1шт.

2

L109938

BUSHING,70.18mm ID x 82.69mm OD x 41mm L

- trunnion

2шт.

3

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

WIPER - trunnion pin

2шт.

4

L110183

SHIM,3.18mm Thk

1шт.

4

L110184

SHIM,4.76mm Thk

1шт.

5

L119222

AXLE PIN

PIN - trunnion

2шт.

6

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

12шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, hardened

12шт.

8

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

- 90 deg, 7/16-20 adj O-ring boss x 1/8 inch female PT, Includes: Ref. 9

2шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

10

L72667

HOSE

- 1524 mm long, lubrication, front trunnion

1шт.

11

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- P-type, front lubrication hose to front trunnion bar

3шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

13

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

17

F53473

LOCK NUT,1/8-27 NPSM

- special

2шт.

18

L54694

HOSE,4.8mm ID x 1041mm L

- 1041 mm long, lubrication, rear trunnion

1шт.
