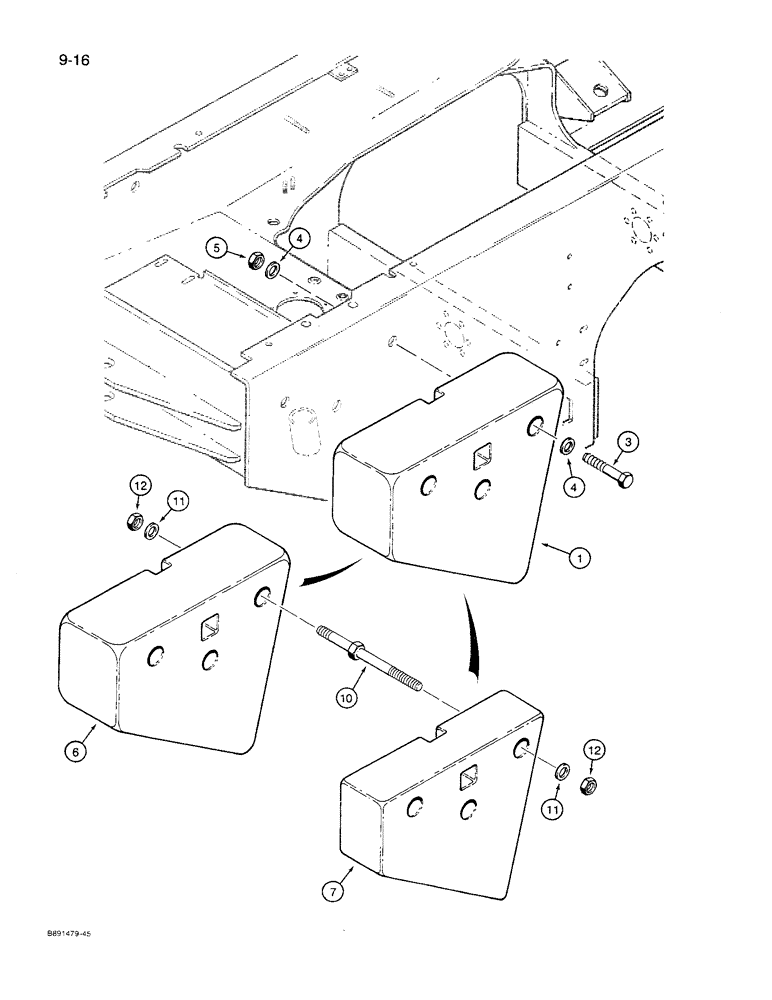

Запчасти Case 621 (9-16) - COUNTERWEIGHTS, 1500 POUND TOTAL WEIGHT (09) - CHASSIS/ATTACHMENTS

1

L127841

WEIGHT

COUNTERWEIGHT - 750 pound, right-hand rear, 1500 pound total weight

1шт.

2

L127842

WEIGHT

COUNTERWEIGHT - 750 pound, left-hand rear, not shown, 1500 pound total weight

1шт.

3

413-1680

BOLT,Hex, 1" - 8 x 5", Gr 5

- hex, 1 NC x 5 inch, 1500 pound total weight

6шт.

4

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, hardened, special, 1500 pound total weight

12шт.

5

425-1016

NUT,1"-8, G5

- hex, 1 inch NC, 1500 pound total weight

6шт.

6

L127841

WEIGHT

COUNTERWEIGHT - 750 pound, right-hand rear, 2500 pound total weight

1шт.

7

L125468

BALANCER

COUNTERWEIGHT - 500 pound, right-hand rear, 2500 popund total weight

1шт.

8

L127842

WEIGHT

COUNTERWEIGHT - 750 pound, left-hand rear, not shown, 2500 pound total weight

1шт.

9

L125469

BALANCER

COUNTERWEIGHT - 500 pound, left-hand rear, not shown, 2500 pound total weight

1шт.

10

L129903

STUD

BOLT - special, counterweight mounting, 2500 pound total weight

6шт.

11

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, hardened, special, 2500 pound total weight

12шт.

12

425-1016

NUT,1"-8, G5

- hex, 1 inch NC, 2500 pound total weight

6шт.
