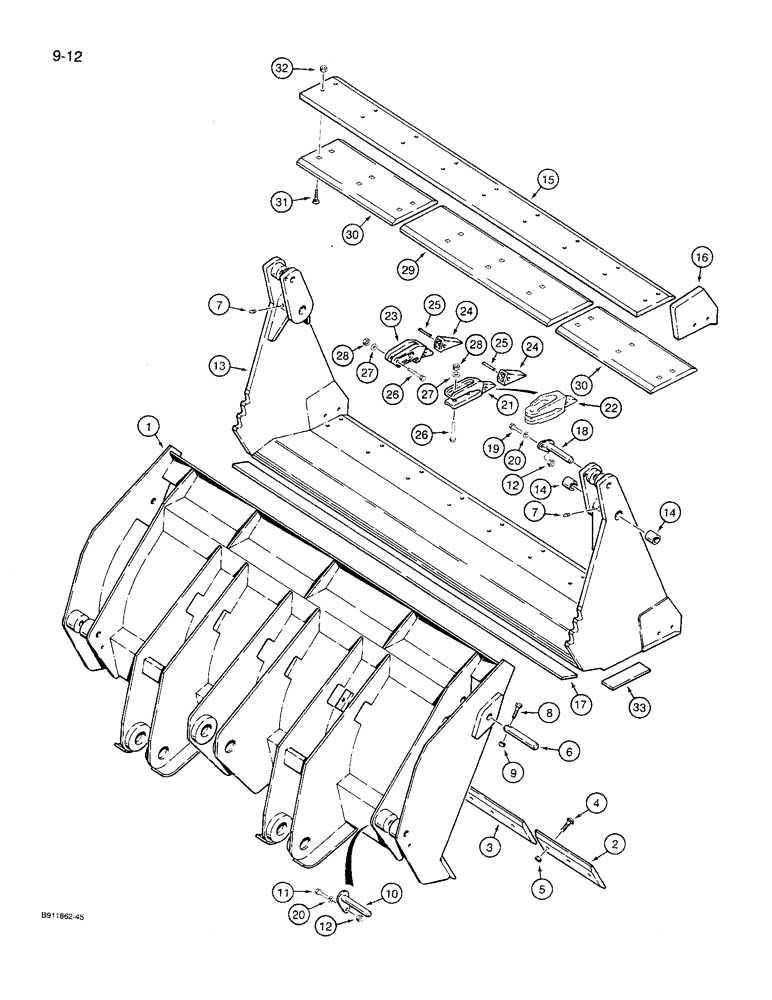

Запчасти Case 621 (9-12) - AUXILIARY BUCKET (09) - CHASSIS/ATTACHMENTS

L128263

KIT

BUCKET ASSEMBLY - clam, 2 cubic yard (1.5 cubic meter), machinery item, order from Machinery Price List, bucket assembly also includes Ref. 1 -14 on Figure 8-16, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

2

S301632

END

EDGE - cutting, outer (20" Long)

2шт.

3

S300144

EDGE, CUTTING

EDGE - cutting, center

1шт.

4

118-509

PLOW BOLT,3/4"-10 x 2", G8

BOLT - plow, 3/4 NC x 2 inch, grade 8

16шт.

5

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

16шт.

6

S300141

PIVOT PIN

PIN, PIVOT -, Serial Range: Clam-blade

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

8

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

9

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

10

S300143

PIN

- Cylinder mounting, lower

2шт.

11

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

13

181808A1

CLAW

CLAM - bucket (Replaced S301972)

1шт.

14

S300154

BUSHING

- clam

4шт.

15

S301972

EDGE

- cutting, clam, weld on, front

1шт.

16

S300157

EDGE, CUTTING

BRACE - corner

2шт.

17

S301633

LARGE PLATE

PLATE - compaction, rear

1шт.

18

S301631

PIN

- cylinder mounting, upper

2шт.

19

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

L117816

TOOTH

ASSEMBLY - bucket, center, forged shank, no longer available, order L129666 tooth assembly, Includes: Ref. 21, 24 & 25

7шт.

L129666

TOOTH

ASSEMBLY - bucket, center, cast shank, Includes: Ref. 22, 24 & 25

7шт.

L126938

TOOTH

ASSEMBLY - bucket, corner, Includes: Ref. 23 - 25

2шт.

21

NSS

NOT SOLD SEPARAT

TOOTH - bucket, center, L117816 tooth assembly

1шт.

22

NSS

NOT SOLD SEPARAT

TOOTH - bucket, center, L129666 tooth assembly

1шт.

23

NSS

NOT SOLD SEPARAT

TOOTH - bucket, corner, L126938 tooth assembly

1шт.

24

D55468

TOOTH

- tooth

1шт.

25

L32090

PIN

PIN - flex, point retaining

1шт.

26

26-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

- hex, 3/4 NC x 3-3/4 inch, grade 8, used with L117816

18шт.

26

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

- hex, 3/4 NC x 3-1/2 inch, grade 8, used with L129666

18шт.

27

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened

18шт.

28

25-1612

NUT,3/4"-10, G5, Hvy

- hex, 3/4 inch NC, heavy duty

18шт.

29

L128264

EDGE

- cutting, center, bolt-on, clam, if used

1шт.

30

L128265

END

EDGE - cutting, corner, bolt-on, clam, if used

2шт.

31

L127054

PLOW BOLT,#3, Dome Hd, 3/4" - 10 x 3", Gr 8

BOLT - plow, dome head, special, if used

18шт.

32

129-572

NUT,3/4"-10, G8

If used 3/4"-10, G8

18шт.

33

L128303

LARGE PLATE

PLATE - skid, if used

4шт.
