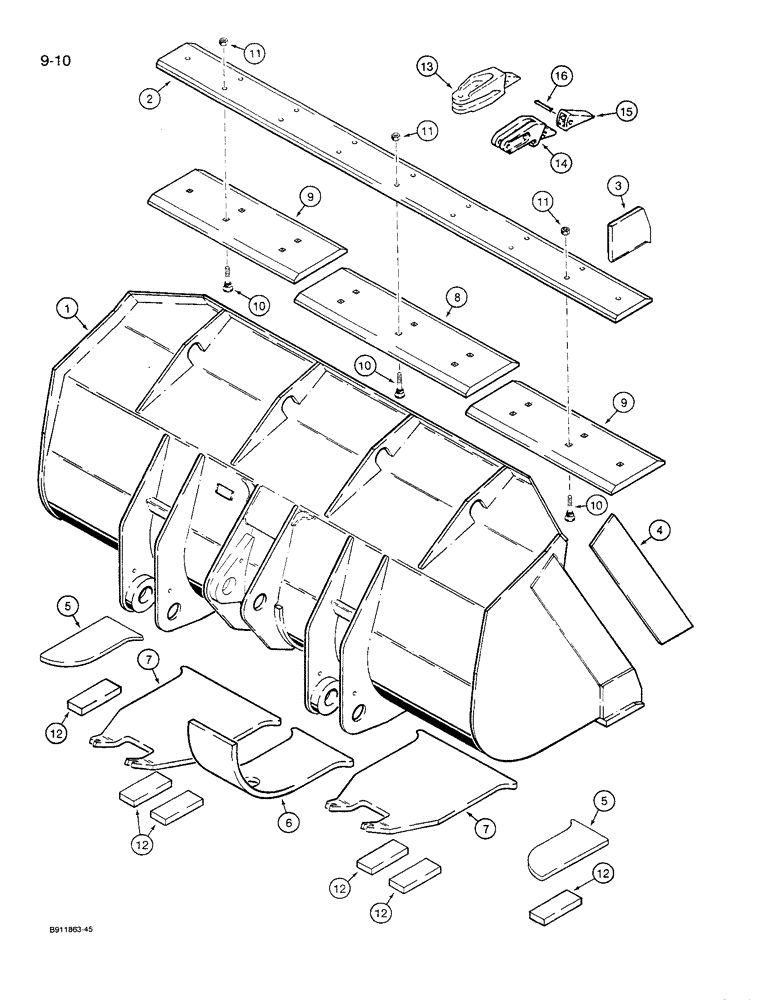

Запчасти Case 621 (9-10[A]) - LOADER BUCKET AND CUTTING EDGE, 2.50 CUBIC YARD, (1.9 CUBIC METER) BUCKET (09) - CHASSIS/ATTACHMENTS

L127460

BUCKET

ASSEMBLY - loader, machinery item, order from Machinery Price List, 2.50 cubic yard (1.9 cubic metre) bucket

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 2.50cubic yard (1.9 cubic metre) bucket

1шт.

2

L127427

EDGE, CUTTING

EDGE - cutting, bucket, weld on, 2.50 cubic yard (1.9 cubic metre) bucket

1шт.

3

L126115

EDGE, CUTTING

EDGE - cutting, bucket corner, weld on, 2.50 cubic yard (1.9 cubic metre) bucket

2шт.

4

L127472

EDGE, CUTTING

EDGE - cutting, bucket side, weld on, 2.50 cubic yard (1.9 cubic metre) bucket

2шт.

5

L127468

LARGE PLATE

PLATE - wear, outer, 2.50 cubic yard (1.9 cubic metre) bucket

2шт.

6

L127470

STIFFENER

PLATE - wear, center, 2.50 cubic yard (1.9 cubic metre) bucket

1шт.

7

L127469

LARGE PLATE

PLATE - wear, bucket ear, 2.50 cubic yard ( (1.9 cubic metre) bucket

2шт.

8

L127038

EDGE, CUTTING

EDGE - cutting, center, bolt on, bolt on cutting edge

1шт.

9

L127429

EDGE, CUTTING

EDGE - cutting, end, bolt on, bolt on cutting edge

2шт.

10

L127054

PLOW BOLT,#3, Dome Hd, 3/4" - 10 x 3", Gr 8

BOLT - plow, 3/4 NC x 3 inch, grade 8, bolt on cutting edge

16шт.

11

129-572

NUT,3/4"-10, G8

Bolt on cutting edge 3/4"-10, G8

16шт.

12

L128081

LARGE PLATE

PLATE - wear, bolt on cutting edge

6шт.
