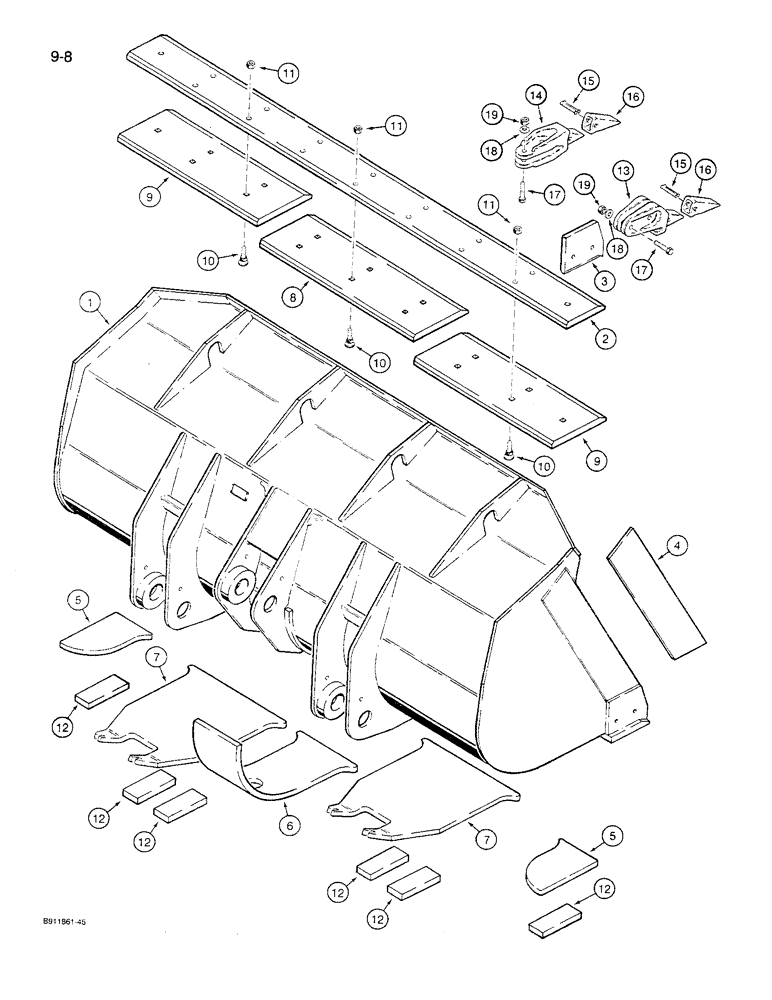

Запчасти Case 621 (9-08[B]) - LOADER BUCKET AND CUTTING EDGE, 2.25 CUBIC YARD, (1.7 CUBIC METER) BUCKET (09) - CHASSIS/ATTACHMENTS

L127364

BUCKET

ASSEMBLY - loader, 100 inch wide, machinery item, order from Machinery Price List 2.25 cubic yard (1.7 cubic metre)

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 2.25 cubic yard ( 1.7 cubic metre)

1шт.

2

L127359

EDGE, CUTTING

EDGE - cutting, bucket, weld on (.992 Thick), 2.25 cubic yard (1.7 cubic metre)

1шт.

3

L127242

EDGE, CUTTING

EDGE - cutting, bucket corner, weld on (.984 Thick), 2.25 cubic yard (1.7 cubic metre)

2шт.

4

L118957

EDGE, CUTTING

EDGE - cutting, bucket side, weld on (.472 Thick), 2.25 cubic yard (1.7 cubic metre)

2шт.

5

L127468

LARGE PLATE

PLATE - wear, outer, 2.25 cubic yard (1.7 cubic metre) bucket

2шт.

6

L119328

STIFFENER

PLATE - wear, center, 2.25 cubic yard (1.7 cubic metre) bucket

1шт.

7

L119327

STIFFENER

PLATE - wear, bucket ear, 2.25 cubic yard (1.7 cubic metre)

2шт.

8

L127366

EDGE, CUTTING

EDGE - cutting, center, bolt on

1шт.

9

L127367

EDGE, CUTTING

EDGE - cutting, end, bolt on

2шт.

10

R56474

PLOW BOLT

BOLT - special, cutting edge

16шт.

11

129-572

NUT,3/4"-10, G8

Bolt on cutting edge 3/4"-10, G8

16шт.

12

L128303

LARGE PLATE

PLATE - wear, bolt on cutting edge

6шт.

L126897

TOOTH

ASSEMBLY - bucket, corner

2шт.

R54275

TOOTH

ASSEMBLY - bucket, center

7шт.

13

NSS

NOT SOLD SEPARAT

TOOTH - bucket, corner

1шт.

14

NSS

NOT SOLD SEPARAT

TOOTH - bucket, center

1шт.

15

D39448

PIN

- flex, point retaining

1шт.

16

L55608

POINT

- tooth, bucket

1шт.

17

26-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

- hex, 3/4 NC x 3-1/4 inch, grade 8, bucket teeth

18шт.

18

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened, bucket teeth

18шт.

19

25-1612

NUT,3/4"-10, G5, Hvy

- hex, 3/4 inch NC, heavy duty, bucket teeth

18шт.
