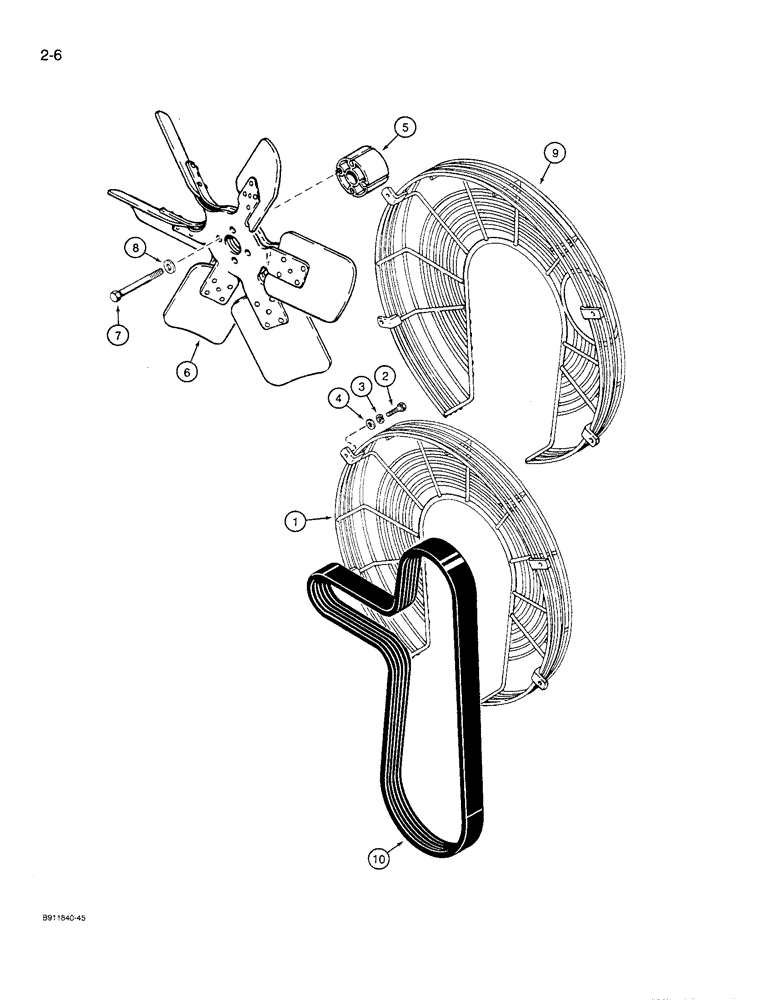

Запчасти Case 621 (2-06) - FAN AND FAN BELTS (02) - ENGINE

1

L127678

SIEVE

GUARD - fan, use on models without air conditioning

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 25 mm

4шт.

3

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

5

A184524

SPACER

- fan

1шт.

6

A189402

FAN

- pusher

1шт.

7

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

- hex, 10 - 1.5 x 110 mm

4шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

9

L127463

GUARD

- fan, use on models with air conditioning

1шт.

10

J911566

V-BELT,27.92mm W x 1612.9mm L, 8 Ribs

Fan 3.56 mm W x 1612.90 mm L, 8 Ribs

1шт.
