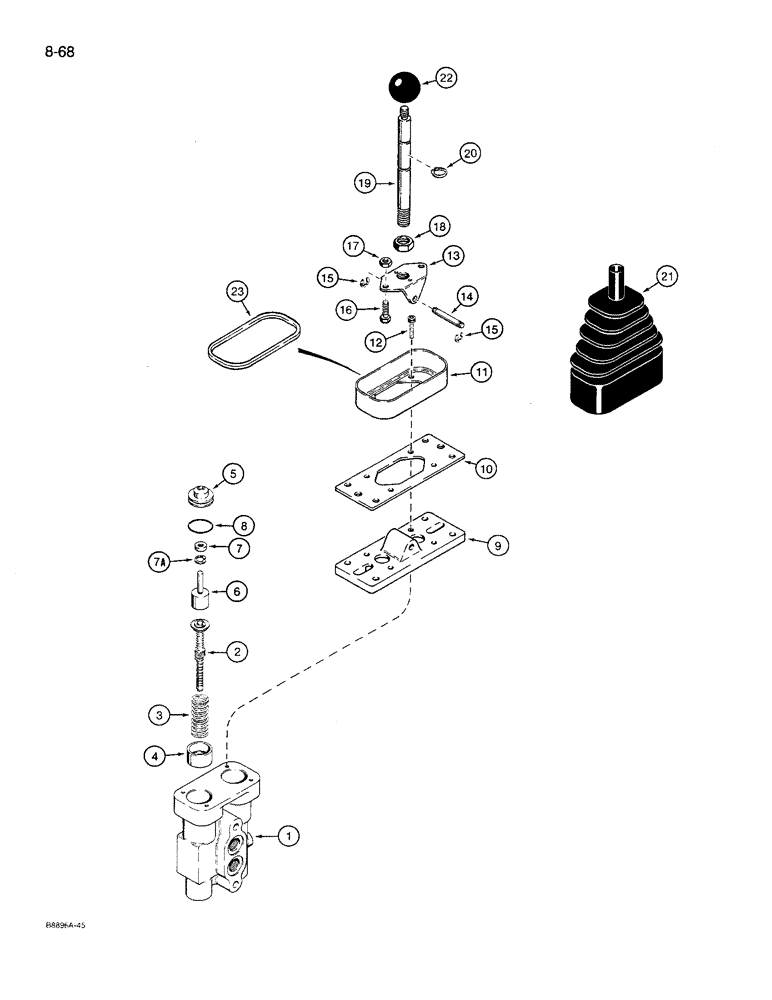

Запчасти Case 621 (8-68) - AUXILIARY REMOTE CONTROL VALVE, L123917 (08) - HYDRAULICS

L123917

VALVE

ASSEMBLY - control, remote, auxiliary, see Figure 8-52 or 8-54 for mounting, Includes: Ref. 1 -23

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, control, auxiliary

1шт.

1976800C1

SPOOL

ASSEMBLY - control valve, Includes: Ref. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

3

1978214C1

SPRING

- spool

1шт.

4

1978192C1

RACE

SLEEVE - spool

1шт.

1976801C1

PLUNGER

ASSEMBLY - control valve, Includes: Ref. 5 - 8

2шт.

5

1978195C1

GUIDE

- control valve

1шт.

6

1978215C1

PLUNGER

- control valve

1шт.

7

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

- plunger

1шт.

7a

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, , plunger 0.50", Int, #50

1шт.

8

376769R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- guide

1шт.

9

1978216C1

LARGE PLATE

PLATE - plastic, lower

1шт.

10

1978217C1

LARGE PLATE

PLATE - metal, upper

1шт.

11

1978218C1

LARGE PLATE

COLLAR - control valve

1шт.

12

28411R1

HEX SOC SCREW,#10 - 24 x 3/4"

BOLT - hex socket, No. 10 NC x 3/4 inch

4шт.

13

1978219C1

CAM

PIVOT - control valve

1шт.

14

1978220C1

PIN

- pivot

1шт.

15

25408R1

SNAP RING,#X21, .185" Dia, E-Type

Ring, Retaining, , pivot #X21, .185" Dia, E-Type

2шт.

16

1978222C1

SCREW

BOLT - special, spool actuator

2шт.

17

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

18

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8

1шт.

19

1978223C1

LEVER

- control valve

1шт.

20

26593R1

SNAP RING,#50, Ext

Ring, Snap, , lever #50, Ext

1шт.

21

1976802C1

DUST CAP

BOOT - rubber, control valve

1шт.

22

1978187C1

BALL KNOB

KNOB - lever

1шт.

23

1542254C1

TRIM - control valve collar, used as a grommet (Replaced 1542553C1)

1шт.
