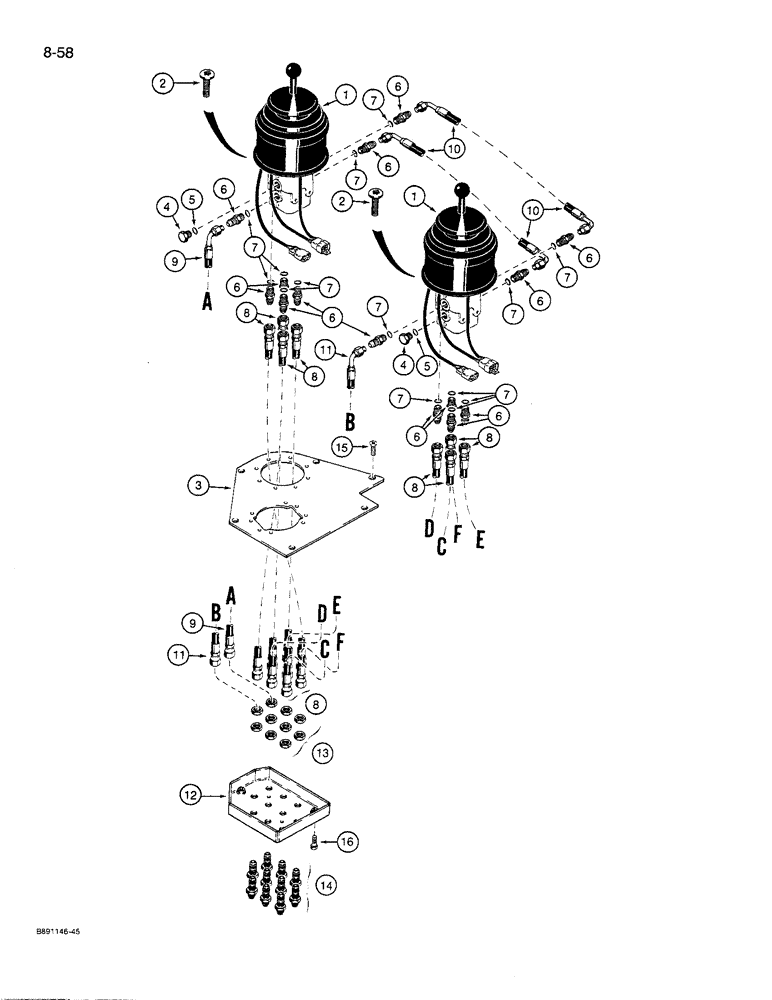

Запчасти Case 621 (8-58) - REMOTE LOADER CONTROL CIRCUIT, TWO LEVERS WITH FOUR SPOOL VALVE (08) - HYDRAULICS

1

L116443

VALVE

ASSEMBLY - control, remote, single lever, parts list Figure 8-64

2шт.

2

182-486

SCREW,Cross Pan Hd, 1/4" - 20 x 1"

- machine, pan head Phillips, 1/4 NC x 1 inch

8шт.

3

1339947C1

LARGE PLATE

PLATE - mounting, remote control

1шт.

4

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 5 Hex Hd, 9/16"-18 ORB

2шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 7

14шт.

8

1339965C1

HOSE,9.53mm ID x 419.1mm L, SAE 100R1

- 419 mm long, remote control to hose separator

8шт.

9

1339964C1

HOSE,9.53mm ID x 501.7mm L, SAE 100R1

- 502 mm long, remote control to pressure regulating valve

1шт.

10

L126988

HOSE ASSY.

HOSE - 162 mm long, remote control crossover

2шт.

11

1339964C1

HOSE,9.53mm ID x 501.7mm L, SAE 100R1

- 502 mm long, remote auxiliary control to hydraulic reservoir

1шт.

12

1339969C1

LARGE PLATE

SEPARATOR - hose, loader control

1шт.

13

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

10шт.

14

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

10шт.

15

43-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

- machine, flat head Phillips, 1/4 NC x 3/4 inch

6шт.

16

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

3шт.

17

1977322C1

DECAL

- loader control, not shown, see Figure 9-90, item 21

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
