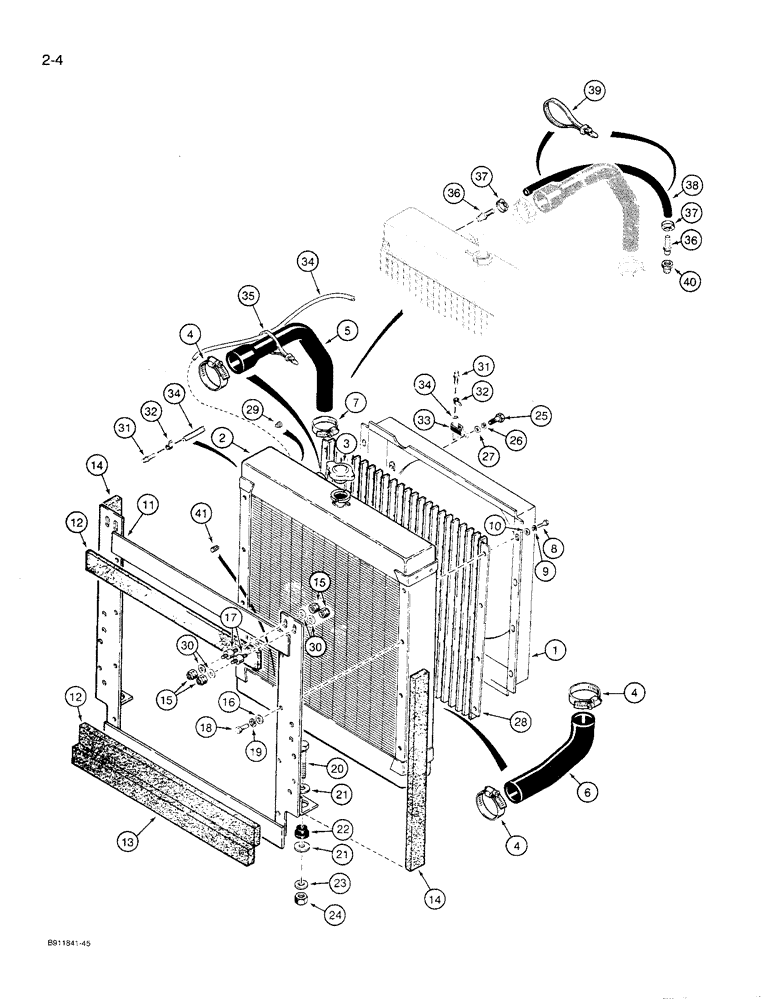

Запчасти Case 621 (2-04) - RADIATOR AND RADIATOR MOUNTING (02) - ENGINE

1

A189198

DEFLECTOR

SHROUD - radiator

1шт.

2

A190619

RADIATOR

- engine and transmission oil cooling

1шт.

3

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

4

214-177

CLIP

CLAMP - adj, 2-1/4 - 3-1/8 inch dia

3шт.

5

L119052

RADIATOR HOSE

- Upper, 45 mm ID, Formed

1шт.

6

L119053

RADIATOR HOSE,57.20 mm ID x 345.00 mm, SAE 20R4 Class C or D-1

- Lower, Formed 57.20 mm ID x 345.00 mm, SAE 20R4 Class C or D-1

1шт.

7

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

CLAMP - adj, 1-3/4 - 2-5/8 inch dia

1шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 - 1.25 x 20 mm

8шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

10

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

8шт.

11

L128181

SUPPORT

- radiator

1шт.

12

L127665

SEAL

- adhesive backed, upper and lower support

2шт.

13

L128306

SEALING STRIP,50mm W x 765mm L x 38mm Thk

- adhesive backed, lower support

1шт.

14

L127664

SEAL

- adhesive backed, side support

2шт.

15

231-1445

NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC

8шт.

16

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

8шт.

17

L11236

BOLT

BOLT - special, radiator support mounting

4шт.

18

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 - 1.25 x 20 mm

8шт.

19

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

20

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

21

495-81239

WASHER,17/32" x 2 1/4" x .180"

- flat, 17/32 x 1-1/16 x 9/64 inch, hardened

4шт.

22

L46821

SHOCK ABSORBER

INSULATOR - rubber mount

2шт.

23

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

24

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

25

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 25 mm

2шт.

26

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

27

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

28

L128483

BAFFLE

SCREEN - sand, if used

1шт.

29

221-841

PLUG

- hex socket, 1/4 inch PT, upper radiator, if used

1шт.

30

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

8шт.

31

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

ADAPTER - straight, 5/8 stem end x 1/2 inch PT, use with item 34, 31-1293 hose

2шт.

32

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, #24

2шт.

33

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- P-type, bypass hose to radiator shroud

2шт.

34

31-1293

HOSE,0.63" ID x 55.00"

cut from 97252C1 bulk hose shown below, to lower radiator, if used 0.63" ID x 55.00"

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

36

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Adapter - straight, barb stem, Use with item 38, L130058 hose 3/8" Hose X 1/4" NPTF Beaded

2шт.

37

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - adjustable, includes screw, No. 6, type F

2шт.

38

L130058

HOSE

- 10 ID x 686 mm long, to upper radiator, if used

1шт.

39

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

40

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

- pipe, 1/2 male x 1/4 inch female

1шт.

41

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket, 1/2 inch PT, lower radiator, if used

1шт.

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

1шт.
