(8-52) - REMOTE LOADER CONTROL CIRCUIT, TWO LEVERS WITH THREE SPOOL VALVE

Запчасти Case 621 (8-52) - REMOTE LOADER CONTROL CIRCUIT, TWO LEVERS WITH THREE SPOOL VALVE (08) - HYDRAULICS

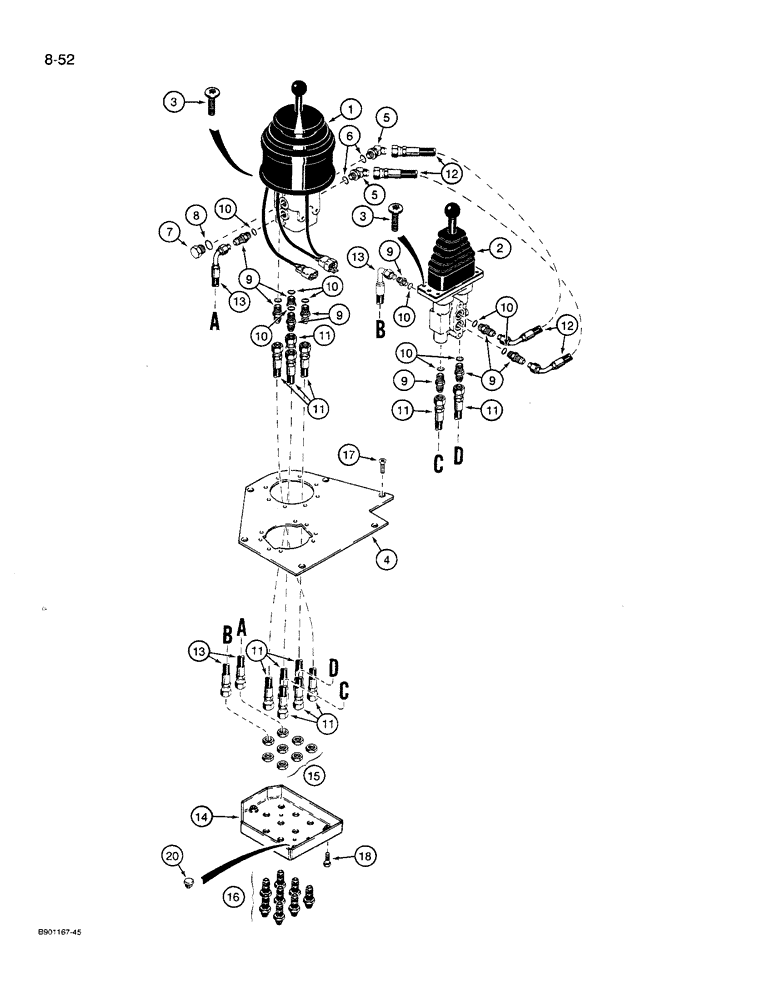

Схема запчастей Case 621 - (8-52) - REMOTE LOADER CONTROL CIRCUIT, TWO LEVERS WITH THREE SPOOL VALVE (08) - HYDRAULICS
10
11
1
16
11
7
5
9
6
10
13
11
3
11
3
9
10
5
12
15
13
8
13
10
10
9
17
9
11
4
10
2
14
20
12
11
18
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L116443

VALVE

ASSEMBLY - control, remote, single lever, parts list Figure 8-64

1шт.

2

L123917

VALVE

ASSEMBLY - control, remote, auxiliary, single lever, parts list Figure 8-68

1шт.

3

182-486

SCREW,Cross Pan Hd, 1/4" - 20 x 1"

- machine, pan head Phillips, 1/4 NC x 1 inch

8шт.

4

1339947C1

LARGE PLATE

PLATE - mounting, remote control

1шт.

5

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 6

2шт.

7

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 8 Hex Hd, 9/16"-18 ORB

1шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 10

10шт.

11

1339965C1

HOSE,9.53mm ID x 419.1mm L, SAE 100R1

- 419 mm long, remote control to hose separator

6шт.

12

1339962C1

HOSE,9.53mm ID x 254mm L, SAE 100R1

- 10 " (254 mm) long, auxiliary remote control to remote control

2шт.

13

1339964C1

HOSE,9.53mm ID x 501.7mm L, SAE 100R1

- 502 mm long, remote control and auxiliary remote control to pressure reducing valve

2шт.

14

1339969C1

LARGE PLATE

SEPARATOR - hose, loader control

1шт.

15

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

8шт.

16

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

8шт.

17

43-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

- machine, flat head Phillips, 1/4 NC x 3/4 inch

6шт.

18

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

3шт.

19

1977321C1

DECAL

- loader control, not shown, see Figure 9-90, item 19

1шт.

20

353-406

PLUG,Dome, .625" hole, Nylon

- nylon, 5/8 inch

2шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
