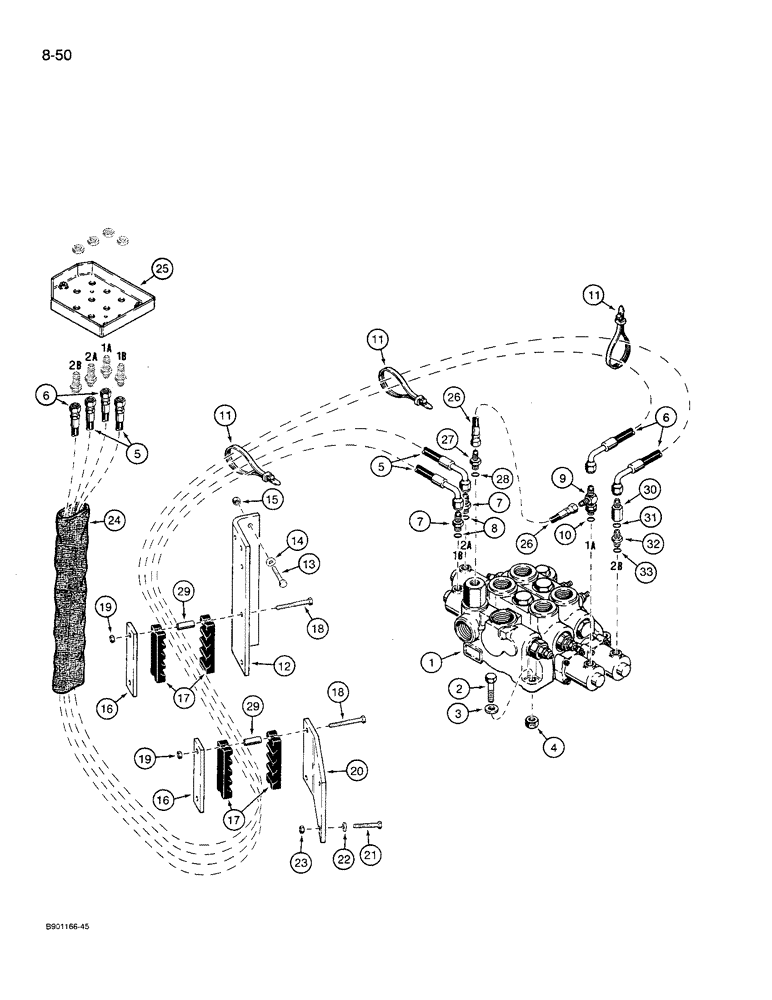

Запчасти Case 621 (8-50) - REMOTE LOADER CONTROL CIRCUIT, HOSE SEPARATOR TO TWO SPOOL VALVE (08) - HYDRAULICS

1

L123735

VALVE

ASSEMBLY - control, parts list Figure 8-20

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

3шт.

4

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

3шт.

5

L124308

HOSE,9.53mm ID x 2210mm L, SAE 100R3

- 2210 mm long, hose separator to ports 1B and 2A

2шт.

6

L124310

HOSE

- 3200 mm long, hose separator to ports 1A and 2B

2шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, at ports 1B and 2A, Incl. Ref. 8

2шт.

9

L124527

TEE

- special, at port 1A

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

12

L119088

SUPPORT

BRACKET - hose mounting, bolts to front chassis

1шт.

13

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

14

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch

3шт.

15

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

3шт.

16

L124270

LARGE PLATE

PLATE - mounting, bracket

2шт.

17

L124271

FIXING BRACKET

CLAMP - rubber, hose retaining

4шт.

18

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

4шт.

19

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

4шт.

20

L119099

BRACKET

- hose mounting, bolts to rear frame

1шт.

21

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

22

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

23

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

24

S120426

TUBE

GUARD - hose protector

1шт.

25

1339969C1

LARGE PLATE

SEPARATOR - hose, loader control

1шт.

26

L128977

TUBE ASSY.

HOSE - 510 mm long, inlet and outlet section to tee at port 1A

1шт.

27

L129691

FITTING

ADAPTER - straight, flow reducing, special, Includes: Ref. 28

1шт.

29

L126936

SPACER

- special, hose clamp

4шт.

L110143

VALVE

- check, loader lift, at port 2B, Includes: Ref. 30 - 33

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

32

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 33

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

33

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
