(8-44) - LOADER AUXILIARY CYLINDER, S301431

Запчасти Case 621 (8-44) - LOADER AUXILIARY CYLINDER, S301431 (08) - HYDRAULICS

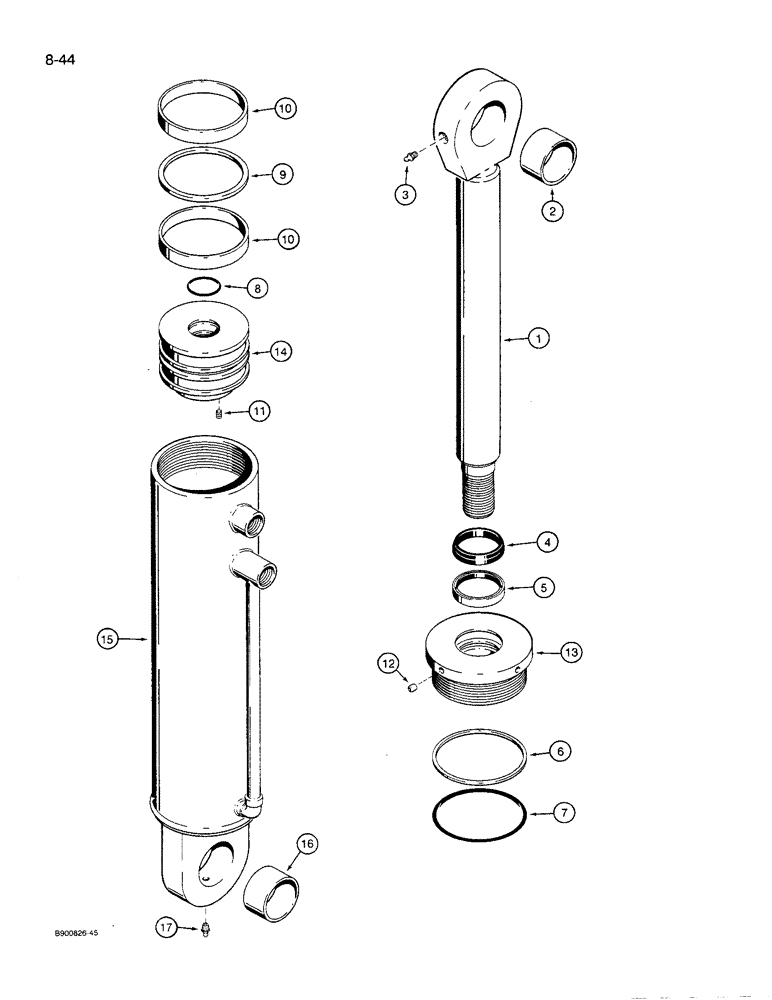

Схема запчастей Case 621 - (8-44) - LOADER AUXILIARY CYLINDER, S301431 (08) - HYDRAULICS
16
13
12
2
1
8
11
10
4
3
5
15
9
14
7
6
10
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

S301431

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER ASSEMBLY - 4 inch ID x 10 inch stroke, auxiliary, Includes: Ref. 1 - 17

2шт.

1

S301440

PISTON ROD

ROD ASSEMBLY - cylinder, Includes: Ref. 2 & 3

1шт.

2

S300154

BUSHING

- rod

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT

1шт.

S301442

SEAL KIT

KIT- SEAL, Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup, gland, outer

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - gland, outer

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING -, Serial Range: rod-piston

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

10

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

11

NSS

NOT SOLD SEPARAT

SCREW - set, piston retaining

1шт.

12

NSS

NOT SOLD SEPARAT

PIN - 1/4 x 3/16 inch long, thread locking, gland

1шт.

13

S301441

GLAND

- cylinder

1шт.

14

S301438

PISTON

- cylinder

1шт.

15

S301439

HYD CYL SLEEVE

TUBE - cylinder, Includes: Ref. 16 & 17

1шт.

16

S300154

BUSHING

- tube

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT

1шт.
