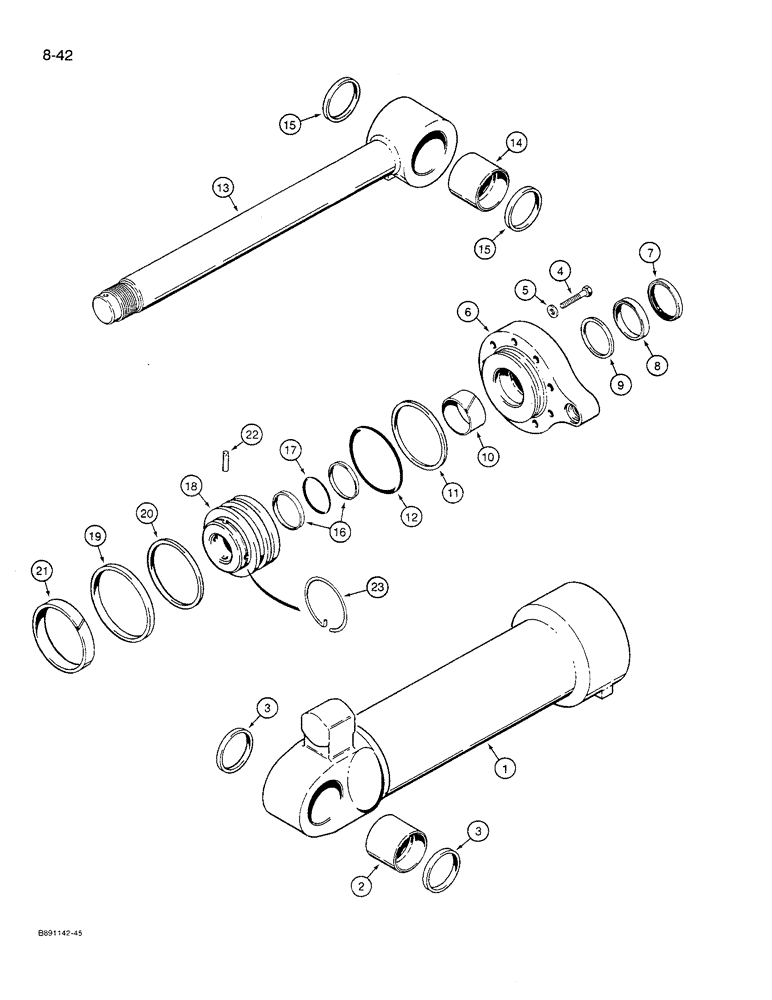

Запчасти Case 621 (8-42) - BUCKET CYLINDER, 1343552C2 (08) - HYDRAULICS

1343552C2

CYLINDER ASSY.

CYLINDER ASSEMBLY - 152 mm ID x 544 mm stroke, bucket, Includes: Ref. 1 - 23

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

1343593C1

TUBE

- cylinder, Includes: Ref. 2

1шт.

2

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

- tube

1шт.

3

L104363

WIPER SEAL

- tube eye

2шт.

4

28-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8

- hex, 9/16 NF x 2-3/4 inch, grade 8

9шт.

5

G110688

WASHER

- flat, hardened, special

9шт.

G110527

BEARING

GLAND ASSEMBLY - cylinder, no longer available, order G110321

1шт.

G110321

BEARING

GLAND ASSEMBLY - cylinder, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

7

D95148

WIPER SEAL

WIPER - piston rod

1шт.

Part of P/N G110526 Seal kit

1шт.

8

G109054

SEAL,76.15mm ID x 88.95mm OD x 10.69mm Thk

- U-cup, piston rod

1шт.

Part of P/N G110526 Seal kit

1шт.

9

G109015

SEAL,75.69mm ID x 91.82mm OD x 4.9mm Thk

- buffer

1шт.

Part of P/N G110526 Seal kit

1шт.

10

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

-, Serial Range: gland-rod

1шт.

Part of P/N G110526 Seal kit

1шт.

11

G109034

BACK-UP RING,135.94mm ID x 145.08mm OD x 1.93mm Thk

BACKUP-RING - Gland O-ring

1шт.

Part of P/N G110526 Seal kit

1шт.

12

238-5256

O-RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

1шт.

Part of P/N G110526 Seal kit

1шт.

13

1343555C1

PISTON ROD

ROD - 76 mm diameter, Includes: Ref. 14

1шт.

14

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

- rod eye

1шт.

15

L104363

WIPER SEAL

- rod eye

2шт.

16

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, seal, Serial Range: piston-rod

2шт.

Part of P/N G110526 Seal kit

1шт.

17

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

Piston to rod -234, 70 Duro, 2.984" ID x .139" Thk

1шт.

Part of P/N G110526 Seal kit

1шт.

18

1343554C1

JACK PISTON

PISTON - rod

1шт.

19

G110330

SEALING RING

SEALRING -, Serial Range: piston-tube

1шт.

Part of P/N G110526 Seal kit

1шт.

20

G110331

SEALING RING,Square, 6.86mm Thk x 132.46mm ID

SEALRING - Backup, Piston seal

1шт.

Part of P/N G110526 Seal kit

1шт.

21

G110332

WEAR RING,146.04mm ID x 152.4mm OD x 38.1mm Thk

BUSHING -, Serial Range: piston-tube

1шт.

Part of P/N G110526 Seal kit

1шт.

22

G106602

LOCK PIN

PIN - locking, Serial Range: piston-rod

1шт.

23

1980352C1

RING

- retaining, locking pin

1шт.

G110526

SEAL PACKAGE

KIT - seal, Includes: Ref. 7 - 12, 16, 17 and 19 - 21

1шт.
