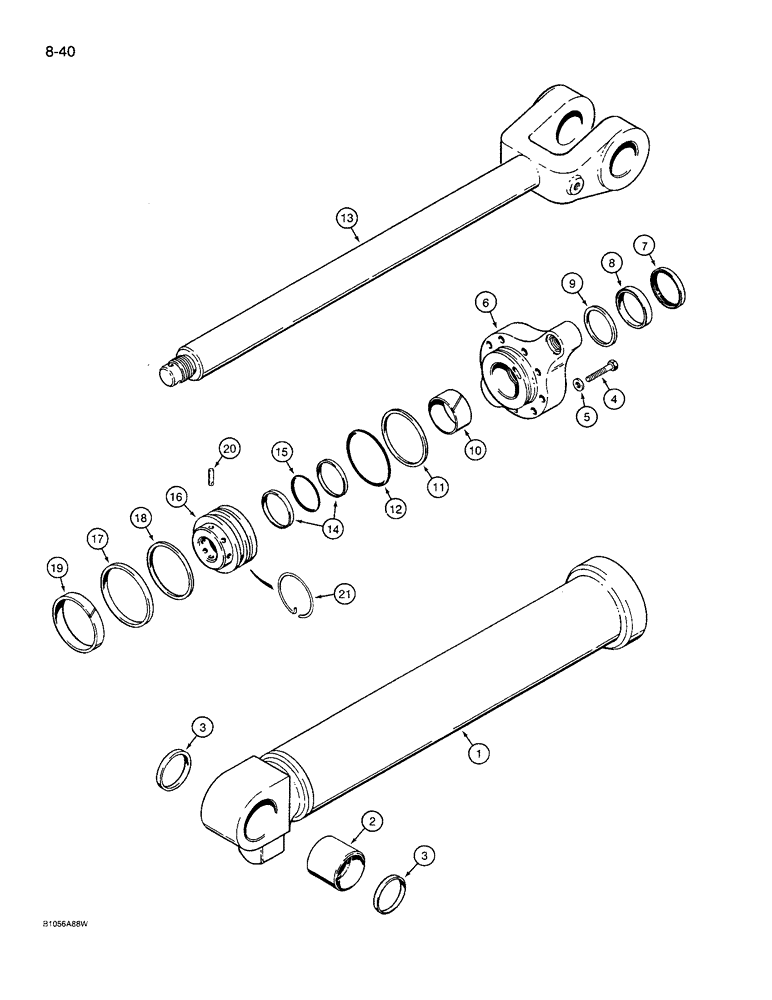

Запчасти Case 621 (8-40) - LIFT CYLINDERS (08) - HYDRAULICS

1343596C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 127 mm ID x 834 mm stroke, right-hand lift, Includes: Ref. 1 - 21

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1343595C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 127 mm ID x 834 mm stroke, left-hand lift, Includes: Ref. 1 - 21

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

1343597C1

TUBE

- cylinder, 1343596C1 and 1343595C1 cylinders

1шт.

2

L127015

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

- tube

1шт.

3

D95148

WIPER SEAL

SEAL - tube eye

2шт.

4

28-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8

- hex, 9/16 NF x 2-3/4 inch, grade 8

9шт.

5

G110688

WASHER

- flat, 5/8 inch, hardened

9шт.

G110525

CYLINDER END CAP

GLAND ASSEMBLY - cylinder, no longer available, order G110365

1шт.

G110365

CYLINDER END CAP

GLAND ASSEMBLY - cylinder, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

7

D95148

WIPER SEAL

WIPER - piston rod

1шт.

Part of P/N G110524 Seal Kit

1шт.

8

G109054

SEAL,76.15mm ID x 88.95mm OD x 10.69mm Thk

- U-cup, piston rod

1шт.

Part of P/N G110524 Seal Kit

1шт.

9

G109015

SEAL,75.69mm ID x 91.82mm OD x 4.9mm Thk

- buffer

1шт.

Part of P/N G110524 Seal Kit

1шт.

10

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

-, Serial Range: gland-rod

1шт.

Part of P/N G110524 Seal Kit

1шт.

11

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of P/N G110524 Seal Kit

1шт.

12

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

Part of P/N G110524 Seal Kit

1шт.

13

1343565C1

PISTON ROD

ROD - 76 mm diameter

1шт.

14

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, seal, Serial Range: piston-rod

2шт.

Part of P/N G110524 Seal Kit

1шт.

15

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

Piston to rod -234, 70 Duro, 2.984" ID x .139" Thk

1шт.

Part of P/N G110524 Seal Kit

1шт.

16

G110368

PISTON

- rod

1шт.

17

G102091

SEAL,128.52mm OD x 6.96mm Thk

-, Serial Range: piston-tube

1шт.

Part of P/N G110524 Seal Kit

1шт.

18

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

- backup, piston seal

1шт.

Part of P/N G110524 Seal Kit

1шт.

19

G102090

RING,127mm OD, Ext

BUSHING -, Serial Range: piston-tube

1шт.

Part of P/N G110524 Seal Kit

1шт.

20

G106602

LOCK PIN

PIN - locking, Serial Range: piston-rod

1шт.

21

G110333

CIRCLIP

RING - retaining, locking pin

1шт.

G110524

SEAL PACKAGE

KIT - seal, Includes: Ref. 7 - 12, 14, 15 and 17 - 19

1шт.
