Артикул
Название
Примечание
Количество

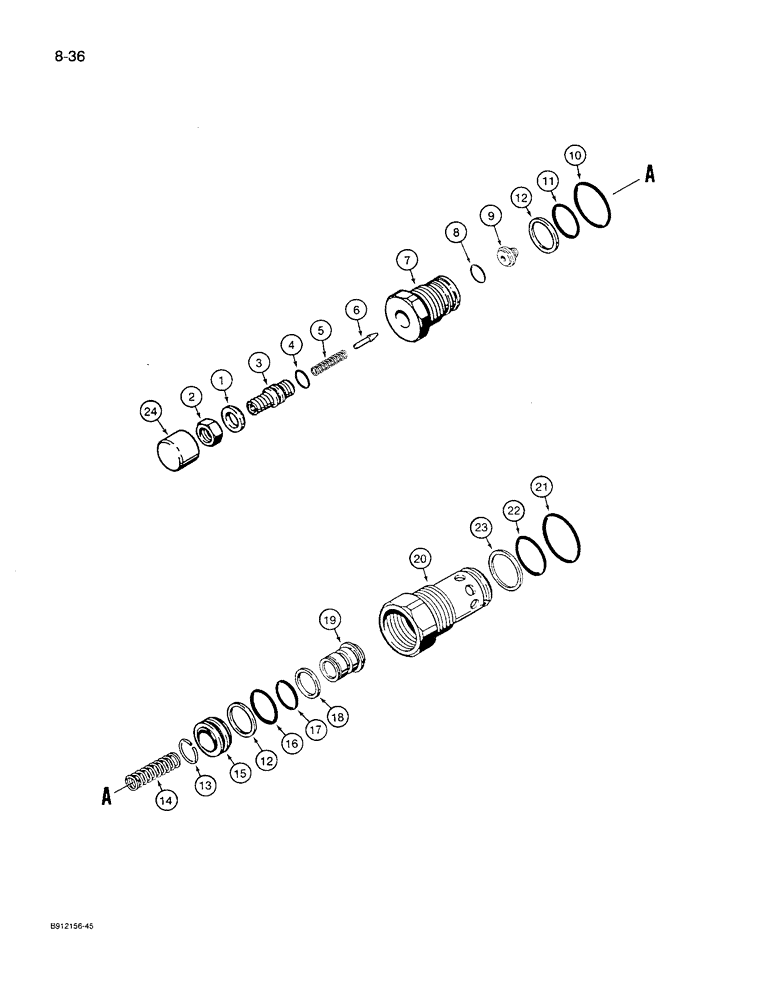

102210A1
VALVE
ASSEMBLY - main relief and circuit relief and anticavitation valve service replacement, Includes: Ref. 1 - 24
1шт.
This valve is used as a main relief and also as a replacement for the circuit relief and anticavitation valve. See your service manual for proper pressure settings.
1шт.
102211A1
VALVE
ASSEMBLY - circuit relief and anticavitation, loader control valve, production only, for service order 102210A1 valve, see your service manual for proper pressure settings, Includes: Ref. 1 - 24
1шт.
1
1978295C1
WASHER
- valve
1шт.
2
25934R1
JAM NUT,Jam, 3/8"-24, G8
- jam, hex, 3/8 inch NF
1шт.
3
NSS
NOT SOLD SEPARAT
SCREW - adjusting
1шт.
4
NSS
NOT SOLD SEPARAT
O-RING - 3/8 ID x 1/16 inch wide, adjusting screw
1шт.
Part of P/N 1986634C1 Seal Kit
1шт.
5
NSS
NOT SOLD SEPARAT
SPRING - plunger
1шт.
6
NSS
NOT SOLD SEPARAT
PLUNGER - relief valve
1шт.
7
NSS
NOT SOLD SEPARAT
BODY - pilot plunger, Includes: Ref. 8 & 9
1шт.
8
NSS
NOT SOLD SEPARAT
O-RING - pilot seat
1шт.
Part of P/N 1986634C1 Seal Kit
1шт.
9
NSS
NOT SOLD SEPARAT
SEAT - pilot
1шт.
10
NSS
NOT SOLD SEPARAT
O-RING - body, large
1шт.
Part of P/N 1986634C1 Seal Kit
1шт.
11
NSS
NOT SOLD SEPARAT
O-RING - body, small
1шт.
Part of P/N 1986634C1 Seal Kit
1шт.
12
NSS
NOT SOLD SEPARAT
RING - backup, O-ring
2шт.
Part of P/N 1986634C1 Seal Kit
1шт.
13
NSS
NOT SOLD SEPARAT
RING - retaining, poppet sleeve
1шт.
14
NSS
NOT SOLD SEPARAT
SPRING - poppet
1шт.
15
NSS
NOT SOLD SEPARAT
SLEEVE - poppet
1шт.
16
NSS
NOT SOLD SEPARAT
O-RING - sleeve
1шт.
Part of P/N 1986634C1 Seal Kit
1шт.
17
NSS
NOT SOLD SEPARAT
O-RING - poppet
1шт.
Part of P/N 1986634C1 Seal Kit
1шт.
18
NSS
NOT SOLD SEPARAT
RING - backup, poppet O-ring
1шт.
Part of P/N 1986634C1 Seal Kit
1шт.
19
NSS
NOT SOLD SEPARAT
POPPET ASSEMBLY - relief valve, with flat screen, component parts are not serviceable
1шт.
20
NSS
NOT SOLD SEPARAT
BODY - relief valve
1шт.
21
237-6014
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
14-1, 90 Duro, 1.048" ID x .116" Thk
1шт.
Part of P/N 1986634C1 Seal Kit
1шт.
22
238-5021
O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro
-021, 70 Duro, .926" ID x .070" Thk
1шт.
Part of P/N 1986634C1 Seal Kit
1шт.
23
1978265C1
BACK-UP RING
RING - backup, small O-ring
1шт.
Part of P/N 1986634C1 Seal Kit
1шт.
24
NSS
NOT SOLD SEPARAT
COVER - tamper proof, S301628 valve only
1шт.
1986634C1
SEAL KIT
KIT - seal, Includes: Refs. 4, 8, 10 - 12, 16 - 18 and 21 - 23
1шт.
Выбрано товаров: 39
