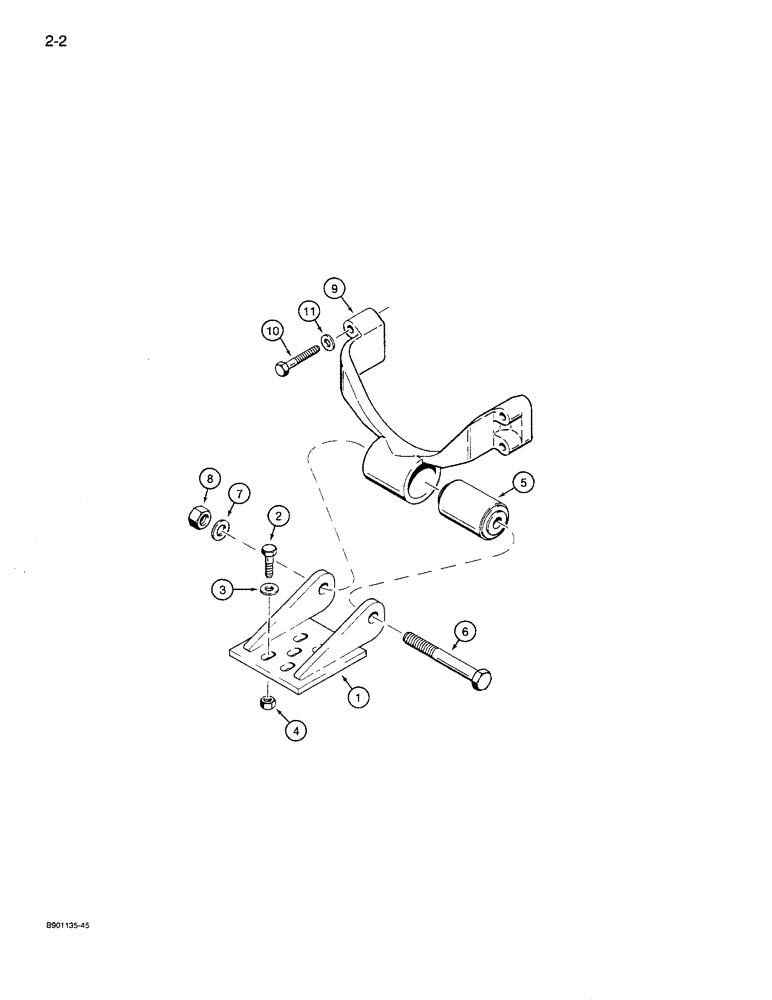

Запчасти Case 621 (2-02) - ENGINE MOUNT AND RELATED PARTS (02) - ENGINE

1

L128273

SUPPORT

MOUNT - engine

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

4

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

4шт.

5

L124020

SHOCK ABSORBER

SPACER - phosphate coated, engine, Serial Range: mount-support

1шт.

6

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

1шт.

7

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened

1шт.

8

131-450

NUT,3/4"-10

NUT - heavy hex, self-locking, 3/4 inch NC

1шт.

9

J916664

SUPPORT

- engine, replaces J914373 support

1шт.

10

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

- hex, 12 - 1.75 x 70 mm

4шт.

11

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.
