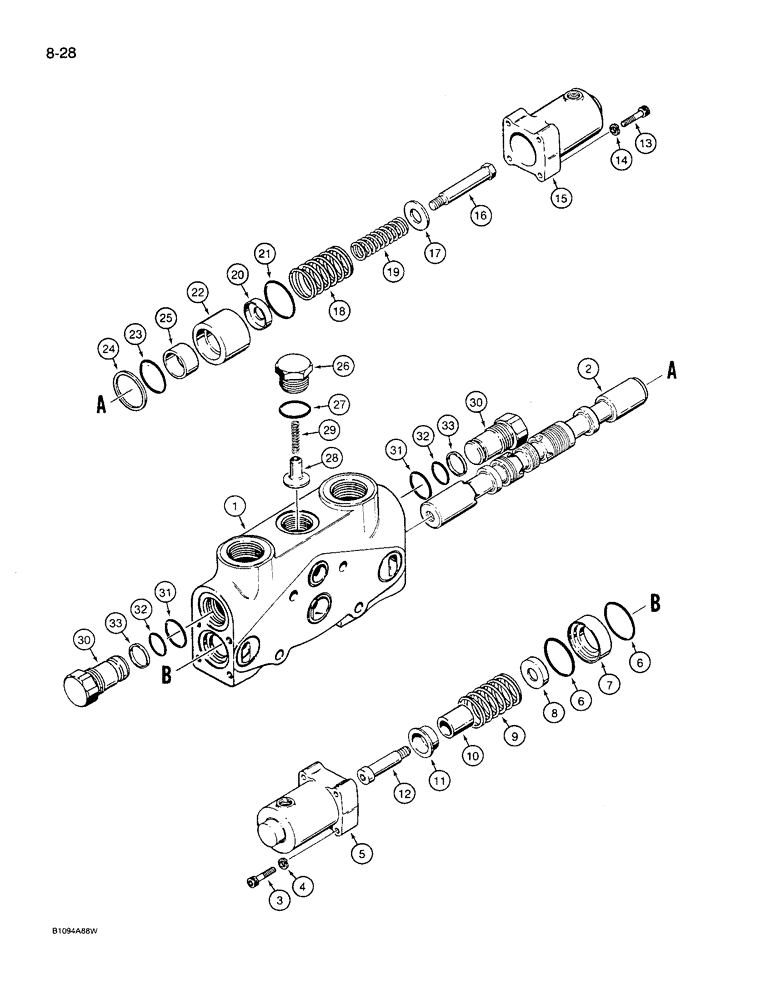

Запчасти Case 621 (8-28) - LOADER LIFT SECTION (08) - HYDRAULICS

1978302C1

VALVE

SECTION ASSEMBLY - lift, Includes: Ref. 1 - 33

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lift section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - lift section

1шт.

1978303C1

SET

KIT - positioner, float, three position, Includes: Ref. 3 -12

1шт.

3

25491R1

BOLT,Hex, 1/4" - 20 x 2", Gr 8

SCREW - hex socket, 1/4 NC x 2 inch

4шт.

4

192-402

LOCK WASHER

WASHER - lock, 1/4 inch

4шт.

5

NSS

NOT SOLD SEPARAT

CAP - spring

1шт.

6

375269R1

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- 1-1/2 ID x 3/32 inch wide, cap

2шт.

7

NSS

NOT SOLD SEPARAT

SPACER - cap

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - spring, inner

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - spool positioner

1шт.

10

NSS

NOT SOLD SEPARAT

SLIDE - spool positioner

1шт.

11

NSS

NOT SOLD SEPARAT

SEAT - spring, outer

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT - spool guide

1шт.

1978310C1

SET

KIT - positioner, float, regeneration, Includes: Ref. 13 - 25

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW - hex socket, 1/4 NC x 3 inch

4шт.

14

192-402

LOCK WASHER

WASHER - lock, 1/4 inch

4шт.

15

NSS

NOT SOLD SEPARAT

CAP - spring

1шт.

16

NSS

NOT SOLD SEPARAT

BOLT - spool positioner

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - spring retainer

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING - spool positioner, large

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - spool positioner, small

1шт.

20

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

21

375269R1

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- 1-1/2 ID x 3/32 inch wide, cap

1шт.

22

NSS

NOT SOLD SEPARAT

SPACER - cap

1шт.

23

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

- 1-1/4 ID x 3/32 inch wide, cap spacer

1шт.

24

NSS

NOT SOLD SEPARAT

SPACER - seal

1шт.

25

NSS

NOT SOLD SEPARAT

SLEEVE - cap spacer

1шт.

1978281C1

SET

KIT - plug, load check, no longer available, order 102204A1 kit

1шт.

102204A1

SET

KIT - plug, load check, Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

27

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 7/64 inch wide

1шт.

28

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

1978318C1

PLUG

ASSEMBLY - no relief, Includes: Ref. 30 - 33

2шт.

30

NSS

NOT SOLD SEPARAT

PLUG - lift section

1шт.

31

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 7/64 inch wide

1шт.

32

376769R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- 15/16 ID x 1/16 inch wide, plug

1шт.

33

1978299C1

BACK-UP RING

RING - backup, small O-ring

1шт.
