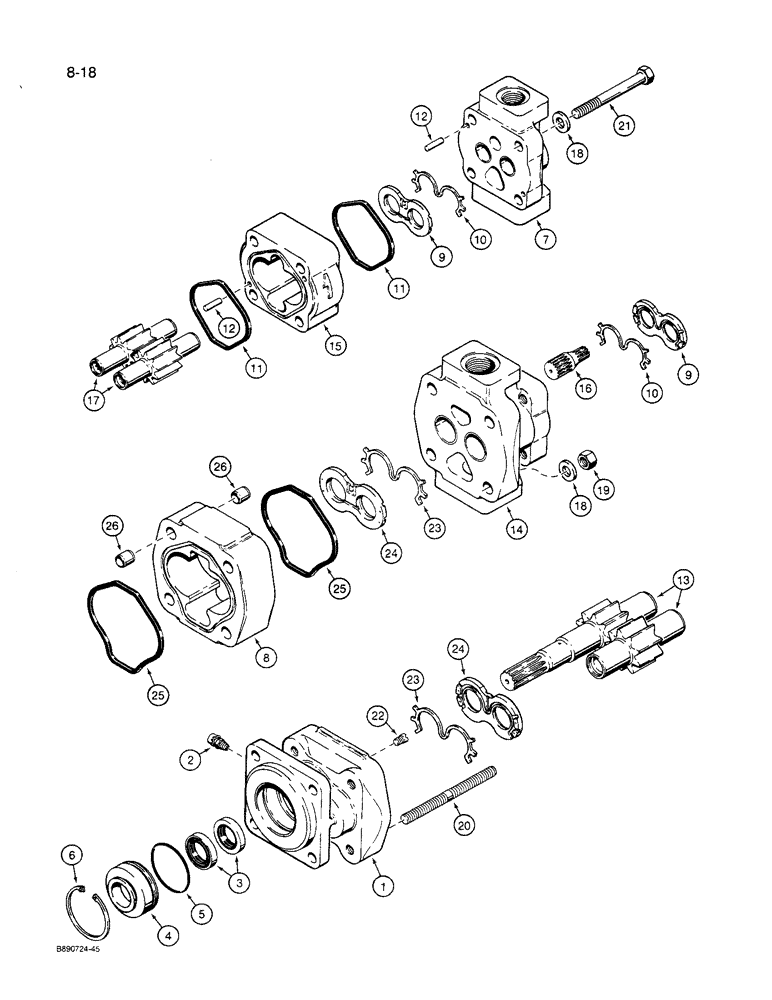

Запчасти Case 621 (8-18) - EQUIPMENT AND STEERING PUMP, L127270 (08) - HYDRAULICS

L127270

PUMP, HYDRAULIC

PUMP ASSEMBLY - equipment and steering, Includes: Ref. 1 - 27

1шт.

L127270R

REMAN-HYD PUMP

621 S/N JAK0021701 & AFTER

1шт.

L127270C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

S300592

COVER

- shaft end

1шт.

2

1978259C1

VALVE POPPET

VENT - air

1шт.

3

S300419

SEAL,34.92mm ID x 54.08mm OD x 7.92mm Thk

SEAL - lip, shaft

2шт.

4

1978254C1

SEAL RETAINER

RETAINER - seal

1шт.

5

S300420

O-RING,2.862" ID x 3.068" OD x 0.103"

- special

1шт.

6

659676R1

SNAP RING,3.156", Int, #315

Ring, Snap, 3.156", Int, #315

1шт.

7

S300594

COVER

- port end

1шт.

8

1340773C1

BODY

HOUSING - gear, shaft end

1шт.

9

N13582

THRUST PLATE

PLATE, THRUST, Port end gear housing

2шт.

10

N13583

SEAL

- gear housing, formed, port end

2шт.

11

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

- gear housing, port end

2шт.

12

W16323

DOWEL

PIN - dowel, gear housing, port end

4шт.

13

1340775C1

GEAR

SET - gear, shaft end

1шт.

14

S300593

BODY

CARRIER - bearing

1шт.

15

1340774C1

HOUSING

- gear, port end

1шт.

16

1340777C1

SHAFT

- connecting

1шт.

17

1340776C1

GEAR

SET - gear, port end

1шт.

18

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

- flat, 5/8 inch, hardened

8шт.

19

329-1010

NUT,5/8"-11, G8

4шт.

20

1978260C1

STUD

- pump

4шт.

21

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

4шт.

22

L32320

PLUG

- slotted, 7/16 inch NF

1шт.

23

1978256C1

SEAL

- gear housing, shaft end

2шт.

24

1978255C1

BACK-UP RING

PLATE - thrust, shaft end gear housing

2шт.

25

1978257C1

SEALING RING

SEAL - gear housing, shaft end

2шт.

26

1978258C1

CENTERING RING

BUSHING - alignment, gear housing, shaft end

8шт.

27

S300421

RESTRICTOR

REDUCER - special, cover to air vent, not shown

1шт.
