(8-16) - HYDRAULIC CIRCUIT, AUXILIARY CYLINDERS TO CLAM BUCKET

Запчасти Case 621 (8-16) - HYDRAULIC CIRCUIT, AUXILIARY CYLINDERS TO CLAM BUCKET (08) - HYDRAULICS

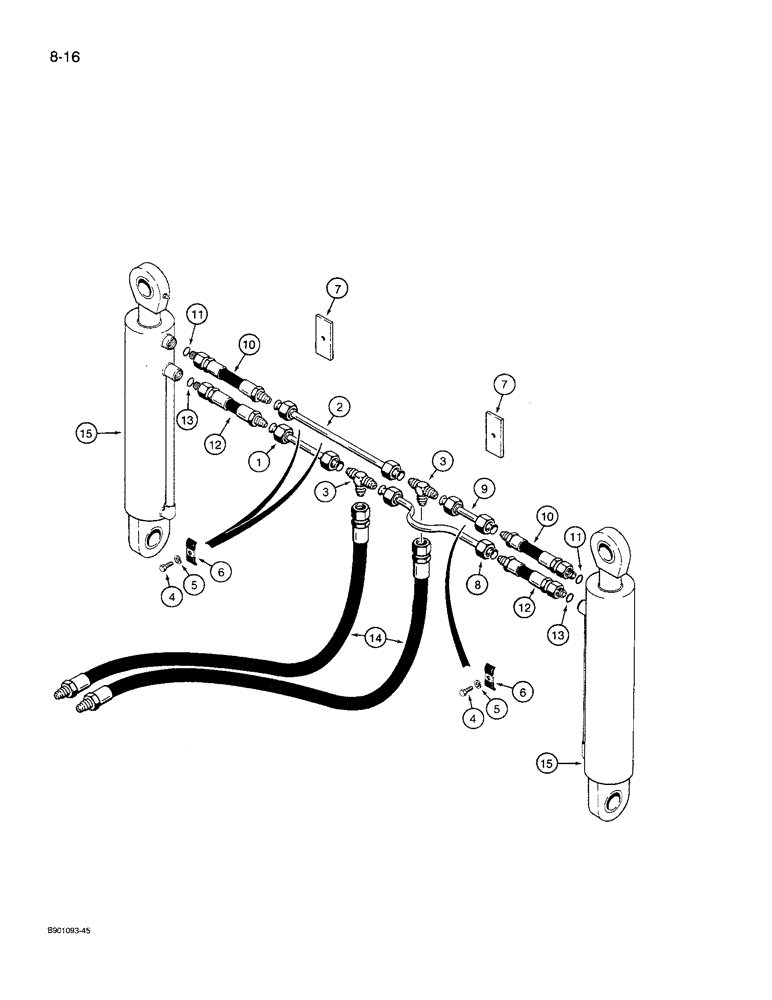

Схема запчастей Case 621 - (8-16) - HYDRAULIC CIRCUIT, AUXILIARY CYLINDERS TO CLAM BUCKET (08) - HYDRAULICS
3
9
2
12
7
7
4
6
13
11
1
10
11
15
3
4
8
10
15
12
5
5
6
14
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

S300151

PIPE

TUBE - auxiliary cylinder hydraulics, lower left-hand

1шт.

2

S301637

TUBE ASSY.

TUBE - auxiliary cylinder hydraulics, upper right-hand

1шт.

3

218-596

TEE,1 1/16"-12 37 Degree

- 1-1/16-12 inch flare, to auxiliary cylinders

2шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

3шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

6

S300148

FIXING BRACKET

CLAMP - tube support

3шт.

7

S300779

SUPPORT

BLOCK - tapped

3шт.

8

S301641

TUBE ASSY.

TUBE - auxiliary cylinder hydraulics, lower right-hand

1шт.

9

S301638

TUBE ASSY.

TUBE - auxiliary cylinder hydraulics, upper left-hand

1шт.

10

S301639

HOSE

- auxiliary cylinder, upper, Includes: Ref. 11

2шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

S301640

HOSE

- auxiliary cylinder, lower, Includes: Ref. 13

2шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

S300149

HYDRAULIC HOSE

HOSE - auxiliary cylinder tee to tubes at loader arm cross tube

2шт.

15

S301431

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER ASSEMBLY - auxiliary, parts list Figure 8-44

2шт.
