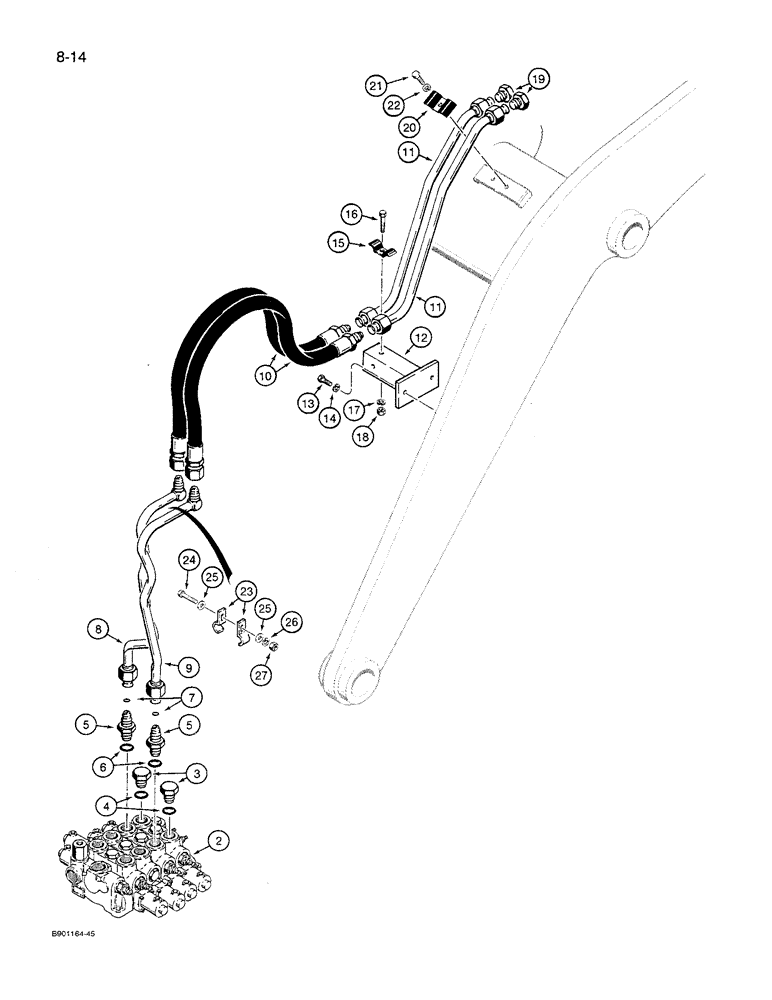

Запчасти Case 621 (8-14) - HYDRAULIC CIRCUIT, LOADER AUXILIARY, CONTROL VALVE TO CYLINDERS (08) - HYDRAULICS

1

L123678

VALVE

ASSEMBLY - control, three spool, not shown, parts list Figure 8-22, if used

1шт.

2

L123736

VALVE

ASSEMBLY - control, four spool, parts list Figure 8-24, if used

1шт.

3

273916

PLUG,Hex, 1-5/16" - 12 ORB

Use to plug ports of fourth valve section on units with a four spool valve, Includes Ref. 4 Hex Hd, 1 5/16"-12 ORB

2шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

5

L124291

FITTING

ADAPTER - special, valve to tubes, Includes: Ref. 6 & 7

2шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Boss end

1шт.

7

G102086

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

- adapter, flare end

1шт.

8

L126182

TUBE,25.4 mm OD

- left-hand, auxiliary section to hose

1шт.

9

L126180

TUBE,25.4 mm OD x 802, 248 mm L

- right-hand, auxiliary section to hose

1шт.

10

L126184

HOSE,19.1mm ID x 1100mm L, SAE 100R12

- 1100 mm long, tube at loader valve to tube on lift arm

2шт.

11

L126486

PIPE,25.4 mm OD

TUBE - left-hand and right-hand, at loader arm

2шт.

12

L126511

SUPPORT

BRACKET - mounting, tubes

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

R15257

CLAMP

- tubes

1шт.

16

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

218-779

PLUG,1 5/16"-12, 37 Degree

- hex, 1-5/16-12 inch flare, use when auxiliary attachments are not used

2шт.

20

R15257

CLAMP

- tubes

1шт.

21

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

22

492-11038

LOCK WASHER,3/8"

1шт.

23

L32065

CLAMP

- tubes

2шт.

24

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

25

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

2шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

425-106

NUT,3/8"-16, Cl 5

1шт.
