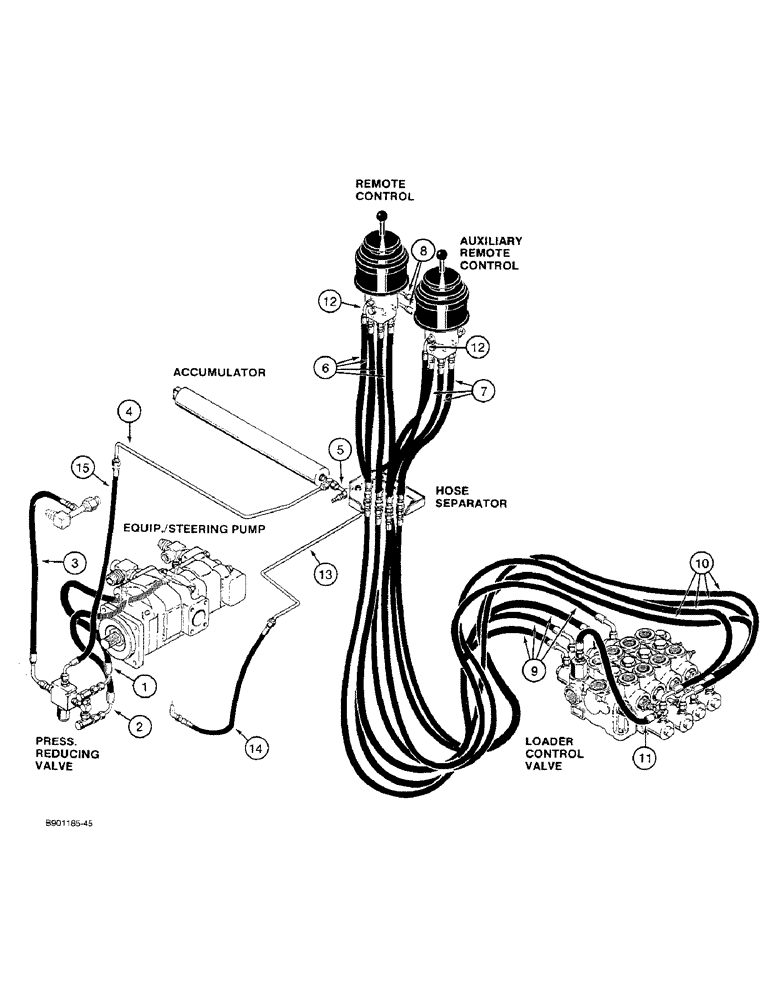

Запчасти Case 621 (1-20) - PICTORIAL INDEX, LOADER HYD. CIRCUIT, FOUR SPOOL CONTRL VALVE, STEERING PUMP TO LOADER CONTROL VALVE (00) - PICTORIAL INDEX

1

Hose, tee at steering pump to pressure reducing valve, Figure 8-62

1шт.

2

Hose, fitting at steering pump to pressure reducing valve, Figure 8-62

1шт.

3

Hose, pressure reducing valve to return tube, Figure 8-62

1шт.

4

Tube, hose at pressure reducing valve to tee at accumulator, Figure 8-62

1шт.

5

Tube, accumulator to hose separator, Figure 8-62

1шт.

6

Hose, remote control to hose separator ports 1A, 1B, 2A, and 2B, Figure 5-58

1шт.

7

Hose, auxiliary remote control to hose separator port 3A, 3B, 4A, and 4B, Figure 5-58

1шт.

8

Hose, auxiliary remote control to remote control, Figure 8-62

1шт.

9

Hose, hose separator to ports 1B, 2A, 3B, and 4B, Figure 8-62

1шт.

10

Hose, hose separator to ports 1A, 2B, 3A, and 4A, Figure 8-62

1шт.

11

Hose, inlet and outlet section to tee at port 1A, Figure 8-62

1шт.

12

Hose, remote control to hose separator, hydraulic reservoir and pressure reducing valve ports, Figure 8-58

1шт.

13

Tube, hose separator to hose at hydraulic reservoir, Figure 8-62

1шт.

14

Hose, tube to hydraulic reservoir, Figure 8-62

1шт.

15

Hose, pressure reducing valve to tube at accumulator, Figure 8-62

1шт.
