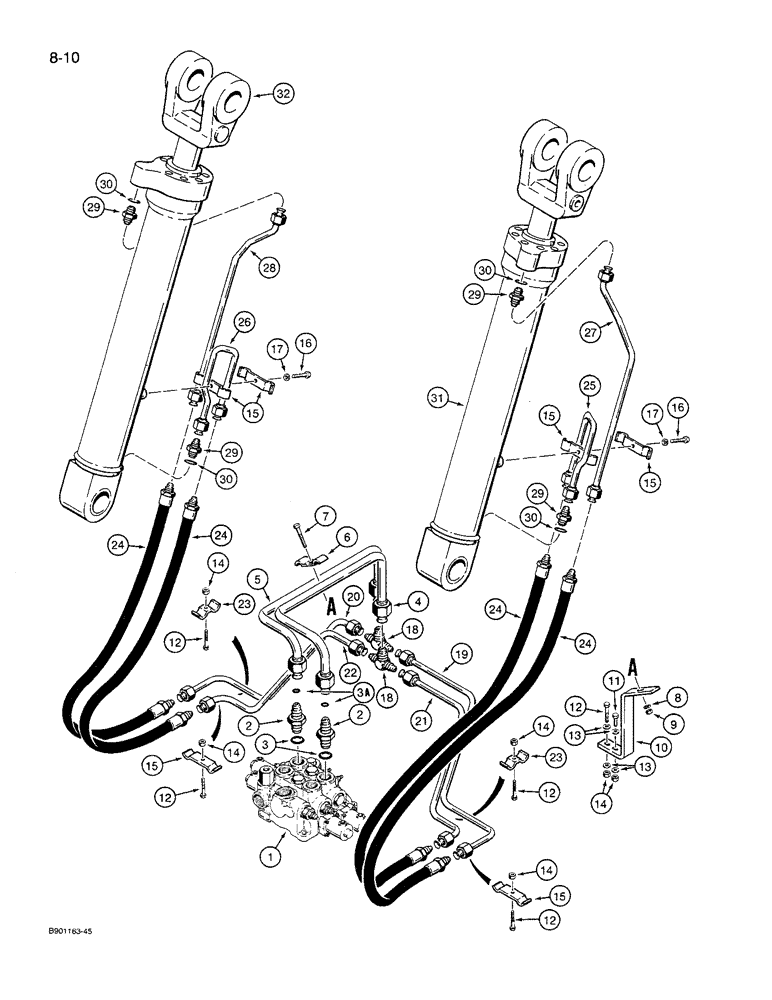

Запчасти Case 621 (8-10) - HYDRAULIC CIRCUIT, LOADER LIFT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, loader, see Figures 8-20 through 8-24 for correct valve assembly and components

1шт.

2

L124291

FITTING

ADAPTER - special, valve to lift tubes, Includes: Ref. 3 & 3A

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Boss end

1шт.

3a

G102086

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

- adapter, flare end

1шт.

4

L118618

PIPE,25.4 mm OD

TUBE - supply, right-hand, valve

1шт.

5

L118616

PIPE

TUBE - supply, left-hand, valve

1шт.

6

L124257

CLAMP

- tubes

1шт.

7

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

8

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

9

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

1шт.

10

L119010

SUPPORT

- tube

1шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

12

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

5шт.

13

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

4шт.

14

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

6шт.

15

L119234

CLAMP

CLAMP - tube

6шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

218-606

TEE,37 Degree, 1 1/16"-12 x 1 5/16"-12, Br

- 1-5/16-12 flare branch x 1-1/16-12 inch flare x flare

2шт.

19

L118620

PIPE,19.04 mm OD

TUBE - lift, right-hand rod end

1шт.

20

L118622

PIPE,19.04 mm OD x 431, 407 mm L

TUBE - lift, left-hand rod end

1шт.

21

L118624

PIPE,19.04 mm OD

TUBE - lift, right-hand closed end

1шт.

22

L118626

PIPE,19.04 mm OD

TUBE - lift, left-hand closed end

1шт.

23

R15257

CLAMP

- tubes

2шт.

24

L124240

HOSE,19.1mm ID x 1100mm L, SAE 100R12

- 1100 mm long, Serial Range: tube-tube

4шт.

25

L118686

PIPE,19.04 mm OD

TUBE - right-hand, cylinder closed end

1шт.

26

L118684

PIPE,19.04 mm OD

TUBE - left-hand, cylinder closed end

1шт.

27

L118682

PIPE,19.04 mm OD

TUBE - right-hand, cylinder rod end

1шт.

28

L118680

PIPE,19.04 mm OD

TUBE - left-hand, cylinder rod end

1шт.

29

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 30

4шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

31

1343596C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, right-hand, parts list Figure 8-40

1шт.

32

1343595C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, left-hand, parts list Figure 8-40

1шт.
