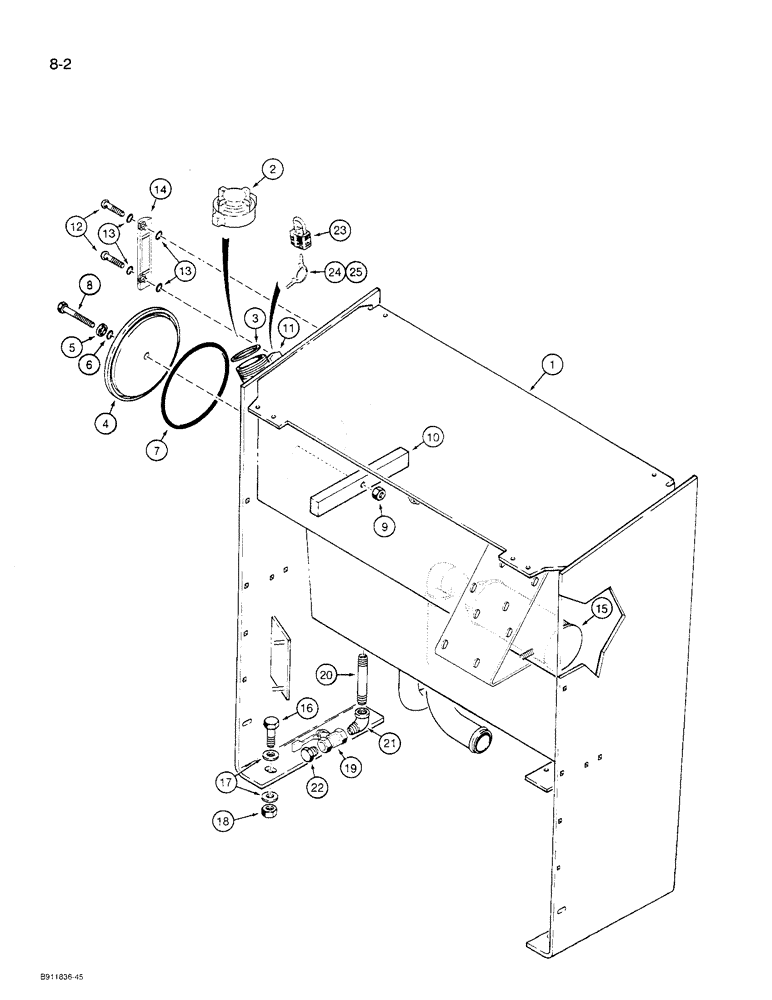

Запчасти Case 621 (8-02) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

L128927

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic, Includes: Ref. 1 -11

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic

1шт.

2

L128669

CAP

- filler, hydraulic reservoir

1шт.

3

R46984

GASKET

- filler cap

1шт.

4

L77124

COVER ASSY

COVER - access, hydraulic filter

1шт.

5

L78045

WASHER

- flat, special

1шт.

6

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- access cover bolt

1шт.

7

L111687

O-RING,6.975" ID x 0.275" Width

- access cover

1шт.

8

113-2462

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

9

131-510

LOCK NUT,1/2"-13

NUT - heavy hex, self-locking, 1/2 inch NC

1шт.

10

L50741

BAR

- cover retainer

1шт.

11

R46704

BRACKET

TAB - locking

1шт.

L116247

GAUGE

ASSEMBLY - sight, hydraulic oil, Includes: Ref. 12 - 14

1шт.

12

N13213

BOLT

BOLT - special, sight gauge

2шт.

13

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- seal, sight gauge

4шт.

14

NSS

NOT SOLD SEPARAT

GAUGE - sight, order L116247 sight gauge assembly

1шт.

15

L104990

FILTER SCREEN

SCREEN - suction

1шт.

16

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

17

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, hardened, special

8шт.

18

425-1010

NUT,5/8"-11, G5

4шт.

19

L124327

DRAIN VALVE

VALVE - drain, hydraulic reservoir

1шт.

20

221-1220

PIPE,Nipple, 3/4" NPT x 4 1/2"

NIPPLE - straight, 3/4 PT x 4-1/2 inch

1шт.

21

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

- street, 90 degree, 3/4 inch PT x female PT

1шт.

22

221-665

PLUG,Hex Hd, 3/4"-14

- hex, 3/4 inch PT

1шт.

23

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 24 & 25

1шт.

24

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

25

R29555

KEY

- for Master padlock only, if used

2шт.

L127685

DOOR

- Breather, not illustrated

1шт.
