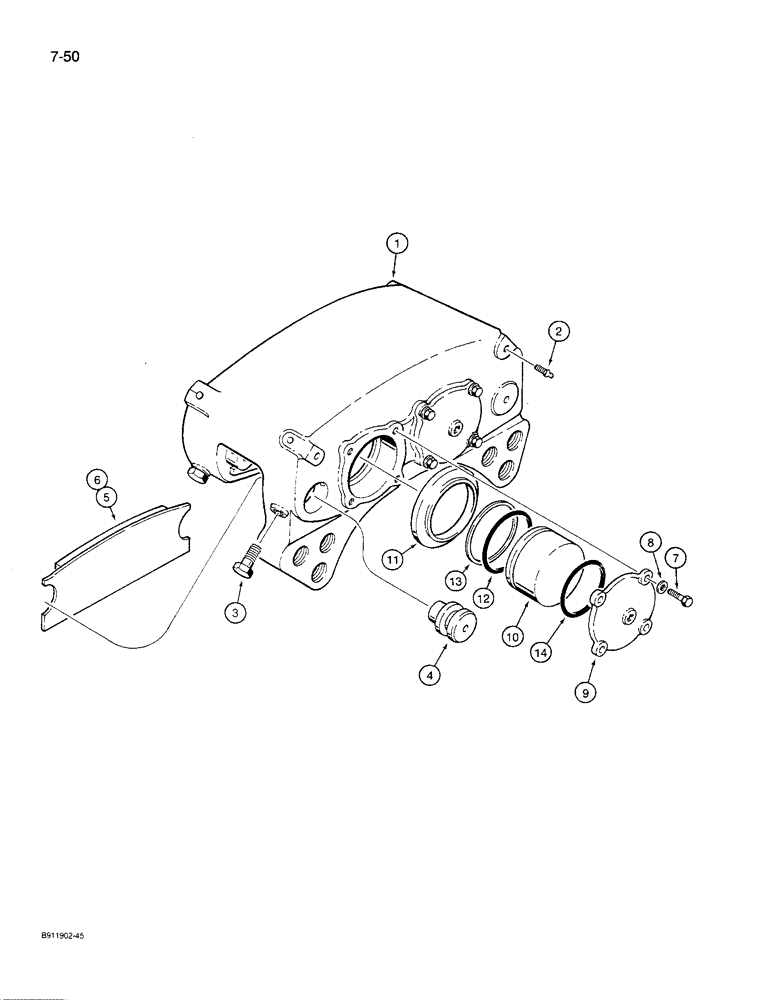

Запчасти Case 621 (7-50) - BRAKE CALIPER, L129310, P.I.N. JAK0027127 AND AFTER (07) - BRAKES

L129310

BRAKE CALIPER

CALIPER ASSEMBLY - brake, Includes: Ref. 1 -14

4шт.

A breakdown of L129310 assembly uses 1 each of P/N 102969A1 and S301675. The P/N S301675 has a tapped inlet port in it, the P/N 102969A1 doesn't.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - caliper

1шт.

2

D77517

VALVE

- bleeder

2шт.

3

N6171

LOCK BOLT,Hex, 3/8" - 16 x 1", Cup Pt

BOLT - hex, special

4шт.

4

D77524

PIN

- brake shoe

4шт.

S301674

BRAKE LINING

KIT - brake shoe and lining, Includes: Ref. 5 & 6

1шт.

5

NSS

NOT SOLD SEPARAT

SHOE - brake

2шт.

6

NSS

NOT SOLD SEPARAT

LINING - brake

2шт.

7

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

9

102969A1

CAP

HEAD - piston

1шт.

S301675

CAP

HEAD piston, with inlet port

1шт.

10

D77523

PISTON

- brake

4шт.

S301676

SET OF PARTS

KIT - seal, brake caliper, Includes: Ref. 11 -14

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston

4шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston

4шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

4шт.

14

NSS

NOT SOLD SEPARAT

O-RING - head

2шт.
