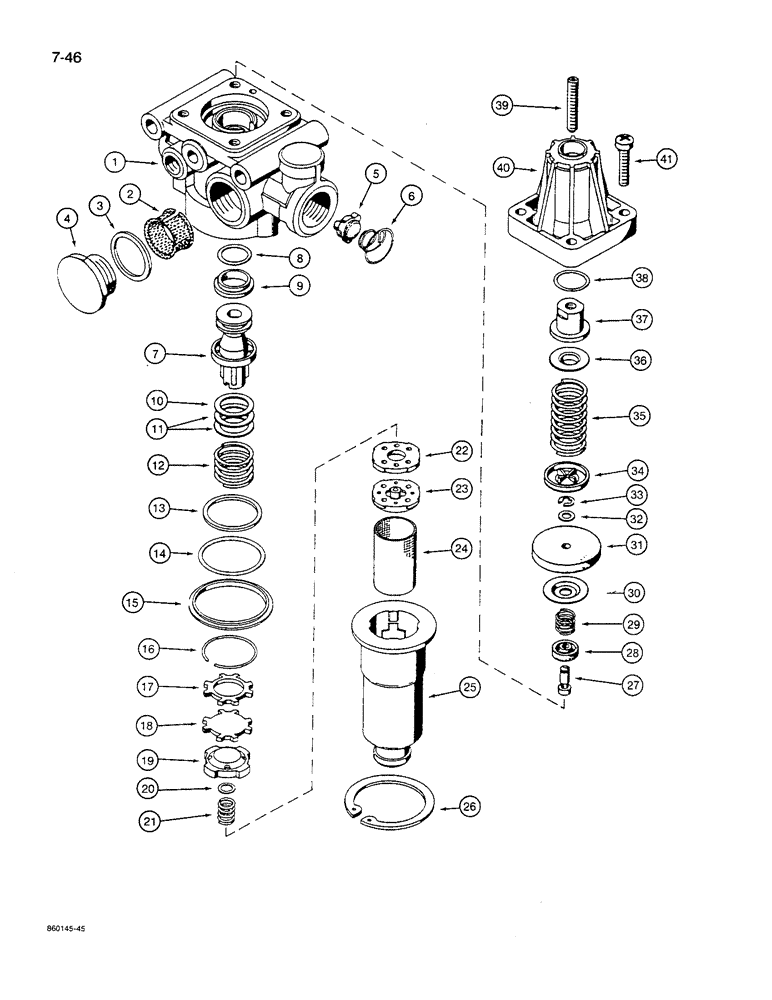

Запчасти Case 621 (7-46) - UNLOADING VALVE, L115645 (07) - BRAKES

L115645

VALVE

ASSEMBLY - unloading, brake system, Includes: Ref. 1 -41

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - unloading valve

1шт.

2

NSS

NOT SOLD SEPARAT

FILTER - screen, valve

1шт.

Part of P/N N13176 Unloading Valve Repair Kit

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - washer, plug

1шт.

Part of P/N N13176 Unloading Valve Repair Kit

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - check, outlet port

1шт.

Part of P/N N13176 Unloading Valve Repair Kit

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - conical, outlet port

1шт.

Part of P/N N13176 Unloading Valve Repair Kit

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON - unloading valve

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of P/N N13176 Unloading Valve Repair Kit

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of P/N N13176 Unloading Valve Repair Kit

1шт.

10

NSS

NOT SOLD SEPARAT

SHIM - 17 x 24 x 0.5 mm, original shim

1шт.

Part of P/N N13176 Unloading Valve Repair Kit

1шт.

11

NSS

NOT SOLD SEPARAT

SHIM - 17 x 24 x 0.1 mm, service, use as required for opening pressure, see 621 Service Manual

2шт.

Part of P/N N13176 Unloading Valve Repair Kit

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

13

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - body

1шт.

Part of P/N N13176 Unloading Valve Repair Kit

1шт.

15

NSS

NOT SOLD SEPARAT

RING - seal, large

1шт.

N13524

MUFFLER

SILENCER ASSEMBLY - unloading valve, Includes: Ref. 16 - 25

1шт.

16

NSS

NOT SOLD SEPARAT

RING - lock

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

18

NSS

NOT SOLD SEPARAT

SEAT - washer

1шт.

19

N13525

VALVE

- silencer

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - spring

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - spring retainer

1шт.

24

NSS

NOT SOLD SEPARAT

CARTRIDGE - damping

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - silencer

1шт.

26

NSS

NOT SOLD SEPARAT

RING - snap, body retaining

1шт.

Part of P/N N13176 Unloading Valve Repair Kit

1шт.

N13177

PISTON ASSY.

PISTON ASSEMBLY - valve, Includes: Ref. 27 - 33

1шт.

27

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of P/N N13176 Unloading Valve Repair Kit

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING - piston

1шт.

30

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

31

NSS

NOT SOLD SEPARAT

DIAPHRAGM - piston

1шт.

Part of P/N N13176 Unloading Valve Repair Kit

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - ring

1шт.

33

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of P/N N13176 Unloading Valve Repair Kit

1шт.

34

NSS

NOT SOLD SEPARAT

SEAT - spring, lower

1шт.

Ref. 34 is absolutely NSS, not part of any kit. Only available by ordering complete valve assembly.

1шт.

35

NSS

NOT SOLD SEPARAT

SPRING - piston

1шт.

36

NSS

NOT SOLD SEPARAT

SEAT - spring, upper

1шт.

37

NSS

NOT SOLD SEPARAT

CAP - adjusting screw

1шт.

Part of P/N N13176 Unloading Valve Repair Kit

1шт.

38

NSS

NOT SOLD SEPARAT

O-RING - cap

1шт.

Part of P/N N13176 Unloading Valve Repair Kit

1шт.

39

NSS

NOT SOLD SEPARAT

SCREW - adjusting, valve

1шт.

40

NSS

NOT SOLD SEPARAT

COVER - unloading valve, upper

1шт.

41

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

4шт.

Part of P/N N13176 Unloading Valve Repair Kit

1шт.

N13176

VALVE

KIT - repair, unloading valve, Includes: Ref. 2, 3, 5, 6, 8 - 11, 14, 26, 28, 31, 33, 37, 38 and 41

1шт.
