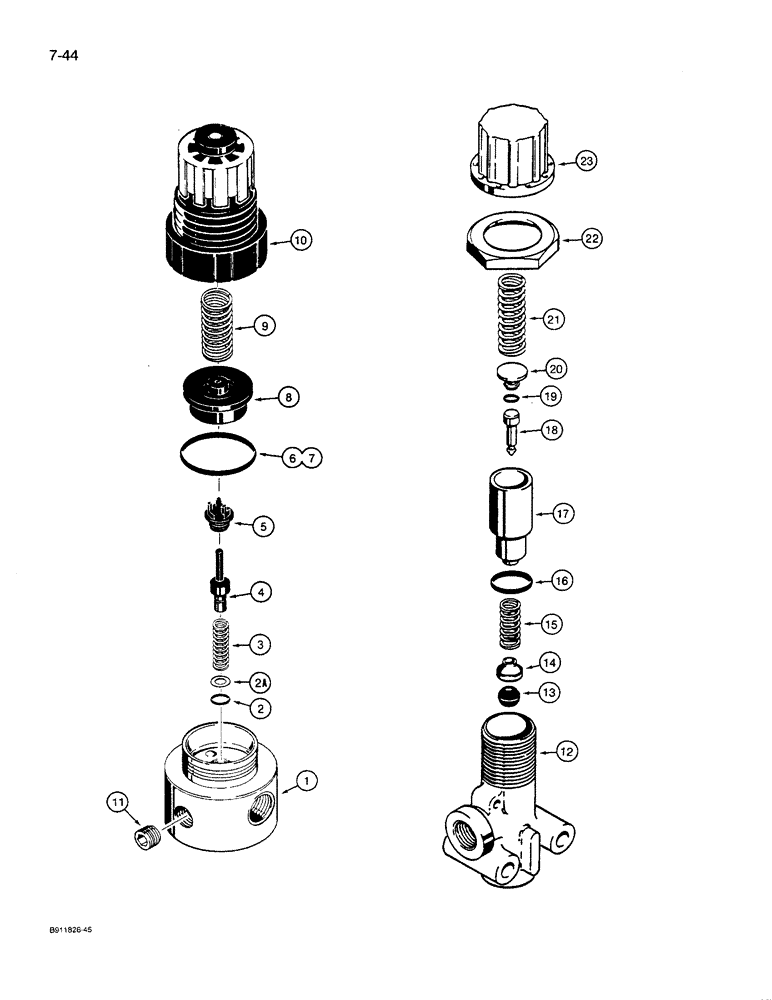

Запчасти Case 621 (7-44) - PRESSURE REDUCING VALVE, L112300 (07) - BRAKES

L112300

VALVE

ASSEMBLY - pressure reducing, brake, see Figure 7-24 for mounting - L112300, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, pressure reducing - L112300

1шт.

D76940

KIT

- repair, pressure redusing valve - L112300, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - poppet, pressure reducing valve - L112300

1шт.

2a

NSS

NOT SOLD SEPARAT

WASHER - backup, pressure reducing valve - L112300

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - small, pressure reducing valve - L112300

1шт.

4

NSS

NOT SOLD SEPARAT

POPPET - valve, pressure reducing valve - L112300

1шт.

5

NSS

NOT SOLD SEPARAT

GUIDE - poppet, pressure reducing valve - L112300

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston, pressure reducing valve - L112300

1шт.

N8744

KIT

- piston, pressure reducing valve - L112300, Includes: Ref. 7 & 8

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston, pressure reducing valve - L112300

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON - valve, pressure reducing valve - L112300

1шт.

9

D76942

SPRING

- large, pressure reducing valve - L112300

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - valve, pressure reducing valve - L112300

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG - hex socket, pressure reducing valve - L112300

1шт.

L13530

VALVE

ASSEMBLY - pressure protection, see Figure 7-24 for mounting, - L13530, Includes: Ref. 12 - 23

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - valve, pressure protection - L13530

1шт.

13

L31802

VALVE

- clutch, pressure protection - L13530

1шт.

14

NSS

NOT SOLD SEPARAT

GUIDE - valve, pressure protection - L13530

1шт.

15

L31800

SPRING

- valve, pressure protection - L13530

1шт.

16

L31798

O-RING,1/8" ID x 1/4" OD x 1/16"

- piston, pressure protection valve - L13530

1шт.

17

NSS

NOT SOLD SEPARAT

PISTON - valve, pressure protection valve - L13530

1шт.

18

NSS

NOT SOLD SEPARAT

STEM - valve, pressure protection valve - L13530

1шт.

19

L31797

O-RING,1/2" ID x 11/16" OD x 3/32"

- plug, pressure protection valve - L13530

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG - piston, pressure protection valve - L13530

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - valve, pressure protection valve - L13530

1шт.

22

131-414

LOCK NUT,PAL, 7/8"-14

NUT - hex, self-locking, 7/8 inch NF, pressure protection valve - L13530

1шт.

23

L33316

CAP

- adjusting, pressure protection valve - L13530

1шт.
