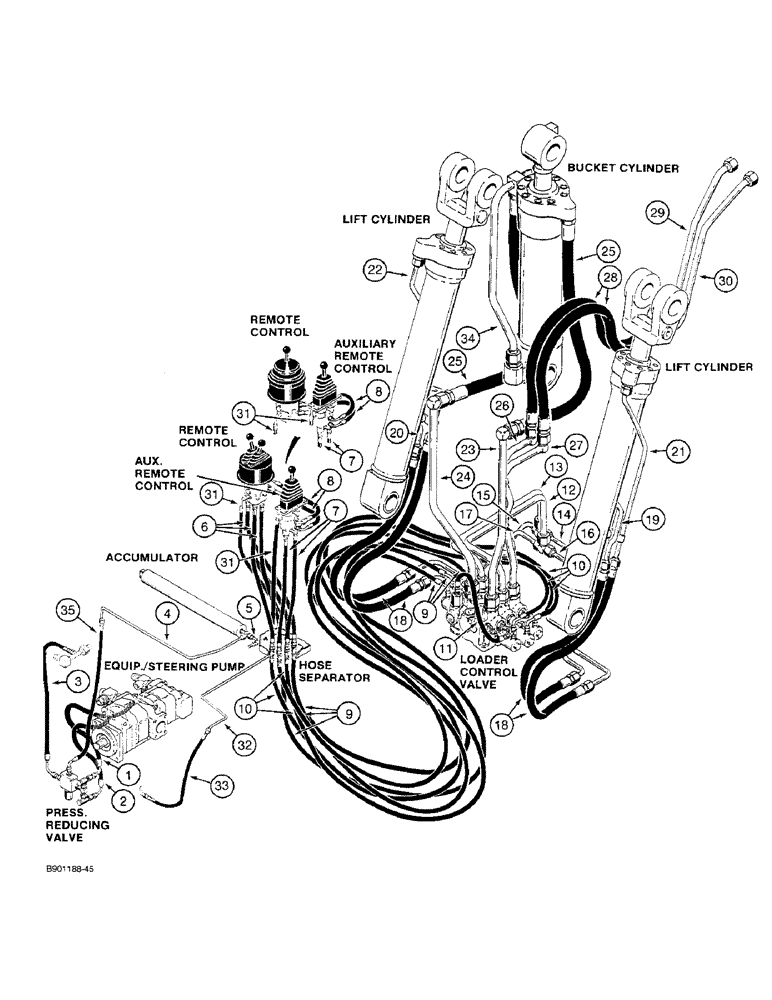

Запчасти Case 621 (1-18) - PICTORIAL INDEX, LOADER HYD. CIRCUIT, THREE SPOOL CONTROL VALVE, PUMP TO REMOTE CONTROL & CYLINDERS (00) - PICTORIAL INDEX

1

Hose, tee at steering pump to pressure reducing valve, Figure 8-62

1шт.

2

Hose, fitting at steering pump to pressure reducing valve, Figure 8-62

1шт.

3

Hose, pressure reducing valve to return tube, Figure 8-62

1шт.

4

Tube, hose at pressure reducing valve to tee at accumulator, Figure 8-62

1шт.

5

Tube, accumulator to hose separator, Figure 8-62

1шт.

6

Hose, remote control to hose separator ports 1A, 1B, 2A and 2B, Figue 8-52, 8-54

1шт.

7

Hose, auxiliary remote control to hose separator ports 3A and 3B, Figure 8-52, 8-54

1шт.

8

Hose, auxiliary remote control to remote control, Figure 8-52, 8-54

1шт.

9

Hose, hose separator to ports 1B, 2A, and 3B, Figure 8-56

1шт.

10

Hose, hose separator to ports 1A, 2B, and 3A, Figure 8-56

1шт.

11

Hose, inlet and outlet section to tee at port 1A, Figure 8-56

1шт.

12

Supply tube, right-hand, at valve to cylinders, Figure 8-10

1шт.

13

Supply tube, left-hand, at valve to cylinders, Figure 8-10

1шт.

14

Lift tube, right-hand rod end, Figure 8-10

1шт.

15

Lift tube, left-hand rod end, Figure 8-10

1шт.

16

Lift tube, right-hand closed end, Figure 8-10

1шт.

17

Lift tube, left-hand closed end, Figure 8-10

1шт.

18

Hose, at cylinders, Figure 8-10

1шт.

19

Tube, right-hand, cylinder closed end, Figue 8-10

1шт.

20

Tube, left-hand, cylinder closed end, Figure 8-10

1шт.

21

Tube, right-hand, cylinder rod end, Figure 8-10

1шт.

22

Tube, left-hand, cylinder rod end, Figure 8-10

1шт.

23

Supply tube, right-hand, Figue 8-12

1шт.

24

Supply tube, left-hand, Figue 8-12

1шт.

25

Hose, tube to bucket cylinder, Figue 8-12

1шт.

26

Tube, left-hand, auxiliary section to hose, Figue 8-14

1шт.

27

Tube, right-hand, auxiliary section to hose, Figue 8-14

1шт.

28

Hose, tube at loader valve to tube on lift arm, Figure 8-14

1шт.

29

Tube, left-hand, at loader arm, Figure 8-14

1шт.

30

Tube, right-hand, at loader arm, Figure 8-14

1шт.

31

Hose, remote controls to hose separator, hydraulic reservoir and pressure reducing valve ports, Figure 8-52, 8-54

1шт.

32

Tube, hose separator to hose at hydraulic reservoir, Figure 8-62

1шт.

33

Hose, formed tube to hydraulic reservoir, Figure 8-62

1шт.

34

Tube, bucket cylinder, closed end, Figure 8-12

1шт.

35

Hose, pressure reducing valve to tube at accumulator, Figure 8-62

1шт.
