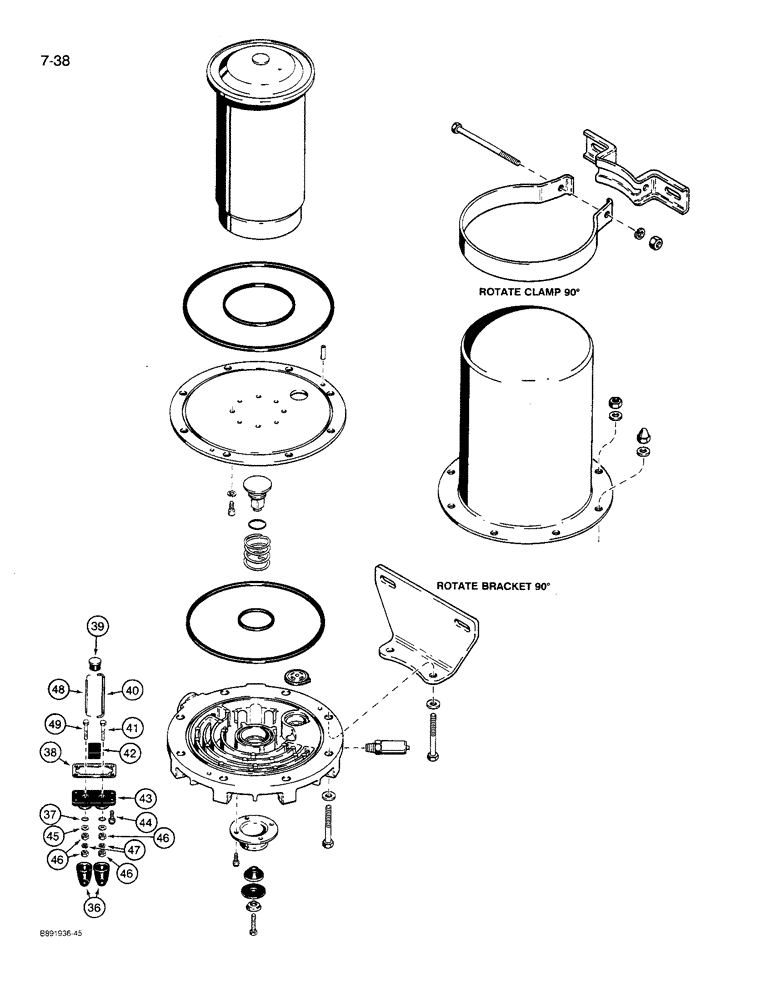

Запчасти Case 621 (7-38) - AIR DRYER (07) - BRAKES

L128082

ACCESSORIES

DRYER ASSEMBLY - air, brake, production, continued from previous page, for service order S301048, shown below

1шт.

S301048

ACCESSORIES

DRYER ASSEMBLY - air, brake, service, Includes: Ref. 36 - 49

1шт.

S300009

KIT

- thermostat, Includes: Ref. 36 - 49

1шт.

36

S107727

BOOT

- thermostat terminal

2шт.

37

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- terminal seal

2шт.

38

S116751

GASKET

- thermostat cover

1шт.

39

NSS

NOT SOLD SEPARAT

THERMOSTAT - air dryer

1шт.

40

NSS

NOT SOLD SEPARAT

LEAD - thermostat

1шт.

41

NSS

NOT SOLD SEPARAT

BOLT - thermostat terminal

1шт.

42

D75929

SPACER

- foam, thermostat

1шт.

43

NSS

NOT SOLD SEPARAT

COVER - thermostat

1шт.

44

168-75

DRIVE SCREW,Type U, Rnd Hd, #10 x 5/8"

- drive, round head, No. 10 x 5/8 inch

4шт.

45

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

2шт.

46

129-660

NUT,#10-32, Brass

4шт.

47

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

48

NSS

NOT SOLD SEPARAT

LEAD - heating element

1шт.

49

NSS

NOT SOLD SEPARAT

BOLT - heating element terminal

1шт.
