L128082
ACCESSORIES

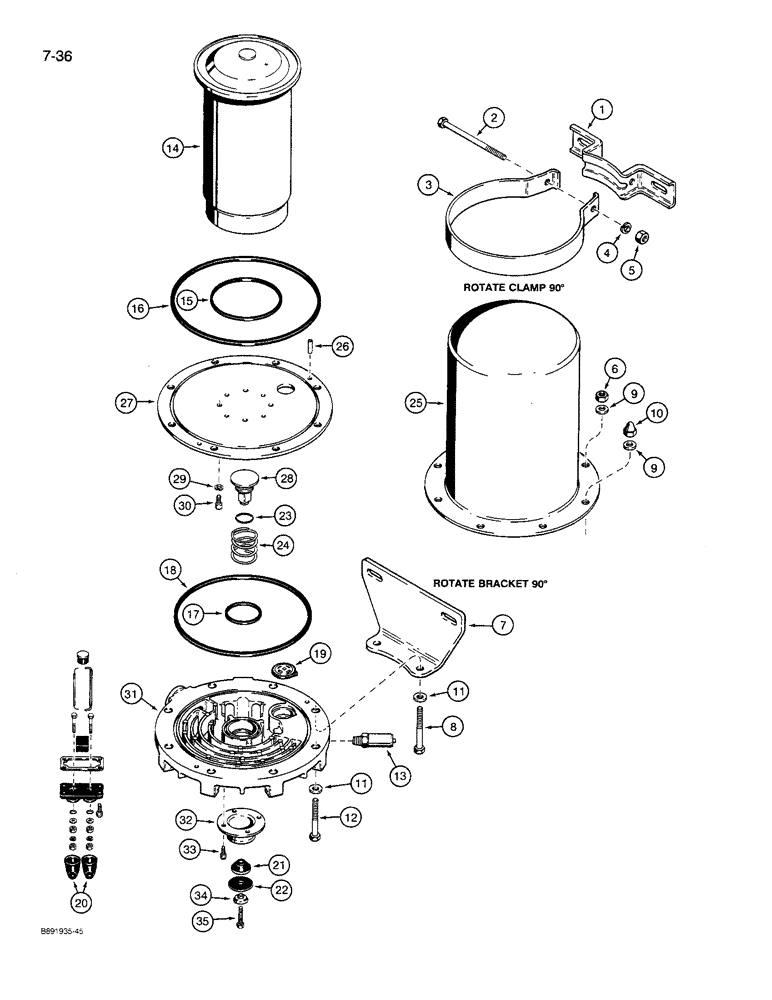

DRYER ASSEMBLY - air, brake, production, for service order S301048, shown below
1шт.
304238A1
ACCESSORIES
DRYER air, brake, service, Replaces: P/N S301048, as a complete unit this is a direct sub, see Fig. 7-20 for mounting
1шт.
S300006
KIT
- mounting bracket, Includes: Ref. 1 - 8
1шт.
1
NSS
NOT SOLD SEPARAT
BRACKET - mounting
1шт.
2
113-187
BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5
1шт.
3
NSS
NOT SOLD SEPARAT
STRAP - mounting
1шт.
4
492-11031
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
5
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
1шт.
6
131-1133
NUT,3/8"-24, GC
NUT - hex, self-locking, 3/8 inch NF
2шт.
7
NSS
NOT SOLD SEPARAT
BRACKET - plate mounting
1шт.
8
114-260
BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 8
- hex, 3/8 NF x 2-1/2 inch, grade 8
2шт.
9
196-1
WASHER,13/32" x 13/16" x .089", HDN
- flat, 13/32 x 13/16 x 3/32 inch, hardened
8шт.
10
129-525
CROWN NUT,Crown, 3/8"-16
- dome, 3/8 inch NF
6шт.
11
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE
8шт.
12
114-213
BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 5
Hex, 3/8"-24 x 2 1/4", G5
6шт.
13
S300008
VALVE
- check
1шт.
S300007
KIT
- repair, air dryer, Includes: Ref. 14 - 24
1шт.
14
NSS
NOT SOLD SEPARAT
CARTRIDGE - air dryer
1шт.
15
NSS
NOT SOLD SEPARAT
RING - seal, cartridge to plate, 4 inch ID
1шт.
S300011
SEAL KIT
KIT - seal and check valve
1шт.
16
NSS
NOT SOLD SEPARAT
RING - seal, cartridge cover to plate, 8 inch ID
1шт.
17
NSS
NOT SOLD SEPARAT
RING - seal, cartridge to plate, 2 inch ID
1шт.
18
NSS
NOT SOLD SEPARAT
RING - seal, dryer body to plate, 7 inch ID
1шт.
19
NSS
NOT SOLD SEPARAT
VALVE - check
1шт.
20
S107727
BOOT
- thermostat terminal
2шт.
S300010
KIT
- valve and diaphragm
1шт.
21
NSS
NOT SOLD SEPARAT
VALVE - air dryer
1шт.
22
NSS
NOT SOLD SEPARAT
DIAGHRAGM - valve
1шт.
23
S113403
O-RING
SEAL - piston
1шт.
24
NSS
NOT SOLD SEPARAT
SPRING - piston
1шт.
25
NSS
NOT SOLD SEPARAT
COVER - cartridge
1шт.
26
138-2031
PIN,3/16" x 7/8", Coiled
2шт.
27
NSS
NOT SOLD SEPARAT
PLATE - separation
1шт.
28
NSS
NOT SOLD SEPARAT
PISTON - air dryer
1шт.
29
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
30
165-142
HEX SOC SCREW,1/4" - 20 x 5/8"
BOLT - hex socket head, 1/4 NC x 5/8 inch
4шт.
31
NSS
NOT SOLD SEPARAT
BASE - air dryer, with heater element
1шт.
32
NSS
NOT SOLD SEPARAT
FLANGE - exhaust
1шт.
33
168-75
DRIVE SCREW,Type U, Rnd Hd, #10 x 5/8"
- drive, round head, No. 10 x 5/8 inch
4шт.
34
NSS
NOT SOLD SEPARAT
WASHER - diaphragm retaining
1шт.
35
113-4
BOLT,Hex, 1/4" - 20 x 1", Gr 5
1шт.
304249A1
KIT
cartridge, dessicant
1шт.
304253A1
KIT
thermo, heater, 24V
1шт.
304257A1
KIT
purge, valve maint.
1шт.
304261A1
KIT
ASSEMBLY end cover
1шт.
304262A1
KIT
ASSEMBLY purge valve
1шт.
