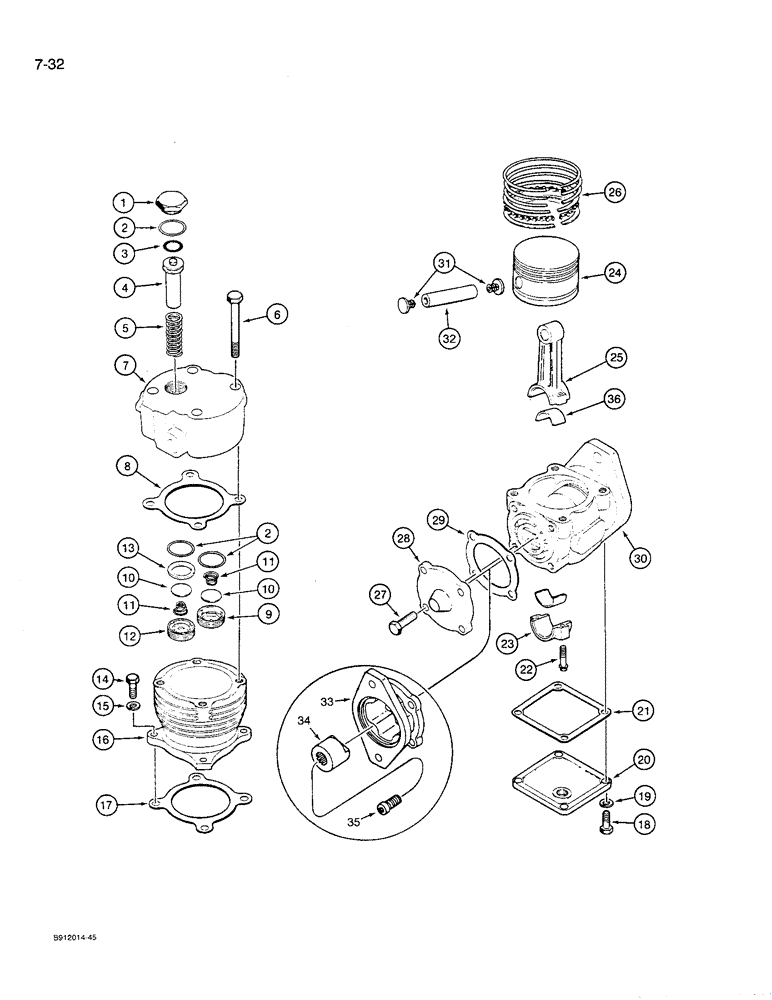

Запчасти Case 621 (7-32) - AIR COMPRESSOR, A77742 (07) - BRAKES
№
Артикул
Название
Примечание
Количество
A77742
COMPRESSOR
ASSEMBLY - air, Includes: Ref. 1 - 36
1шт.
1
NSS
NOT SOLD SEPARAT
COVER - unloader pin, air compressor - A77742
1шт.
2
NSS
NOT SOLD SEPARAT
WASHER - flat, cylinder head, air compressor - A77742
3шт.
3
NSS
NOT SOLD SEPARAT
O-RING - pin, unloader, air compressor - A77742
1шт.
4
NSS
NOT SOLD SEPARAT
PIN - unloader, air compressor - A77742
1шт.
5
NSS
NOT SOLD SEPARAT
SPRING - unloader pin, air compressor - A77742
1шт.
6
NSS
NOT SOLD SEPARAT
BOLT - hex, special, cylinder head mounting, air compressor - A77742
4шт.
7
NSS
NOT SOLD SEPARAT
HEAD - cylinder, air compressor - A77742
1шт.
8
NSS
NOT SOLD SEPARAT
GASKET - cylinder head, air compressor - A77742
1шт.
9
NSS
NOT SOLD SEPARAT
SEAT - exhaust valve, air compressor - A77742
1шт.
10
NSS
NOT SOLD SEPARAT
VALVE - disc, exhaust or inlet, air compressor - A77742
2шт.
11
NSS
NOT SOLD SEPARAT
SPRING - valve, air compressor - A77742
2шт.
12
NSS
NOT SOLD SEPARAT
STOP - inlet valve, air compressor - A77742
1шт.
13
NSS
NOT SOLD SEPARAT
SEAT - inlet valve, air compressor - A77742
1шт.
14
NSS
NOT SOLD SEPARAT
BOLT - hex, special, cylinder block mounting, air com pressor - A77742
4шт.
15
NSS
NOT SOLD SEPARAT
WASHER - lock, special, air compressor - A77742
4шт.
16
NSS
NOT SOLD SEPARAT
BLOCK - cylinder, air compressor - A77742
1шт.
17
NSS
NOT SOLD SEPARAT
GASKET - cylinder block, air compressor - A77742
1шт.
18
NSS
NOT SOLD SEPARAT
BOLT - hex, special, lower cover plate mounting, air compressor - A77742
4шт.
19
NSS
NOT SOLD SEPARAT
WASHER - lock, air compressor - A77742
4шт.
20
NSS
NOT SOLD SEPARAT
PLATE - lower cover, air compressor - A77742
1шт.
21
NSS
NOT SOLD SEPARAT
GASKET - cover plate, air compressor - A77742
1шт.
22
NSS
NOT SOLD SEPARAT
BOLT - flange, special, rod cap, iar compressor -77742
2шт.
23
NSS
NOT SOLD SEPARAT
CAP - rod, air compressor - A77742
1шт.
24
NSS
NOT SOLD SEPARAT
PISTON - air compressor, air compressor - A77742
1шт.
25
NSS
NOT SOLD SEPARAT
ROD - connecting, air compressor - A77742
1шт.
26
NSS
NOT SOLD SEPARAT
RINGS - piston, set of 6, iar compressor - A77742
1шт.
27
NSS
NOT SOLD SEPARAT
BOLT - hex, special, bearing cap, air compressor - A77742
4шт.
28
NSS
NOT SOLD SEPARAT
CAP - bearing, air compressor - A77742
1шт.
29
NSS
NOT SOLD SEPARAT
GASKET - bearing cap, air compressor - A77742
1шт.
30
NSS
NOT SOLD SEPARAT
CRANKCASE - air compressor - A77742
1шт.
31
NSS
NOT SOLD SEPARAT
PLUG - pin, air compressor - A77742
2шт.
32
NSS
NOT SOLD SEPARAT
PIN - piston, air compressor - A77742
1шт.
33
NSS
NOT SOLD SEPARAT
ADAPTER - power steering, iar compressor - A77742
1шт.
Items 33, 34, 35, are not used on the 621 per tech, both pubs and staff.(mck 11-1)
1шт.
34
NSS
NOT SOLD SEPARAT
COUPLING - power steering, air compressor - A77742
1шт.
35
NSS
NOT SOLD SEPARAT
BOLT - hex socket, special, coupling, air compressor - A77742
1шт.
36
NSS
NOT SOLD SEPARAT
BEARING - connecting rod, air compressor - A77742
1шт.
J559501
PISTON ROD/GLAND
KIT - piston and rod, includes items 26, 31, 32, and 36, air compressor repair kit
1шт.
J559502
KIT
- bearing, connecting rod, item 36 only, air compressor repair kit
1шт.
J559503
KIT
- gasket, includes items 1, 2, 3, 5, 8, 17, 21, 29, and air inlet and engine mounting gaskets, not shown, air compressor repair kit
1шт.
J559505
KIT
- cylinder head, water-cooled units, includes items 1 - 5, and 7 - 13, air compressor repair kit
1шт.
J559506
KIT
- unloader, includes items 2 - 5 and lubricant, air compressor repair kit
1шт.
J559507
KIT
- head repair, includes items 2 - 5, 8 - 13, and air intake and governor direct mounting gaskets, not shown, air compressor repair kit
1шт.
J559508
PISTON RING SET
KIT - piston ring, item 26 only, air compressor repair kit
1шт.
