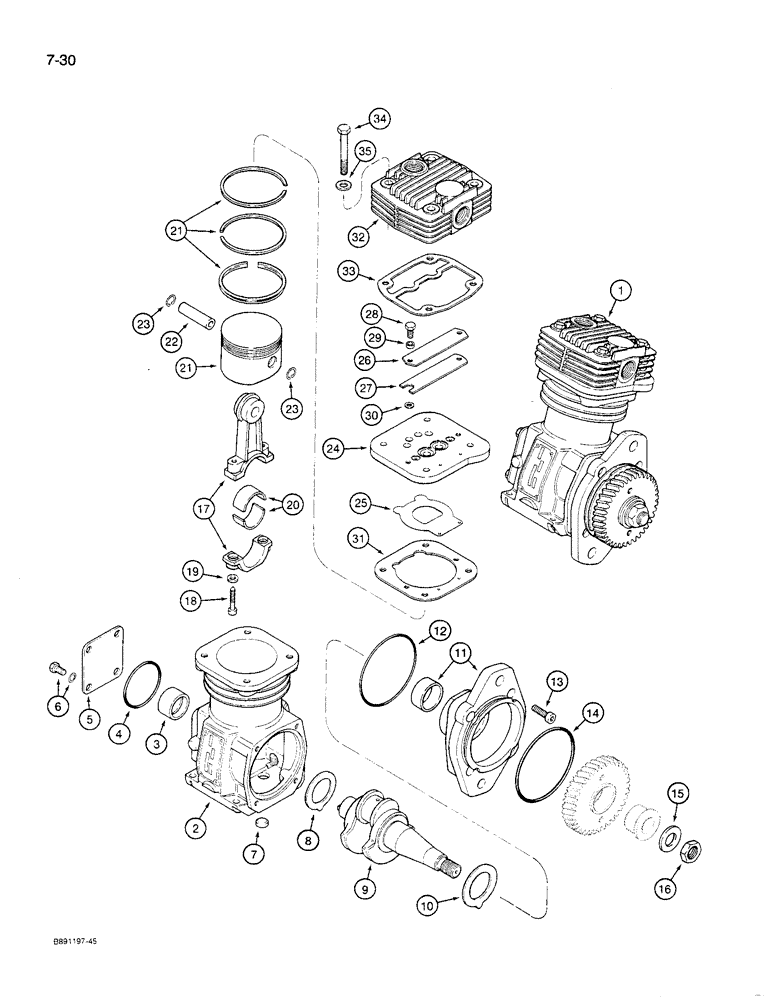

Запчасти Case 621 (7-30) - AIR COMPRESSOR, J912703 (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
J912703
COMPRESSOR
ASSEMBLY - air, see Figure 7-12 for mounting, Includes: Ref. 2 - 35
1шт.
2
NSS
NOT SOLD SEPARAT
HOUSING - compressor, Includes: Ref. 3
1шт.
3
N13160
BUSHING
- compressor housing
1шт.
4
A184123
O-RING,57 mm ID x 3 mm
- housing
1шт.
5
A184124
COVER
- compressor housing
1шт.
6
814-8012
BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd
- hex, 8 - 1.25 x 12 mm
4шт.
7
A184127
TUBE
PLUG - housing
2шт.
8
A184130
WASHER
- friction
1шт.
9
A189075
CRANKSHAFT
- compressor
1шт.
10
A184125
WASHER
- friction
1шт.
11
A184128
HOUSING
- flange
1шт.
RE IT NO. 11, BUSHING NO. IS N13185
1шт.
12
N13164
O-RING
- flange housing
1шт.
13
862-8025
HEX SOC SCREW,M8 x 25mm, Cl 12.9
BOLT - hex socket, 8 - 1.25 x 25 mm, class 12.9
4шт.
14
A184133
O-RING,90 mm ID x 5 mm
- crankshaft cover
1шт.
15
895-11018
WASHER,M18 x 34 x 3
- flat, 20 x 34 x 3 mm, crankshaft
1шт.
16
525-5110
NUT,M18 x 1.5, Cl 8
- hex, 18 mm - 1.5
1шт.
17
N13168
ROD
ASSEMBLY - connecting, Includes: Ref. 18 & 19
1шт.
18
NSS
NOT SOLD SEPARAT
BOLT - hex socket, 6 - 1 x 35 mm
2шт.
19
NSS
NOT SOLD SEPARAT
WASHER - connecting rod
2шт.
20
N13167
BEARING LINER
BEARING - connecting rod
2шт.
21
A184131
PISTON
ASSEMBLY - compressor, Includes: Ref. 22 & 23
1шт.
22
NSS
NOT SOLD SEPARAT
PIN - piston
1шт.
23
NSS
NOT SOLD SEPARAT
RING - piston pin retaining
2шт.
24
N13171
VALVE
PLATE ASSEMBLY - valve, Includes: Ref. 25 - 30
1шт.
25
N13174
PLATE
VALVE - inlet
1шт.
26
NSS
NOT SOLD SEPARAT
STOP - delivery valve
1шт.
27
N13175
VALVE
- delivery
1шт.
28
NSS
NOT SOLD SEPARAT
BOLT - hex, 6 - 1 x 1.5 mm
2шт.
29
NSS
NOT SOLD SEPARAT
BUSHING - valve stop
2шт.
30
NSS
NOT SOLD SEPARAT
WASHER - delivery valve
1шт.
31
N13170
SEAL
- valve
1шт.
32
A184132
HEAD
- compressor
1шт.
33
N13172
SEAL
- compressor head
1шт.
34
514-612
BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8, Full Thd
- hex, 8 - 1.25 x 65 mm
4шт.
35
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
4шт.
