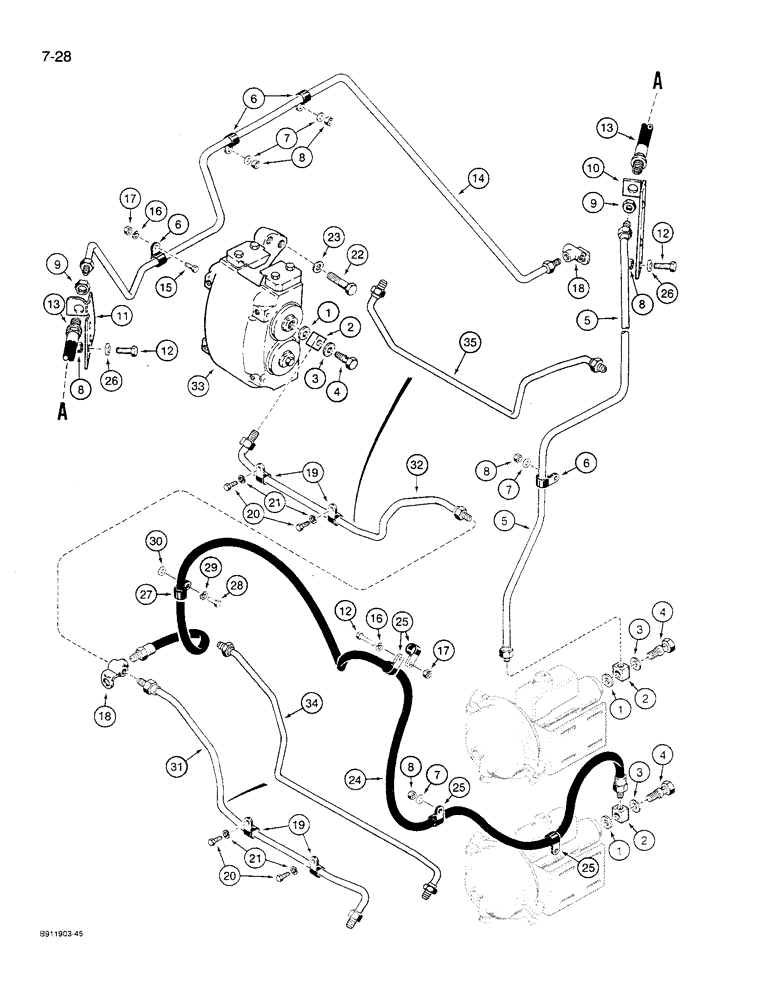

Запчасти Case 621 (7-28) - BRAKE ACTUATORS TO WHEEL CYLINDERS (07) - BRAKES

1

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - adapter, .540 inch (13.72 mm) ID, inner, brake actuators to wheel cylinders

6шт.

2

A18531

FITTING

- special, brake actuators to wheel cylinders

6шт.

3

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, brake actuators to wheel cylinders

6шт.

4

A12864

BOLT

- special, brake actuators to wheel cylinders

6шт.

5

L128121

TUBE,6.35 mm OD

- front brake, upper brake actuator to hose, brake actuators to wheel cylinders

1шт.

6

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- retaining, brake actuators to wheel cylinders

4шт.

7

S95569

WASHER

- flat, hardened, brake actuators to wheel cylinders

4шт.

8

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, , Brake actuators to wheel cylinders 3/8"-16, GB

8шт.

9

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex jam, 5/8 inch NF, Brake actuators to wheel cylinders

2шт.

10

L119129

SUPPORT

BRACKET - brake hose, rear, brake actuators to wheel cylinders

1шт.

11

L129465

SUPPORT

BRACKET - brake hose, front, brake actuators to wheel cylinders

1шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

brake actuators to wheel cylinders Hex, 3/8"-16 x 1 1/2", G5

4шт.

13

L119035

HOSE,3.18 mm ID x 450.00 mm, SAE 1401

Brake Actuators to Wheel Cylinders 3.18 mm ID x 450.00 mm, SAE 1401

1шт.

14

L119024

TUBE,6.35 mm OD

- front brake, hose to front axle, brake actuators to wheel cylinders

1шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Brake actuators to wheel cylinders

1шт.

16

492-11038

LOCK WASHER,3/8"

brake autuators to wheel cylinders 3/8"

2шт.

17

425-106

NUT,3/8"-16, Cl 5

Brake actuators to wheel cylinders 3/8"-16, G5

2шт.

18

L76365

FITTING

TEE - brake lines, at axles, brake actuators to wheel cylinders

2шт.

19

A38799

CLAMP

- tubes, brake line, brake actuators to wheel cylinders

8шт.

20

413-46

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5

- hex, 1/4 NC x 3/8 inch, brake actuators to wheel cylinders

8шт.

21

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Brake actuators to wheel cylinders 1/4"

8шт.

22

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8, brake actuators to wheel cylinders

24шт.

23

L79179

WASHER

- flat, hardened, brake actuators to wheel cylinders

24шт.

24

L117847

HOSE,4.76mm ID x 1750mm L

Lower Actuator to Rear Axle, Brak Actuators to Wheel Cylinders 4.76 mm ID x 1750.00 mm, SAE J1401

1шт.

25

49838

CLAMP

- mounting, tube and hose, hose clamp uses existing brake actuator mounting hardware, brake actuators to wheel cylinders

4шт.

26

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Brake actuators to wheel cylinders 3/8"

4шт.

27

S15543

CLAMP,7/16", Insul, 1/2" Bolt

- hose to rear axle, brake actuators to wheel cylinders

1шт.

28

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

Brake actuators to wheel cylinders Hex, M12 x 20, 8.8, Full Thd

1шт.

29

892-11012

LOCK WASHER,M12

WASHER, LOCK, , Brake Actuators to Wheel Cylinders M12

1шт.

30

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Brake Actuators to Wheel Cylinders M13.5 x 24.5 x 3, HT

1шт.

31

L124099

TUBE ASSY.,6.35 mm OD

TUBE - brake lines, left-hand front, not shown, and right-hand rear, shown, prior to P.I.N. JAK0027127

2шт.

32

L124101

TUBE ASSY.,6.35 mm OD x 544, 475 mm L

TUBE - brake lines, right-hand front, not shown, and left-hand rear, shown, Serial Range: -JAK0027127

2шт.

33

L127645

BRAKE CALIPER

CALIPER ASSEMBLY - disc brake, service replacement part, for L127646, parts list Figure 7-48, Serial Range: -JAK0027127

4шт.

33

L127645R

REMAN-BRAKE ASSY.

621, BSN JAK0027127

4шт.

33

L127645C

CORE-BRAKE ASSY.

Return Number

4шт.

34

L129450

TUBE,6.35 mm OD

- brake lines, left-hand front, not shown, and right-hand rear, shown, Start Serial: JAK0027127

2шт.

35

L129452

TUBE,6.35 mm OD

- brake lines, right-hand front, not shown, and left-hand rear, shown, Start Serial: JAK0027127

2шт.

36

L129310

BRAKE CALIPER

CALIPER ASSEMBLY - disc brake, not shown, parts list and illustration shown on Figure 7-48 & 7-50, Start Serial: JAK0027127

4шт.
