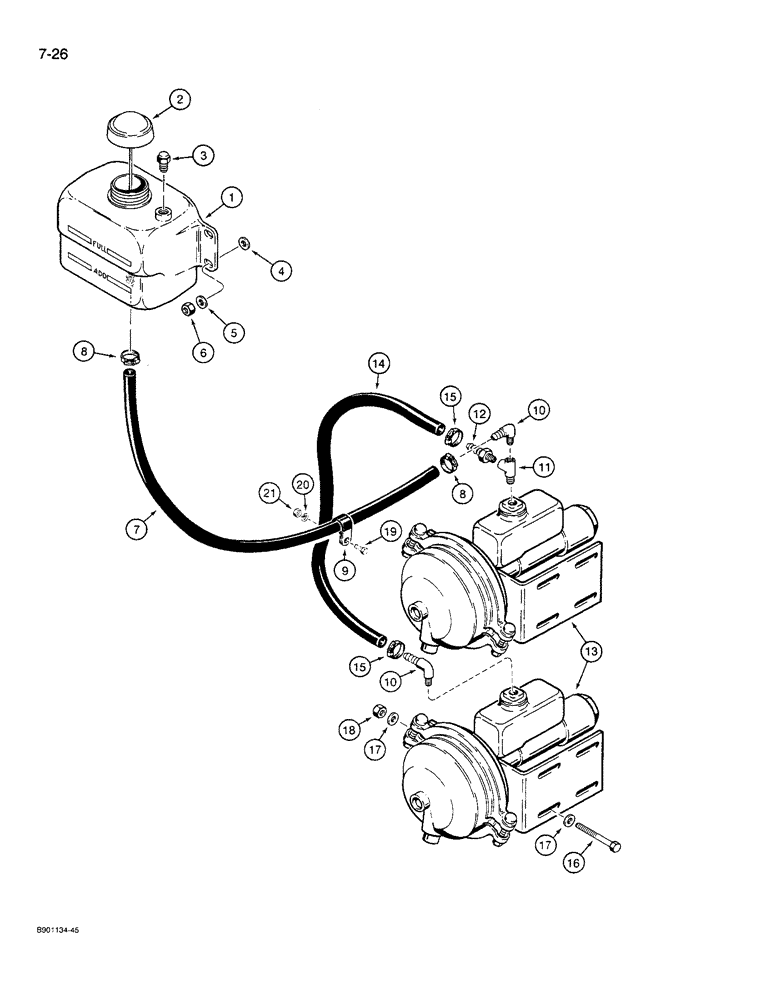

Запчасти Case 621 (7-26) - BRAKE FLUID RESERVOIR TO BRAKE ACTUATORS (07) - BRAKES

1

L127739

RESERVOIR

- brake fluid

1шт.

2

L127742

CAP

- reservoir, with tether

1шт.

3

L129154

FITTING

BREATHER - reservoir

1шт.

4

S95569

WASHER

- flat, special

4шт.

5

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

6

231-1445

NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC

4шт.

7

L128937

HOSE,6.4 mm ID x 960.00 mm, SAE J1403

Actuator Supply 6.4 mm ID x 960.00 mm, SAE J1403

1шт.

8

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

adj. #4, 0.25/0.62 Type F Worm

2шт.

9

49838

CLAMP

- mounting, hose

1шт.

10

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 1/4 inch barb end x PT

2шт.

11

217-1062

TEE,1/8" - 18 Female x 1/4" - 18 Male Run

- 1/4 inch PT female branch x female PT x PT

1шт.

12

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

ADAPTER - straight, 1/4 barb end x 1/4 inch PT

1шт.

13

L113007

CYLINDER

ACTUATOR ASSEMBLY - brake, parts list Figure 7-42, use with L127645 brake caliper shown on Figure 7-48, Serial Range: -JAK0027127

2шт.

Before ordering actuator, visually identify which brake caliper you have by referring to Figures 7-48 through 7-50.

1шт.

13

L125170

CYLINDER

ACTUATOR ASSEMBLY - brake, parts list Figure 7-42, use with L129310 brake caliper shown on Figure 7-50 JAK0027127 to

2шт.

Before ordering actuator, visually identify which brake caliper you have by referring to Figures 7-48 through 7-50.

1шт.

14

L129088

HOSE,6.4 mm ID x 394.00 mm, SAE J1403A

1шт.

15

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

adj. #4, 0.25/0.62 Type F Worm

2шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

17

D41740

WASHER

- flat, 25/64 x 1 x 7/64 inch, hardened

8шт.

18

425-106

NUT,3/8"-16, Cl 5

4шт.

19

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.
