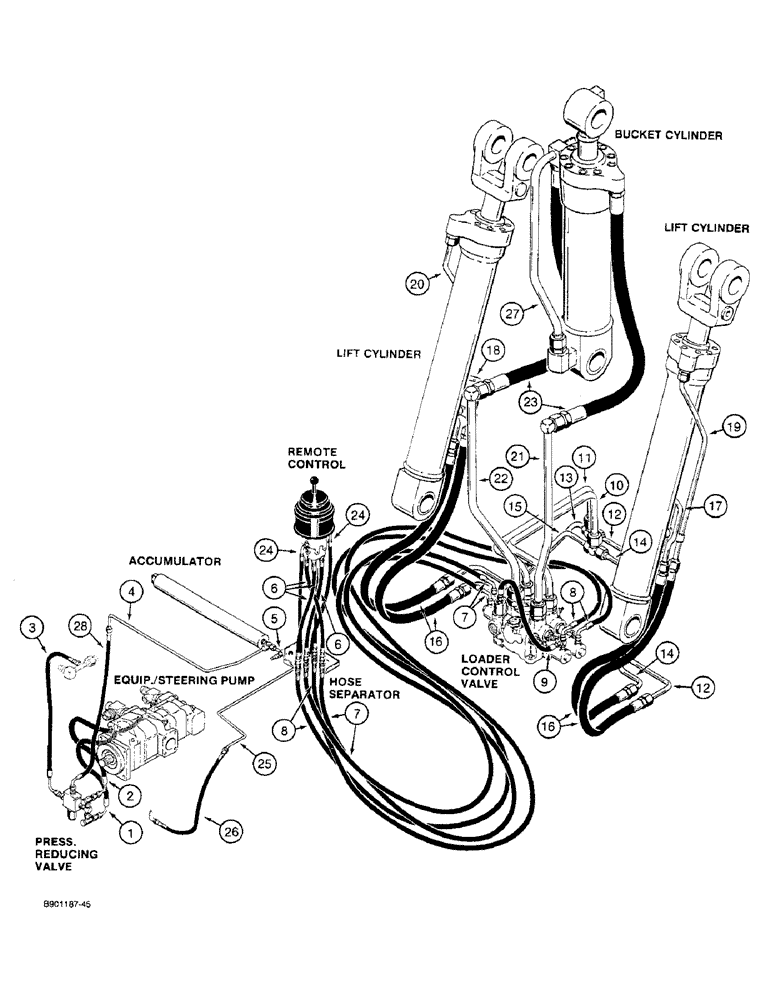

Запчасти Case 621 (1-16) - PICTORIAL INDEX, LOADER HYD. CIRCUIT, TWO SPOOL CONTROL VALVE, PUMP TO REMOTE CONTROL & CYLINDERS (00) - PICTORIAL INDEX

1

Hose, tee at steering pump to pressure reducing valve, Figure 8-62

1шт.

2

Hose, fitting at steering pump to pressure reducing valve, Figure 8-62

1шт.

3

Hose, pressure reducing valve to return tube, Figure 8-62

1шт.

4

Tube, hose at pressure reducing valve to tee at accumulator, Figure 8-62

1шт.

5

Tube, accumulator to hose separator, Figure 8-62

1шт.

6

Hose, hose separator to remote control, Figure 8-46, 8-48

1шт.

7

Hose, hose separator to ports 1B and 2A, Figure 8-50

1шт.

8

Hose, hose separator to ports 1A and 2B, Figure 8-50

1шт.

9

Hose, inlet and outlet section to tee at port 1A, Figure 8-50

1шт.

10

Supply tube, right-hand, at valve to cylinders, Figure 8-10

1шт.

11

Supply tube, left-hand, at valve to cylinders, Figure 8-10

1шт.

12

Lift tube, right-hand rod end, Figure 8-10

1шт.

13

Lift tube, left-hand rod end, Figure 8-10

1шт.

14

Lift tube, right-hand closed end, Figure 8-10

1шт.

15

Lift tube, left-hand closed end, Figure 8-10

1шт.

16

Hose, at cylinders, Figure 8-10

1шт.

17

Tube, right-hand, cylinder closed end, Figure 8-10

1шт.

18

Tube, left-hand, cylinder closed end, Figure 8-10

1шт.

19

Tube, right-hand, cylinder rod end, Figure 8-10

1шт.

20

Tube, left-hand, cylinder rod end, Figure 8-10

1шт.

21

Supply tube, right-hand, Figure 8-12

1шт.

22

Supply tube, left-hand, Figure 8-12

1шт.

23

Hose, tube to bucket cylinder, Figure 8-12

1шт.

24

Hose, remote control to hose separator, hydraulic reservoir and pressure reducing valve ports, Figure 8-46, 8-48

1шт.

25

Tube, hose separator to hose at hydraulic reservoir, Figure 8-62

1шт.

26

Hose, tube to hydraulic reservoir, Figure 8-62

1шт.

27

Tube, bucket cylinder, closed end, Figure 8-12

1шт.

28

Hose, pressure reducing valve to tube at accumulator, Figure 8-62

1шт.
