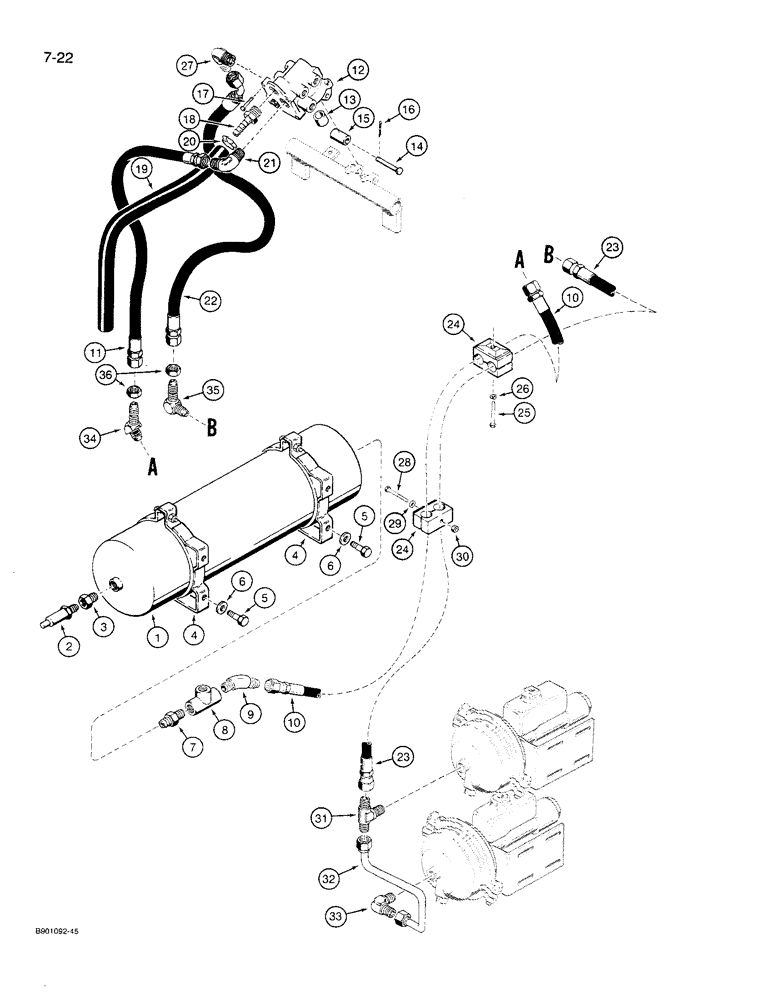

Запчасти Case 621 (7-22) - UPPER RESERVOIR TO BRAKE VALVE AND ACTUATORS (07) - BRAKES

1

L14823

TANK

RESERVOIR - air, brake system, upper

1шт.

2

L48992

VALVE,1/4"

- check, air reservoir, rear

1шт.

3

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

4

L110438

SUPPORT

BRACKET - reservoir, mounting

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

6

D41740

WASHER

- flat, hardened

4шт.

7

217-196

FITTING,1/2" - 14 Male NPTF x 1/2" - 14 Male NPTF

NIPPLE - hex, 1/2 inch PT

1шт.

8

217-14

TEE,1/2"-14 NPTF Fem

- pipe, 1/2 inch

1шт.

9

218-894

ELBOW,45 Degree, 3/8", 37 Degree x 1/2", NPTF, Brass

- 45 degree, 3/4-16 flare x 1/2 inch PT

1шт.

10

L119033

AIR HOSE,12.70 mm ID x 2175.00 mm, SAE J1402 A

Supply 12.70 mm ID x 2175.00 mm, SAE J1402 A

1шт.

11

1340426C1

HOSE

- 460 mm long, supply

1шт.

12

1970018C3

BRAKE VALVE

ASSEMBLY - brake, parts list Figure 7-40

1шт.

13

L124593

TAPPET

PLUNGER - valve, brake

1шт.

14

141-59

CLEVIS PIN,3/8" x 2 1/4"

PIN, CLEVIS, 3/8" x 2 1/4"

1шт.

15

1339691C1

SHIFTER ROLLER

ROLLER - brake actuating

1шт.

16

432-616

COTTER PIN,3/32" x 1"

PIN, SPLIT (COTTER), 3/32" x 1"

1шт.

17

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

18

1340073C1

FITTING

ADAPTER - straight, 3/8 barb end x 1/2 inch PT

1шт.

19

1340074C1

HOSE

- 3/8 (10) x 36 inch (914 mm) long, exhaust, cut from 1338159C1 bulk hose, see below

1шт.

20

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

adj. #4, 0.25/0.62 Type F Worm

1шт.

21

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT

1шт.

22

1340427C1

HOSE

- 500 mm long, delivery

1шт.

23

L127651

AIR HOSE,12.70 mm ID x 1950.00 mm, SAE J1402 A

Delivery 12.70 mm ID x 1950.00 mm, SAE J1402 A

1шт.

24

L107932

CLAMP

- double, includes both plastic halves and top steel plate

2шт.

25

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, 3/4-16 flare x 3/8 inch PT

1шт.

28

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

29

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

30

231-1445

NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC

1шт.

31

218-1191

TEE,3/4"-16, 37 Degree x 1/2"-14, NPTF Br

- 3/8 PT branch s 3/4-16 inch flare x flare

1шт.

32

101230A1

TUBE,173, 158 mm Length

- connecting, upper actuator to lower actuator

1шт.

33

218-889

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8", NPTF, Brass

- 90 degree, 3/4-16 flare x 3/8 inch PT

1шт.

34

218-715

ELBOW,45 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- 45 degree, 3/4-16 inch flare x bulkhead flare

1шт.

35

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

36

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.

1338159C1

HOSE

- 3/8 (10) x 1200 inch (30480 mm) long

1шт.
