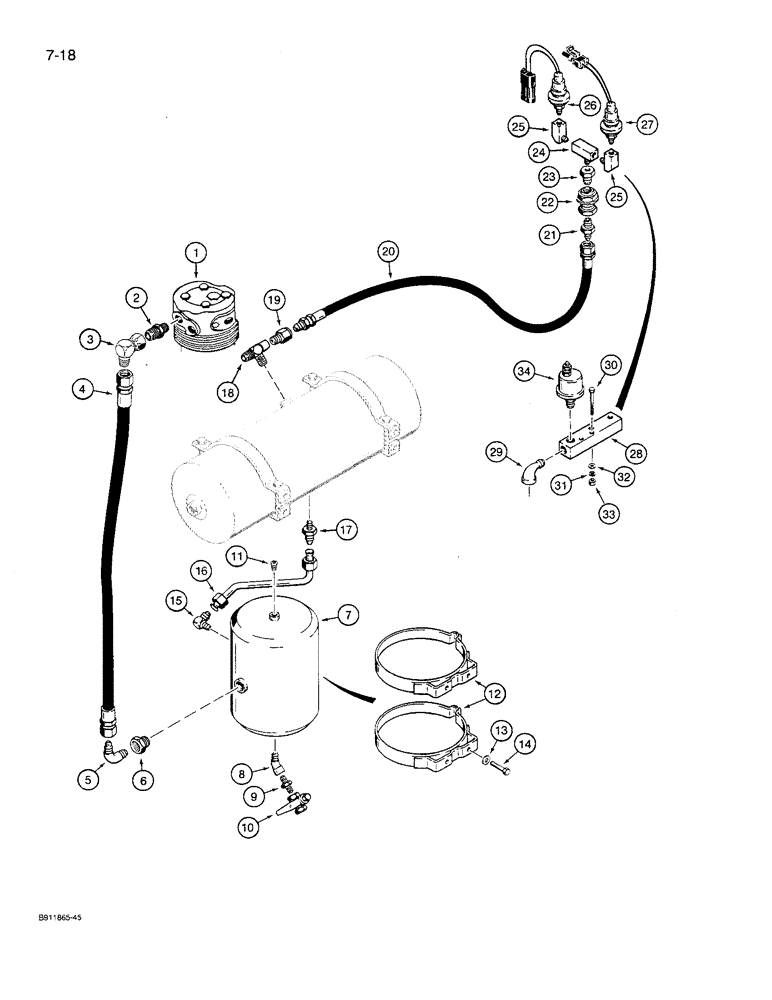

Запчасти Case 621 (7-18) - AIR COMPRESSOR INTAKE HOSE AND LOWER RESERVOIR, UNITS W/O UNLOADING VALVES, P.I.N. JAK0027274 & AFT. (07) - BRAKES

1

L129759

COMPRESSOR

ASSEMBLY - air, water cooled, production only, for service order item 6, A77742, air compressor, item 24, J909381, gear and item 25, J903269, nut, shown on Figure 7-14, units without unloading valve JAK0027274 to

1шт.

2

218-864

HYD CONNECTOR,1/2", Tube x 1/2" NPTF, 37 Degree, Brass

ADAPTER - straight, 3/4-16 flare x 1/2 inch PT, units without unloading valve JAK0027274 to

1шт.

3

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare, units without unloading valve JAK0027274 to

1шт.

4

L125668

HOSE ASSY.

HOSE - 700 mm long, air compressor to lower reservoir, see item 13, Figure 7-14 for air inlet hose from engine to compressor, units without unloading valve JAK0027274 to

1шт.

5

218-884

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2", NPTF, Brass

- 90 degree, 3/4-16 flare x 1/2 inch PT, units without unloading valve JAK0027274 to

1шт.

6

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

units without unloading valve 3/4"-14 NPTF x 1/2"-18 Fem NPTF JAK0027274 to

1шт.

7

L123951

RESERVOIR

- brake, lower, units without unloading valve JAK0027274 to

1шт.

8

217-18

ELBOW,45 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- street, 45 degree, 3/8 inch PT x female PT, units without unloading valve JAK0027274 to

1шт.

9

217-197

FITTING,3/8" - 18 Male NPTF x 3/8" - 18 Male NPTF

NIPPLE - hex, 3/8 PT x 1-7/16 inch, units without unloading valve JAK0027274 to

1шт.

10

L119050

DRAIN VALVE

VALVE - drain, air, units without unloading valve JAK0027274 to

1шт.

11

217-77

PLUG

- square, 3/8 inch PT, units without unloading valve JAK0027274 to

1шт.

12

L110438

SUPPORT

BRACKET - reservoir, lower, units without unloading valve JAK0027274 to

2шт.

13

D41740

WASHER

- flat, 3/8 x 1 x 1/8 inch, hardened, units without unloading valve JAK0027274 to

4шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

units without unloading valve Hex, 3/8"-16 x 1 1/2", G5 JAK0027274 to

4шт.

15

218-889

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8", NPTF, Brass

- 90 degree, 3/4-16 flare x 3/8 inch PT, units without unloading valve JAK0027274 to

1шт.

16

101218A1

TUBE,181, 124 mm Length

- lower reservoir to upper air reservoir, units without unloading valve JAK0027274 to

1шт.

17

218-863

HYD CONNECTOR,1/2", Tube x 3/8" NPTF, 37 Degree, Brass

ADAPTER - straight, 3/4-16 flare x 3/8 inch PT, units without unloading valve JAK0027274 to

1шт.

18

L126259

TEE

- special, hoses to air reservoir, units without unloading valve JAK0027274 to

1шт.

19

L124443

FITTING

SNUBBER - air, air reservoir to elbow at air hose, units without unloading valve JAK0027274 to

1шт.

20

L124434

AIR HOSE,10.30 mm ID x 650.00 mm, SAE J1402 A

Air Reservoir to Low Air Switch and Low Air Declutch Switch, Units with Unloading Valve 10.30 mm ID x 650.00 mm, SAE J1402 A JAK0027274 to

1шт.

21

218-861

HYD CONNECTOR,3/8", Tube x 1/4" NPTF, 37 Degree, Brass

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT, units without unloading valve JAK0027274 to

1шт.

22

217-228

FITTING

ADAPTER - str, 1/4 fem PT x 3/4-16 inch bulkhead str threads, units without unloading valve JAK0027274 to

1шт.

23

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

- 1/4 PT x 1/8 inch PT, units without unloading valve JAK0027274 to

1шт.

24

217-55

TEE,1/8"-27 NPTF Fem Run x 1/8"-27 NPTF Male Br

- 1/8 inch PT branch x female PT x female PT, units without unloading valve JAK0027274 to

1шт.

25

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street, units without unloading valve 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male JAK0027274 to

2шт.

26

A187770

IGNITION SWITCH

SWITCH - declutch, low air, units without unloading valve JAK0027274 to

1шт.

27

A187531

SWITCH

- pressure, low air, units without unloading valve JAK0027274 to

1шт.

28

L126565

MANIFOLD

- mounting, switches and sender, used on units with air pressure gauge

1шт.

29

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 degree, 1/4 inch PT x female PT, used on units with air pressure gauge

1шт.

30

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch, used on units with air pressure gauge

2шт.

31

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Used on units with air pressure gauge 1/4"

2шт.

32

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch, used on units with air pressure gauge

2шт.

33

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, used on uits with air pressure gauge

2шт.

34

L128324

SENDER UNIT

SENDER - air pressure, used on units with air pressure gauge

1шт.
