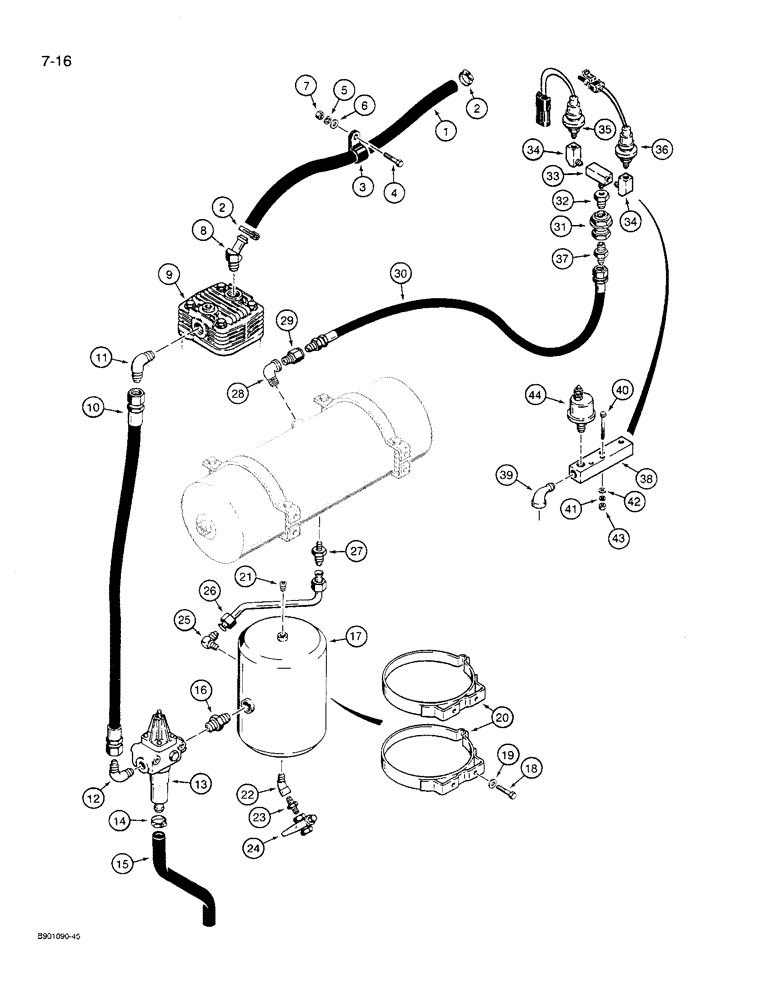

Запчасти Case 621 (7-16) - AIR COMPRESSOR INTAKE HOSE AND LOWER RESERVOIR, UNITS W/ UNLOADING VALVE, PRIOR TO P.I.N. JAK0027274 (07) - BRAKES

1

L119235

INTAKE AIR HOSE,19.00 mm ID x 860.00 mm, SAE 20R1

Air Cleaner Tube to Air Compressor, Units with unloading valve 19.00 mm ID x 860.00 mm, SAE 20R1, Serial Range: -JAK0027274

1шт.

2

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - adj, 11/16 - 1-1/4 inch dia, hose, units with unloading valve, Serial Range: -JAK0027274

2шт.

3

D43364

CLAMP

- hose, units with unloading valve, Serial Range: -JAK0027274

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, units with unloading valve, Serial Range: -JAK0027274

1шт.

5

492-11038

LOCK WASHER,3/8"

units with unloading valve 3/8", Serial Range: -JAK0027274

1шт.

6

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Unit with unloading valve 3/8", Serial Range: -JAK0027274

1шт.

7

425-106

NUT,3/8"-16, Cl 5

Units with unloading valve 3/8"-16, G5, Serial Range: -JAK0027274

1шт.

8

217-185

FITTING,45 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

ELBOW - 45 degree, 3/4 stem end x 1/2 inch PT, units with unloading valve, Serial Range: -JAK0027274

1шт.

9

J912703

COMPRESSOR

ASSEMBLY - air, parts list Figure 7-30, units with unloading valve, Serial Range: -JAK0027274

1шт.

10

L125668

HOSE ASSY.

HOSE - 700 mm long, air compressor to unloading valve, units with unloading valve, Serial Range: -JAK0027274

1шт.

11

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT, units with unloading valve, Serial Range: -JAK0027274

1шт.

12

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degree, 3/4-16 flare x 3/4 inch PT, units with unloading vlave, Serial Range: -JAK0027274

1шт.

13

L115645

VALVE

ASSEMBLY - unloading, parts list Figure 7-46, units with unloading valve, Serial Range: -JAK0027274

1шт.

14

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - adj, 11/16 - 1-1/4 inch dia, hose to unloading valve, units with unloading valve, Serial Range: -JAK0027274

1шт.

15

L117793

INTAKE AIR HOSE,19.00 mm ID x 241.00 mm, SAE 20R1

Unloading Valve Drain, Units with unloading valve 19.00 mm ID x 241.00 mm, SAE 20R1, Serial Range: -JAK0027274

1шт.

16

217-1073

HYD CONNECTOR,3/4" - 14 NPTF

NIPPLE - hex, 3/4 PT x 1-15/16 inch, units with unloading valve, Serial Range: -JAK0027274

1шт.

17

L123951

RESERVOIR

- brake, lower, units with unloading valve, Serial Range: -JAK0027274

1шт.

18

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

units with unloading valve Hex, 3/8"-16 x 1 1/2", G5, Serial Range: -JAK0027274

4шт.

19

D41740

WASHER

- flat, 3/8 x 1 x 1/8 inch, hardened, units with unloading valve, Serial Range: -JAK0027274

4шт.

20

L110438

SUPPORT

BRACKET - reservoir, lower, units with unloading valve, Serial Range: -JAK0027274

2шт.

21

221-843

PLUG,Hex Soc, 3/8"-18

- hex socket, 3/8 inch PT, lower reservoir, units with unloading valve, Serial Range: -JAK0027274

1шт.

22

217-1087

ELBOW,45 Degree, 3/8"-18 Female x 3/8"-18 Male

Street, Units with loading valve 45º, 3/8"-18 Female x 3/8"-18 Male, Serial Range: -JAK0027274

1шт.

23

217-1081

HYD CONNECTOR,3/8" - 18 NPTF

NIPPLE - hex, 3/8 PT x 1-7/16 inch, units with unloading, Serial Range: -JAK0027274

1шт.

24

L119050

DRAIN VALVE

VALVE - drain, air, units with unloading valve, Serial Range: -JAK0027274

1шт.

25

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, 3/4-16 flare x 3/8 inch PT, units with unloading valve, Serial Range: -JAK0027274

1шт.

26

L118768

TUBE,12.7 mm OD

- lower reservoir to upper air reservoir, unit with unloading valve, Serial Range: -JAK0027274

1шт.

27

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, 3/4-16 flare x 3/8 inch PT, units with unloading vlave, Serial Range: -JAK0027274

1шт.

28

221-412

ELBOW,90 Degree, 1/4"-27, NPT

- street, 90 degree, 1/4 inch PT, units with unloading valve, Serial Range: -JAK0027274

1шт.

29

L124443

FITTING

SNUBBER - air, air reservoir to elbow at air hose, units with unloading valve, Serial Range: -JAK0027274

1шт.

30

L124434

AIR HOSE,10.30 mm ID x 650.00 mm, SAE J1402 A

Air Reservoir to Low Air Switch and Low Air Declutch Switch, Units with Unloading Valve 10.30 mm ID x 650.00 mm, SAE J1402 A, Serial Range: -JAK0027274

1шт.

31

217-228

FITTING

ADAPTER - str, 1/4 fem PT x 3/4-16 inch bulkhead str threads, units with unloading valve, Serial Range: -JAK0027274

1шт.

32

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

- 1/4 PT x 1/8 inch PT, units with unloading valve, Serial Range: -JAK0027274

1шт.

33

217-55

TEE,1/8"-27 NPTF Fem Run x 1/8"-27 NPTF Male Br

- 1/8 inch PT branch x female PT x female PT, units with unloading valve, Serial Range: -JAK0027274

1шт.

34

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street, units with unloading valve 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male, Serial Range: -JAK0027274

2шт.

35

A187770

IGNITION SWITCH

SWITCH - declutch, low air, units with unloading valve, Serial Range: -JAK0027274

1шт.

36

A187531

SWITCH

- pressure, low air, units with unloading valve, Serial Range: -JAK0027274

1шт.

37

218-861

HYD CONNECTOR,3/8", Tube x 1/4" NPTF, 37 Degree, Brass

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT, brass, used on units with air pressure gauge

1шт.

38

L126565

MANIFOLD

- mounting, switches and sender, used on units with air pressure gauge

1шт.

39

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 degree, 1/4 inch PT x female PT, used on units with air pressure gauge

1шт.

40

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch, used on units with air pressure gauge

2шт.

41

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Used on units with air pressure gauge 1/4"

2шт.

42

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch, used on units with air pressure gauge

2шт.

43

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, used on units with air pressure gauge

2шт.

44

L128324

SENDER UNIT

SENDER - air pressure, used on units with air pressure gauge

1шт.
