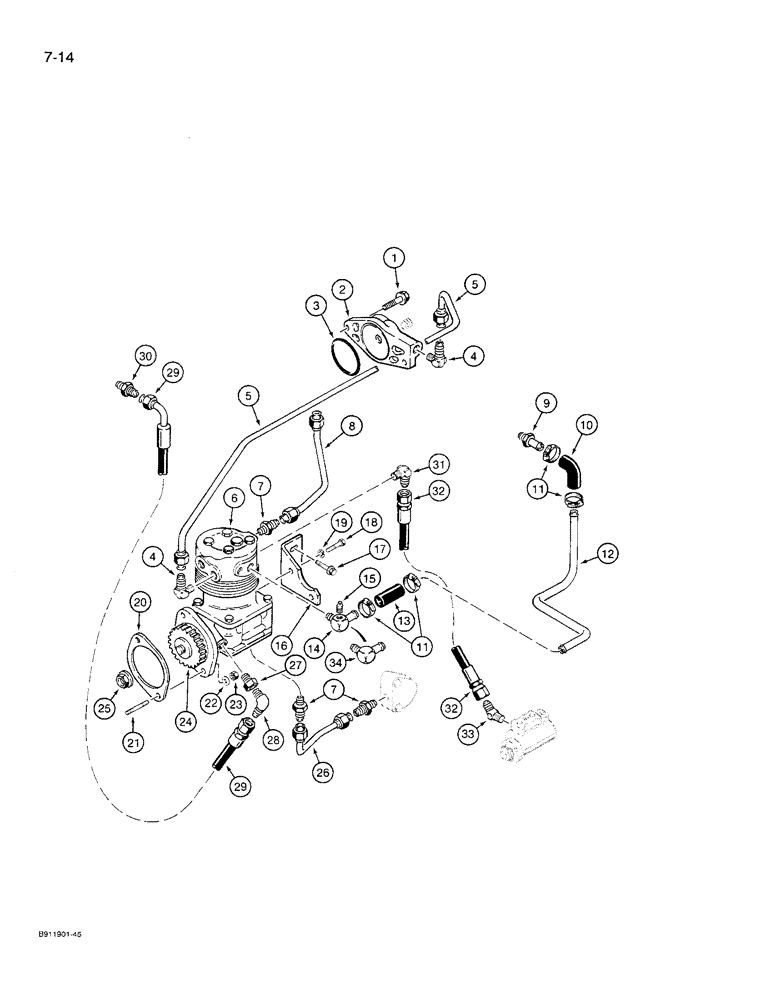

Запчасти Case 621 (7-14) - AIR COMPRESSOR MOUNTING AND SYSTEM, P.I.N. JAK0027274 AND AFTER (07) - BRAKES

1

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

- hex flange, 12 mm - 1.75 x 30 mm, Grade 10.9

2шт.

2

J910529

CONNECTION

- water transfer, uses plug removed from engine

1шт.

3

J910530

SEAL

- water connection

1шт.

4

222-4050

ELBOW,90 Degree, 16/18"-24 Fem x 1/2"-14 NPTF

- 90 degree, compression, 1/2 tube OD x 1/2 inch PT

2шт.

5

L129670

TUBE,12.7 mm OD

- compressor, water inlet

1шт.

L129759

COMPRESSOR

ASSEMBLY - air, water cooled, not shown, production only, includes items 24 and 25 shown below, for service order item 6, A77742, air compressor, item 24, J909381, gear and item 25, J903269, nut

1шт.

6

A77742

COMPRESSOR

ASSEMBLY - air, water cooled, parts list Figure 7-32

1шт.

7

222-4030

HYD CONNECTOR,13/16"-18 x 1/2" NPTF

ADAPTER - compression, 1/2 tube OD x 1/2 inch PT

3шт.

8

L129672

TUBE,12.7 mm OD

- compressor, water outlet, connects to elbow and adapter supplied with engine

1шт.

9

J915182

COUPLING

-, Serial Range: hose,-engine

1шт.

10

J911935

AIR HOSE,19.05 mm ID x 44.00 mm

Formed Elbow 19.05 mm ID x 44.00 mm

1шт.

11

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, #10, 0.56/1.06 Type F Worm

4шт.

12

L129673

AIR INTAKE TUBE,19.04 mm OD

TUBE - compressor, air inlet

1шт.

13

J911936

AIR HOSE,19.05 mm ID x 51.00 mm

Compressor, Air Inlet 19.05 mm ID x 51.00 mm

1шт.

14

J908221

COUPLING

ELBOW - 90 degree, special, no longer available, order item 34 217-129 elbow

1шт.

15

217-75

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF, Brass

PLUG - square, 1/8 inch PT, use with J908221 elbow, if used

1шт.

16

J912506

SUPPORT

BRACKET - mounting, air compressor

1шт.

17

845-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 8.8

2шт.

18

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

A77441

GASKET

- compressor mounting

1шт.

21

J913370

STUD

- compressor mounting

2шт.

22

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

23

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, M12 x 1.75, Cl 8

2шт.

24

J909381

GEAR

- drive

1шт.

25

J903269

NUT

- hex, gear retainer

1шт.

26

J914591

TUBE,12.7 mm OD x 157 mm L

- lubrication, oil drain

1шт.

27

A77749

ADAPTER

- elbow, Serial Range: hose-compressor

1шт.

28

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

90º, 7/16-45 degree flare x 1/8 inch PT

1шт.

29

J911705

HOSE

- 285 mm long, oil

1шт.

30

222-901

HYD CONNECTOR,7/16"-20 45 Degree Fl x 1/8" NPT

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

1шт.

31

218-888

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8", NPTF, Brass

- 90 degree, 9/16-18 flare x 1/8 inch PT

1шт.

32

L125667

HOSE

-, Serial Range: compressor-governor

1шт.

33

218-890

ELBOW,45 Degree, 3/8" NPTF x 1/8", NPTF, Brass

- 45 degree, 9/16-18 flare x 1/8 inch PT

1шт.

34

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

- 90 degree, 3/4 stem end x 1/2 inch PT

1шт.

THE PHANTHOM BLOCK THAT ITEM # 7 GOES INTO HAS AN ADAPTER J904692 (1) AND A GASKET (SQUARE CUT ORING J906696 (1) AND M12 X 55 MM BOLTS J901859 (2)

1шт.
