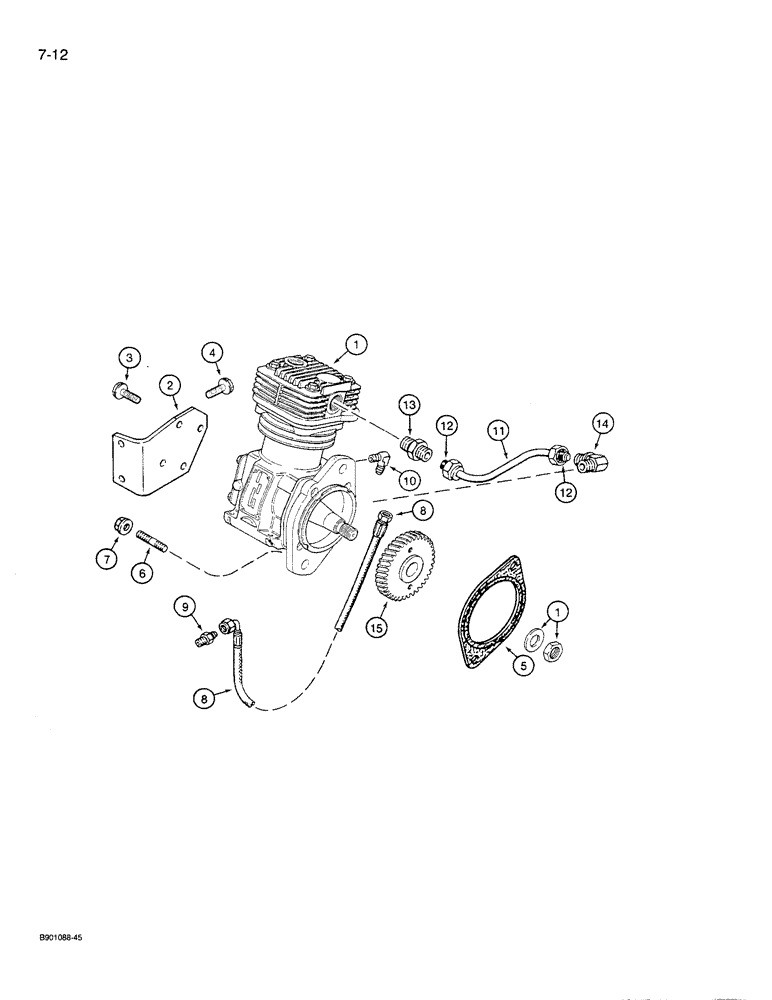

Запчасти Case 621 (7-12) - AIR COMPRESSOR MOUNTING AND SYSTEM, PRIOR TO P.I.N. JAK0027274 (07) - BRAKES

1

J912703

COMPRESSOR

ASSEMBLY - air, parts list Figure 7-30

1шт.

2

J911210

SUPPORT

BRACKET - compressor support

1шт.

3

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

4шт.

4

845-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 8.8

2шт.

5

J913192

GASKET

- compressor mounting

1шт.

6

J913370

STUD

- compressor mounting

2шт.

7

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

- hex flange, 12 mm - 1.75, class 10

2шт.

8

J911705

HOSE

- oil

1шт.

9

222-901

HYD CONNECTOR,7/16"-20 45 Degree Fl x 1/8" NPT

CONNECTOR - straight, 7/16-20 flare x 1/8 inch PT

1шт.

10

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

90º, 7/16-24 45 degree flare x 1/8 inch PT

1шт.

11

J904723

TUBE,12.7 mm OD x 127.4, 106.9 mm L

ASSEMBLY - compressor drain, Includes: Ref. 12

1шт.

12

A77515

GASKET

GROMMET - drain tube

2шт.

13

222-4030

HYD CONNECTOR,13/16"-18 x 1/2" NPTF

ADAPTER - compression, 1/2 tube OD x 1/2 inch PT

1шт.

14

222-4050

ELBOW,90 Degree, 16/18"-24 Fem x 1/2"-14 NPTF

- 90 degree, compression, 1/2 tube OD x 1/2 inch PT

1шт.

15

J909381

GEAR

- drive, includes hub

1шт.
