(7-06) - PARKING BRAKE ASSEMBLY, P.I.N. JAK0027512 AND AFTER

Запчасти Case 621 (7-06) - PARKING BRAKE ASSEMBLY, P.I.N. JAK0027512 AND AFTER (07) - BRAKES

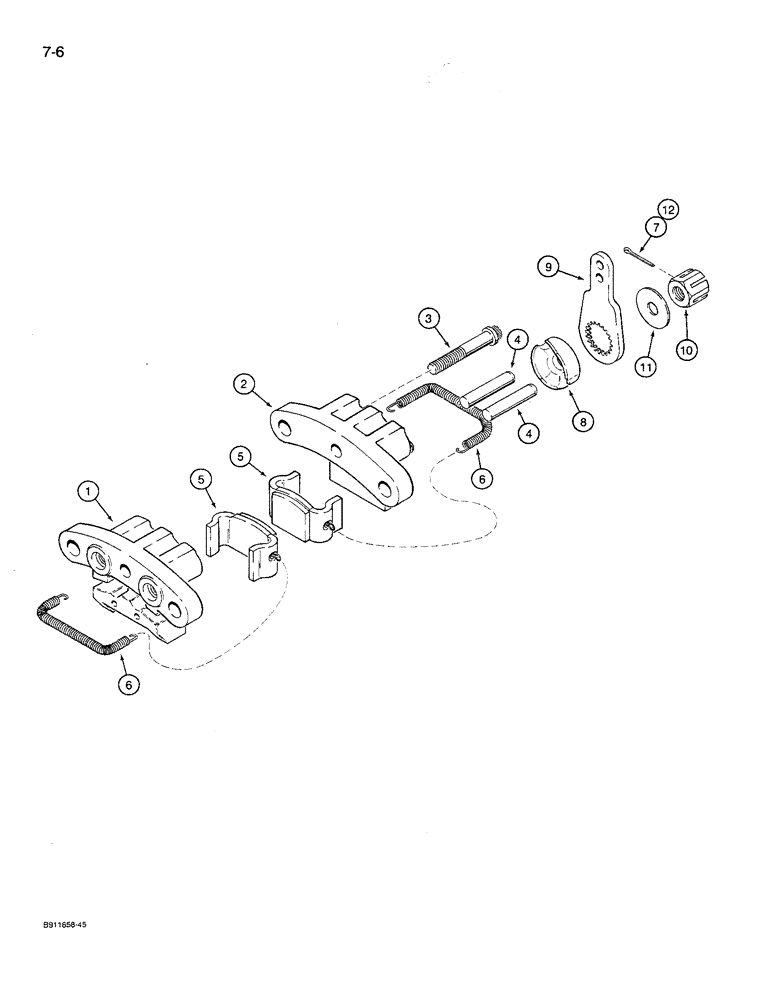

Схема запчастей Case 621 - (7-06) - PARKING BRAKE ASSEMBLY, P.I.N. JAK0027512 AND AFTER (07) - BRAKES
1
12
6
8
7
5
2
5
3
10
11
4
4
6
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

L129717

BRAKE, PARKING

BRAKE ASSEMBLY - parking, see Figure 7-08 for mounting, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

CARRIER - parking brake, transmission side

1шт.

2

NSS

NOT SOLD SEPARAT

CARRIER - parking brake, cam and lever side

1шт.

3

NSS

NOT SOLD SEPARAT

BOLT - special, 12 point

3шт.

4

101981A1

PIN

- special, straight

2шт.

101987A1

KIT

- lining, service

1шт.

101975A1

BRAKE, PARKING

LINING ASSEMBLY - parking brake, Includes: Ref. 5 & 6

2шт.

5

NSS

NOT SOLD SEPARAT

PAD - brake lining, includes holder

1шт.

6

101976A1

SPRING

- brake pad

1шт.

7

101985A1

PIN, SPLIT (COTTER)

PIN - special, cotter

1шт.

101988A1

KIT

- cam and lever, Includes: Ref. 8 & 9

1шт.

8

101982A1

CAM

- parking brake

1шт.

9

101983A1

LEVER

- brake actuator

1шт.

101992A1

SET

KIT - lever hardware

1шт.

101986A1

SLOTTED NUT

NUT AND WASHER ASSEMBLY - special, Includes: Ref. 10 & 11

1шт.

10

NSS

NOT SOLD SEPARAT

NUT - castle

1шт.

11

101984A1

WASHER

- flat

1шт.

12

101985A1

PIN, SPLIT (COTTER)

PIN - special, cotter

1шт.
