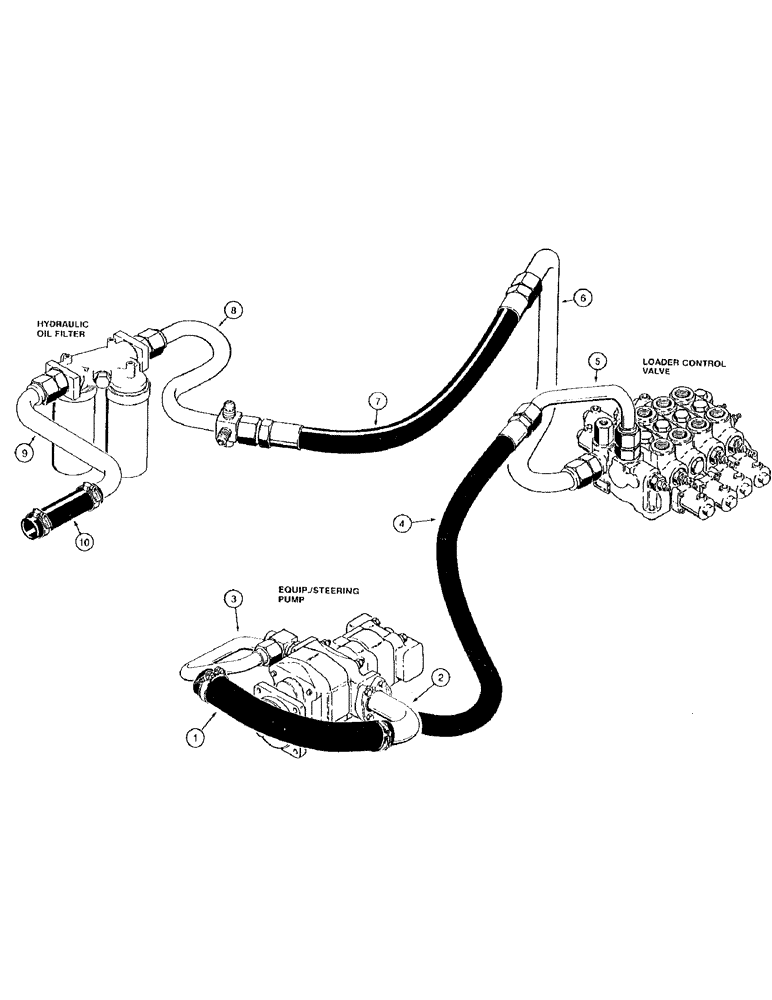

Запчасти Case 621 (1-14) - PICTORIAL INDEX, BASIC HYDRAULIC CIRCUIT, LOADER CONTROL VALVE SUPPLY AND RETURN LINES (00) - PICTORIAL INDEX

1

Suction hose, hydraulic reservoir to tube at pump, Figure 8-04

1шт.

2

Tube, from suction hose at hydraulic reservoir to pump, Figure 8-04

1шт.

3

Supply tube, pump to hose to loader control valve, Figure 8-04

1шт.

4

Supply hose, supply tube at pump to supply tube at loader control valve, Figure 8-04

1шт.

5

Supply tube, at loader control valve, Figure 8-04

1шт.

6

Return tube, from loader control valve to hose to filter, Figure 8-06

1шт.

7

Return hose, loader control valve to tube at hydraulic oil filter, Figure 8-06

1шт.

8

Return tube, hose from loader control valve to hydraulic oil filter, Figure 8-06

1шт.

9

Tube, hydraulic oil filter to hose at hydraulic reservoir, Figure 8-08

1шт.

10

Hose, tube at hydraulic oil filter to hydraulic reservoir, Figure 8-08

1шт.
