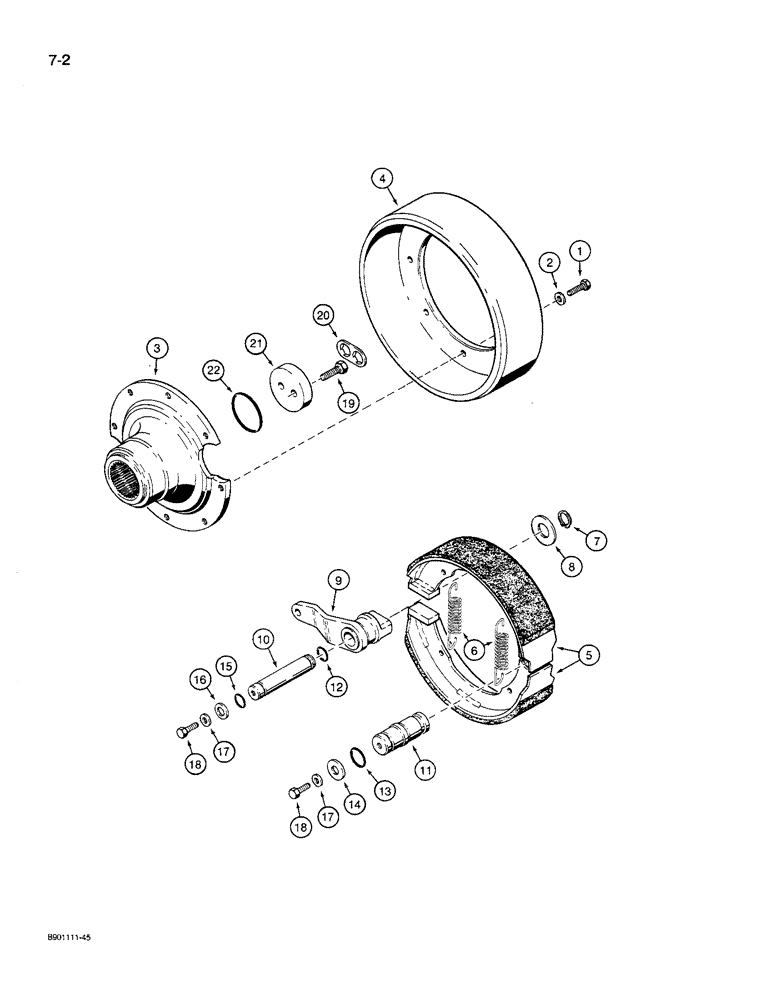

Запчасти Case 621 (7-02) - PARKING BRAKE, P.I.N. JAK0021701 THRU P.I.N. JAK0027511 (07) - BRAKES

L127731

TRANSMISSION

TRANSMISSION ASSEMBLY - includes items 2 and 3 on Figure 6-02, items 12 - 16 on Figure 6-04, item 4 and 25 on Figure 6-06, and all items on Figures 6-08 - 6-26, 6-48 - 6-52, and Figure 7-02, Includes: Ref. 1 - 22

1шт.

LR127731

REMAN-TRANSMISSION

Remanufactured Transmission; 621, Between JAK0021701 & JAK0027511, Model Number 4WG150, Stock Number 4642 054 014

1шт.

LC127731

CORE-TRANSMISSION

Return Part Number

1шт.

1

30714R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

BOLT - hex, 10 mm - 1.25 x 25, class 10.9

8шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER - flat, 11 x 21 x 2 mm

8шт.

3

S301585

SHIN

YOKE - output flange, parking brake, front

1шт.

4

S300478

BRAKE DRUM

DRUM, BRAKE DRUM - parking brake

1шт.

S301584

BRAKE, PARKING

PARKING BRAKE BRAKE ASSEMBLY - parking, Includes: Ref. 5 - 12

1шт.

5

S300590

BRAKE PAD

PAD, BRAKE SHOE AND LINING ASSEMBLY - parking brake, components are not serviced separately or available in a kit

2шт.

6

3141953R1

SPRING

SPRING - shoe return

2шт.

7

933105R1

SNAP RING,M22, Ext

RING - snap, pin

1шт.

8

S300515

WASHER

WASHER - flat, pin

1шт.

9

S301588

BRAKE CAM

LEVER - includes cam, parking brake

1шт.

10

S300514

PIN

PIN - lever mounting

1шт.

11

S300513

PIN

PIN, Spacer - brake shoe

1шт.

12

716582R1

O-RING

O-RING - large, lever mounting pin, inner

1шт.

13

S300481

O-RING,25.3mm ID x 2.4mm Width

O-RING - brake shoe spacer

1шт.

14

S300480

WASHER

WASHER - flat, 33 mm OD x 15 mm ID x 6 mm wide

1шт.

15

3140876R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

O-RING - small, lever mounting pin, outer

1шт.

16

S301623

WASHER

WASHER - flat, special

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER - flat, 11 x 21 x 2 mm

2шт.

18

931376R1

BOLT,Hex, M10 x 1.5 x 22mm, Cl 10.9, Full Thd

BOLT - hex, 10 mm - 1.25 x 22, class 10.9

2шт.

19

626-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

BOLT - hex, 8 - 1.25 x 25 mm, class 10.9

4шт.

20

S301576

LARGE PLATE

PLATE, LARGE PLATE - locking

2шт.

21

S301575

STOP

RETAINER - output yoke

2шт.

22

S301574

O-RING,4mm Thk x 38mm ID

O-RING - output yoke

2шт.
