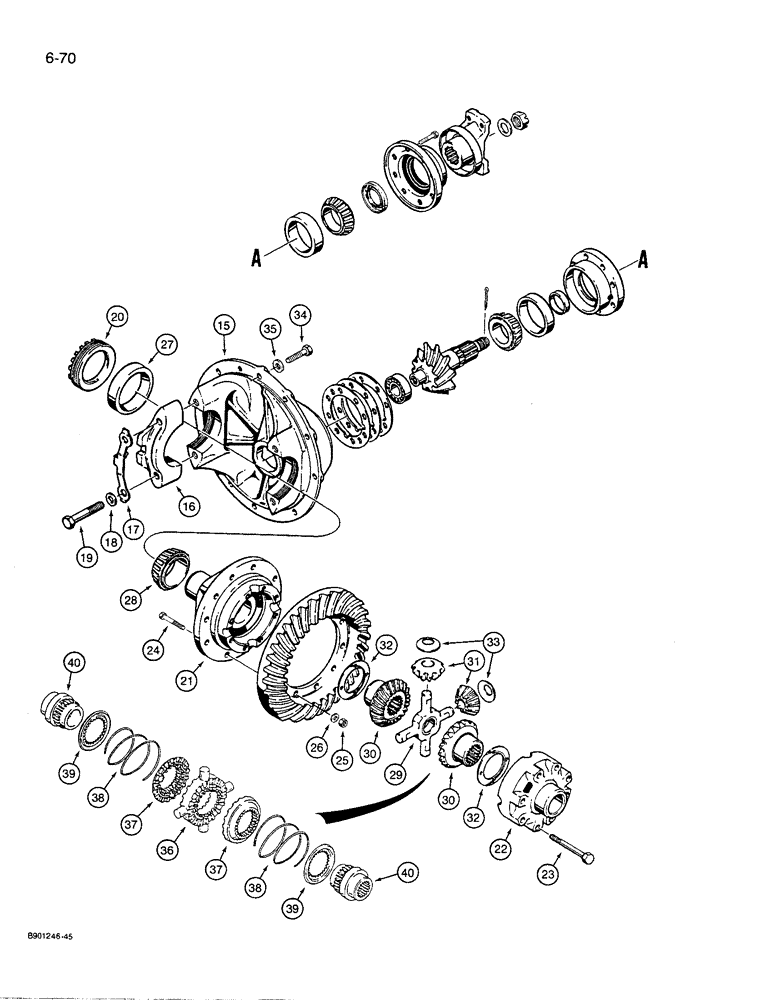

Запчасти Case 621 (6-70) - FRONT AND REAR AXLE DIFFERENTIAL (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSEMBLY - front, continued from previous Figure, see Figure 6-58 for correct axle assembly

1шт.

REF

INSTRUCTION

AXLE ASSEMBLY - rear, continued from previous Figure, if used, see Figure 6-58 for correct axle assembly

1шт.

REF

INSTRUCTION

AXLE ASSEMBLY - rear, with no-spin differential, continued from previous page, if used, see page 6-58 for correct axle assembly

1шт.

S301451

DIFFERENTIAL

ASSEMBLY - L128311, L128312, L129565, and L129566 axles, without no-spin, continued from previous page

1шт.

S301451 defferntial assembly does not include items 36 - 40, shown on Fig. 6-70

1шт.

S301483

DIFFERENTIAL

ASSEMBLY - L128313 and L129567 rear axle, with no-spin, continued from previous page

1шт.

S301483 no-spin differential assembly does not include Ref. 29 - 33 shown in this Figure

1шт.

D80558

DIFFERENTIAL

CARRIER ASSEMBLY - differential, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - carrier

1шт.

16

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

17

D74484

PLATE ASSY.

PLATE - lock

2шт.

19

D74504

WASHER

- flat

4шт.

18

826-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

- hex, 16 - 2 x 90 mm, class 10.9

4шт.

20

D74477

NUT

- special

2шт.

D74449

CAGE ASSY.

HOUSING ASSEMBLY - differential, Includes: Ref. 21 & 22

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - flange half

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - plain half

1шт.

23

514-807

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

- hex, self-locking, 12 - 1.75 x 100 mm, class 10.9

8шт.

24

S300023

WHEEL BOLT

BOLT - special, ring, Serial Range: gear-housing

12шт.

25

131-1248

LOCK NUT,1/2"-20, GC

NUT, LOCK, 1/2"-20, GC

12шт.

26

D74508

WASHER

- special, 12 mm

12шт.

27

13363D

TAPERED BEARING

CUP - bearing

2шт.

28

ST2007A

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

BEARING - tapered roller

2шт.

29

N9844

TOGGLE

SPIDER - differential, L128311 and L128312 axles

1шт.

30

D74472

GEAR

- side, L128311 and L128312 axles

2шт.

31

D74473

BEVEL GEAR

GEAR - pinion, L128311 and L128312 axles

4шт.

32

D74474

WASHER

- thrust, side gear, L128311 and L128312 axles

2шт.

33

N9843

CONE WASHER

WASHER - thrust, pinion, used with N9844 spider, L128311 and L128312 axles

4шт.

34

514-806

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

- hex, self-locking, 12 - 1.75 x 35 mm, class 10.9

10шт.

35

D74508

WASHER

- flat, 12 mm

10шт.

L35996

TOGGLE

SPIDER AND GEAR ASSEMBLY - no-spin, L128313 rear axle, Includes: Ref. 36 - 40

1шт.

36

L35997

TOGGLE

SPIDER - differential

1шт.

37

L35998

CLUTCH ASSEMBLY

CLUTCH - spider

2шт.

38

L36000

VALVE SPRING

SPRING - spider

2шт.

39

A44688

DIFFERENTIAL

RETAINER - spring

2шт.

40

L35999

PINION

GEAR - side, outer

2шт.
