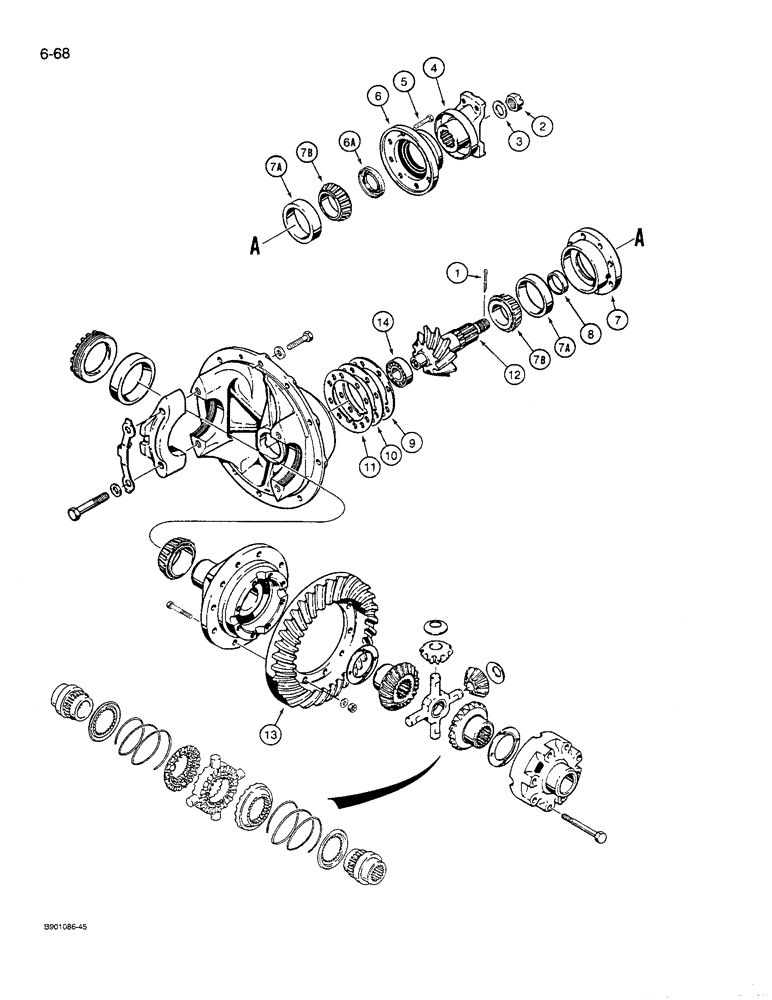

Запчасти Case 621 (6-68) - FRONT AND REAR AXLE DIFFERENTIAL (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSEMBLY - front, see Figure 6-58 for correct axle assembly

1шт.

REF

INSTRUCTION

AXLE ASSEMBLY - rear, see Figure 6-58 for correct axle assembly

1шт.

REF

INSTRUCTION

AXLE ASSEMBLY - rear, with no-spin differential, if used, see page 6-59 for correct axle assembly

1шт.

S301451

DIFFERENTIAL

ASSEMBLY - L128311, L128312, L129565, and L129566 axles without no-spin

1шт.

S301451 defferntial assembly does not include items 36 - 40, shown on Fig. 6-70

1шт.

S301483

DIFFERENTIAL

ASSEMBLY - L128313 and L129567 rear axle, with no-spin

1шт.

S301483 no-spin differential assembly does not include Ref. 29 - 33 shown in this Figure

1шт.

1

632-135

COTTER PIN,M3.2 x 45

PIN - cotter, 3 x 45 mm

1шт.

2

D74513

SLOTTED NUT

- castle, flange

1шт.

3

D74512

WASHER

- flat

1шт.

4

S300022

YOKE

FLANGE AND SLINGER - coupling

1шт.

5

514-701

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

- hex, self-locking, 10 - 1.5 x 45 mm, class 10.9

8шт.

D74479

COVER

AND SEAL ASSEMBLY - pinion shaft, Includes: Ref. 6 & 6A

1шт.

6

S301482

COVER

D74479 COVER - pinion shaft

1шт.

6a

N6265

OIL SEAL

SEAL - oil, pinion shaft

1шт.

N7071

CAGE ASSY.

CAGE AND BEARINGS - pinion shaft, Includes: Ref. 7, 7A & 7B

2шт.

7

NSS

NOT SOLD SEPARAT

CAGE - pinion shaft

1шт.

7a

F61284

BEARING CUP

CUP - bearing

2шт.

7b

A44210

ROLLER BEARING,1.75" ID x 1.25"

BEARING - tapered roller

2шт.

D80557

SET

KIT - spacer, set of 10, Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.2145 inch (5.450 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.2155 inch (5.475 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.2165 inch (5.500 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.2175 inch (5.525 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.2185 inch (5.550 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.2195 inch (5.575 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.2244 inch (5.700 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.228 inch (5.79 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.232 inch (5.89 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.236 inch (5.99 mm)

1шт.

9

D74481

SHIM,.076mm Thk

(.003") .076mm Thk

1шт.

10

D74482

SHIM,0.127mm Thk

(.005") 0.127mm Thk

1шт.

11

D74483

SHIM,0.254mm Thk

(.010") 0.254mm Thk

1шт.

S301452

GEAR

AND PINION - differential, Includes: Ref. 12 & 13

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT - pinion, differential

1шт.

Ref #12 - (8 Teeth) 04/22/96

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

Ref #13 - (37 Teeth) 04/22/96

1шт.

14

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

BEARING - pinion shaft

1шт.

Ratio for the Ring and Pinion for the Differential Assy is 4.62 : 1 04/22/96

1шт.
