Запчасти Case 621 (6-66) - REAR AXLE HOUSING AND PLANETARY (06) - POWER TRAIN

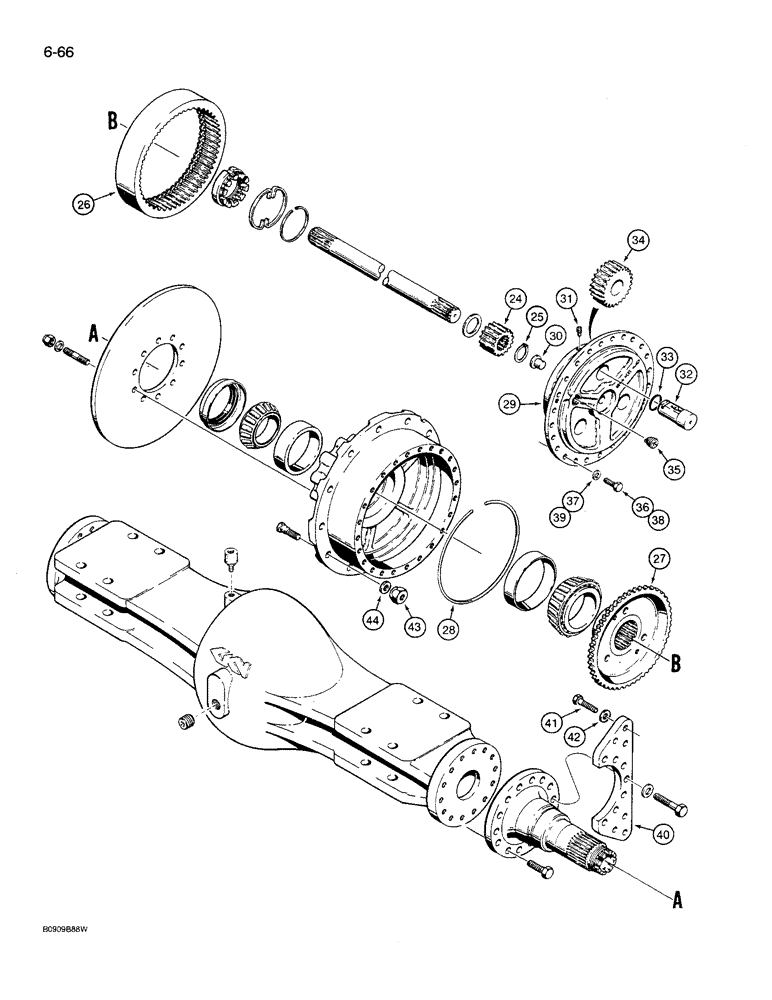

Схема запчастей Case 621 - (6-66) - REAR AXLE HOUSING AND PLANETARY (06) - POWER TRAIN
30
44
28
39
24
34
25
31
26
41
29
43
27
36
35
37
40
33
42
32
38

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

AXLE ASSEMBLY - rear, continued from previous page, see page 6-59 for correct axle assembly

1шт.

REF

INSTRUCTION

AXLE ASSEMBLY - rear, with no-spin differential, if used, continued from previous page, see page 6-59 for correct axle assembly

1шт.

24

N9839

SUN GEAR

GEAR - sun, planetary

2шт.

25

K12922

RING, SNAP

RING - snap, sun gear

2шт.

26

N9835

SLEWING RING

GEAR - ring, planetary

2шт.

27

N9841

RING, FLYWHEEL

HUB - ring gear

2шт.

28

D74456

RING

- retaining, ring gear

2шт.

29

D74451

COVER

- planetary

2шт.

30

D74467

PLUG

- thrust

2шт.

31

D74502

SET SCREW,M10 x 1.5 x 1.50mm, Gr 8.8

- set, cover

6шт.

32

D74453

SHAFT

- pinion

6шт.

33

D80559

O-RING,41.6 mm ID

- shaft seal

6шт.

34

N9837

GEAR

- pinion, planetary

6шт.

35

D74516

PLUG

- cover

2шт.

36

514-806

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

- hex, self-locking, 12 - 1.75 x 35 mm, class 10.9

46шт.

37

D74508

WASHER

- flat, 13 mm

46шт.

38

514-901

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9

- hex, self-locking, 14 - 2 x 35 mm, class 10.9, oil drain

2шт.

39

D74509

WASHER

- flat, 15 mm

2шт.

40

D74463

PLATE ASSY.

PLATE - caliper mount

2шт.

41

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8

24шт.

42

L79179

WASHER

- flat

24шт.

43

29-1712

NUT,3/4"-16, G8, Hvy

- heavy hex, 3/4 inch NF (Replaced 25-1712)

48шт.

44

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, hardened, special

48шт.

Выбрано товаров: 23
