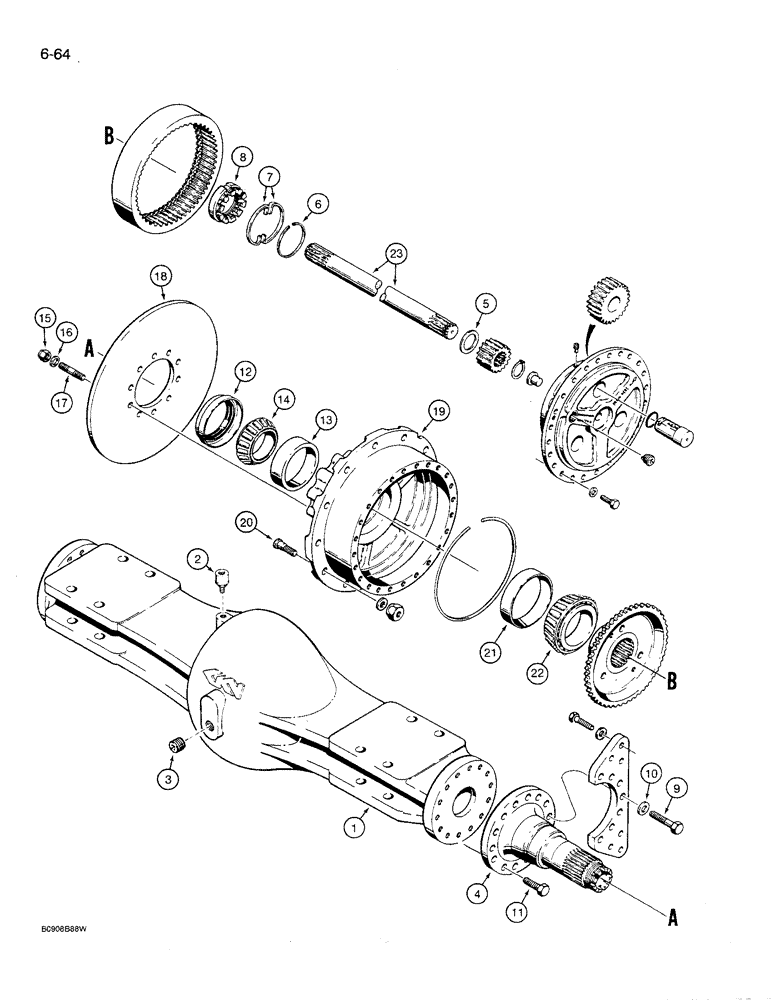

Запчасти Case 621 (6-64) - REAR AXLE HOUSING AND PLANETARY (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSEMBLY - rear, see Figure 6-58 for correct axle assembly

1шт.

REF

INSTRUCTION

AXLE ASSEMBLY - rear, with no-spin differential, if used, see Figure 6-58 for correct axle assembly

1шт.

1

S300017

HOUSING

- axle

1шт.

2

D74469

BREATHER

- axle

1шт.

Ref #2 - This breather has 1/8" N.P.T.F. Running change has been made to breather S301525 that has 1/2" B. S. P. T. 04/22/96

1шт.

3

K12362

PLUG

- housing

1шт.

4

S300021

SHAFT

SPINDLE - rear axle

2шт.

5

D77572

WASHER

- thrust, spindle

2шт.

6

D77571

VALVE SPRING

RING - spring

2шт.

7

D77570

RING

- retaining, spring

4шт.

8

D77568

LOCK NUT

- locking

2шт.

9

514-1203

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

- hex, self-locking, 20 - 2.5 x 80 mm, class 10.9

14шт.

10

D80556

WASHER

- flat

14шт.

11

514-1202

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9

- hex, self-locking, 20 - 2.5 x 55 mm, class 10.8

14шт.

12

S300019

OIL SEAL

- hub

2шт.

13

A7892

BEARING, CUP

CUP - bearing

2шт.

14

ST2040

TAPERED BEARING,3.375" ID x 5.376" OD x 1.2015"

BEARING - tapered roller

2шт.

15

D74505

NUT

- lock

20шт.

16

D74504

WASHER

- flat

20шт.

17

D74503

STUD

- hub

20шт.

18

S300020

BRAKE DISC

DISC - brake, L128312 and L128313 axles, prior to P.I.N JAK0022250

2шт.

18

D74461

DISC

- brake, L129566 and L129567 axles, P.I.N JAK0022250 and after

2шт.

19

D74450

HUB

- wheel

2шт.

20

D80560

STUD

BOLT - press in

24шт.

21

64371H

BEARING ASSY

CUP - bearing

2шт.

22

64370H

BEARING, ROLLER,101.6mm ID x 36.12mm W

BEARING - tapered roller

2шт.

23

D74465

SHAFT

- axle, right-hand, 39.7 inch (1009 mm) long

1шт.

23

D74466

SHAFT

- axle, left-hand, 42 inch (1067 mm) long

1шт.
